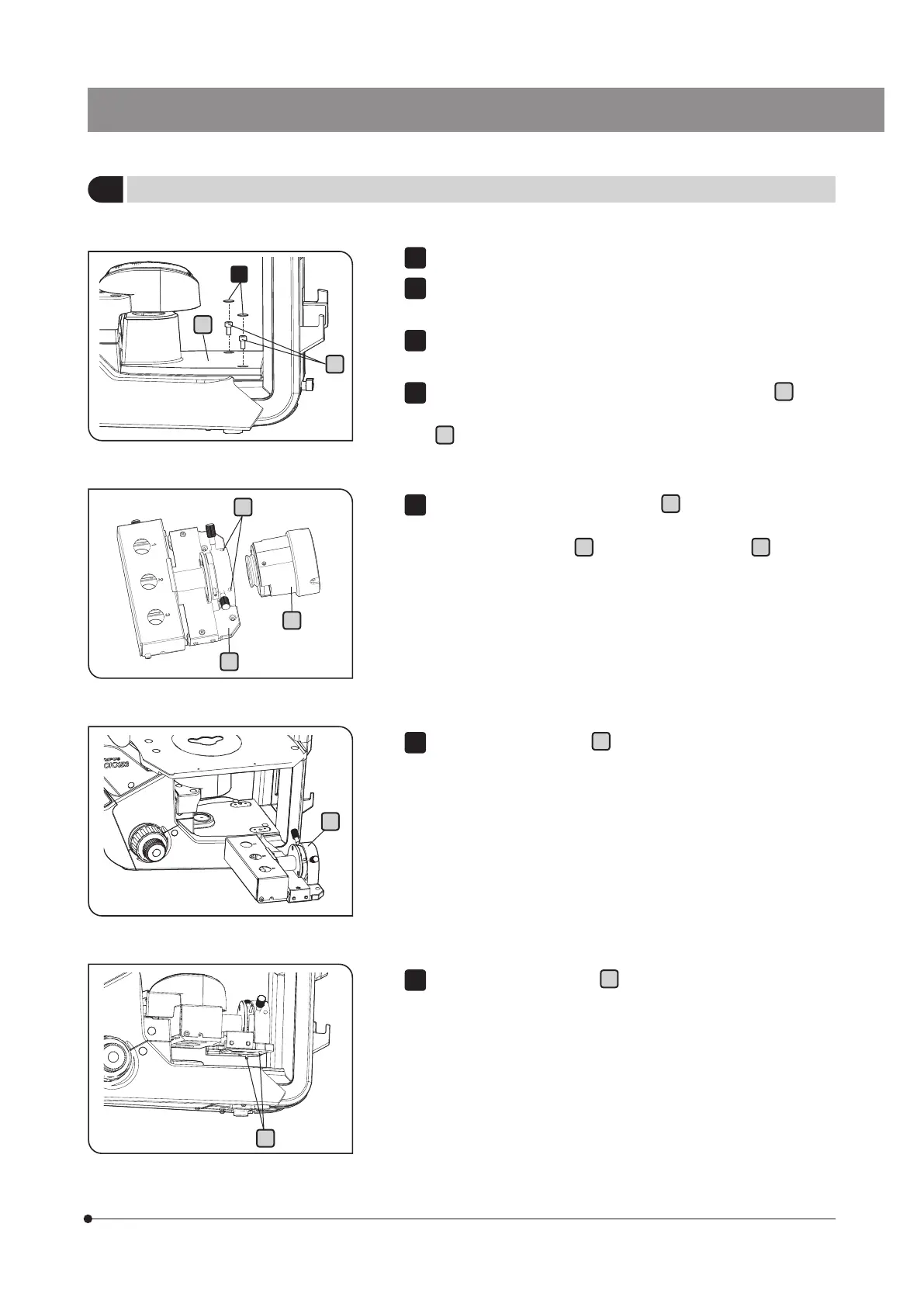

Attaching the fluorescence illuminator CKX3-RFA
Remove the objective from the revolving nosepiece.
Rotate the coarse focusing knob and place the revolving nosepiece
at the upper limit position.
Peel off the stickers (2 positions) from the dust cover surface of the
microscope frame CKX53SF.
Loosen the dust cover clamping screws (2 positions)
a
of the
microscope frame using the Allen wrench and remove the dust cover
b
.
1
2
3
4
Loosen the setting screws (2 positions)
c
of the illuminator using the
Allen wrench, and separate the fluorescence illuminator CKX3-RFA to
2 parts: frame side part
d
and light source side part
e
.
5
d
c
d
e
a
Insert the frame side part
d
under the stage from the side of the
microscope frame.
6
Insert the pins (2 positions)
f
at the bottom of the frame side part
into the holes of the microscope frame.
7
f
b
3
