3.3 Installation of equipment
31
CLV-190 INSTRUCTION MANUAL
Ch.3
4 For WM-NP1, WM-WP1, WM-DP1
Align the two front feet of the light source with
the anti-slip projections on the mobile shelf of
the mobile workstation.

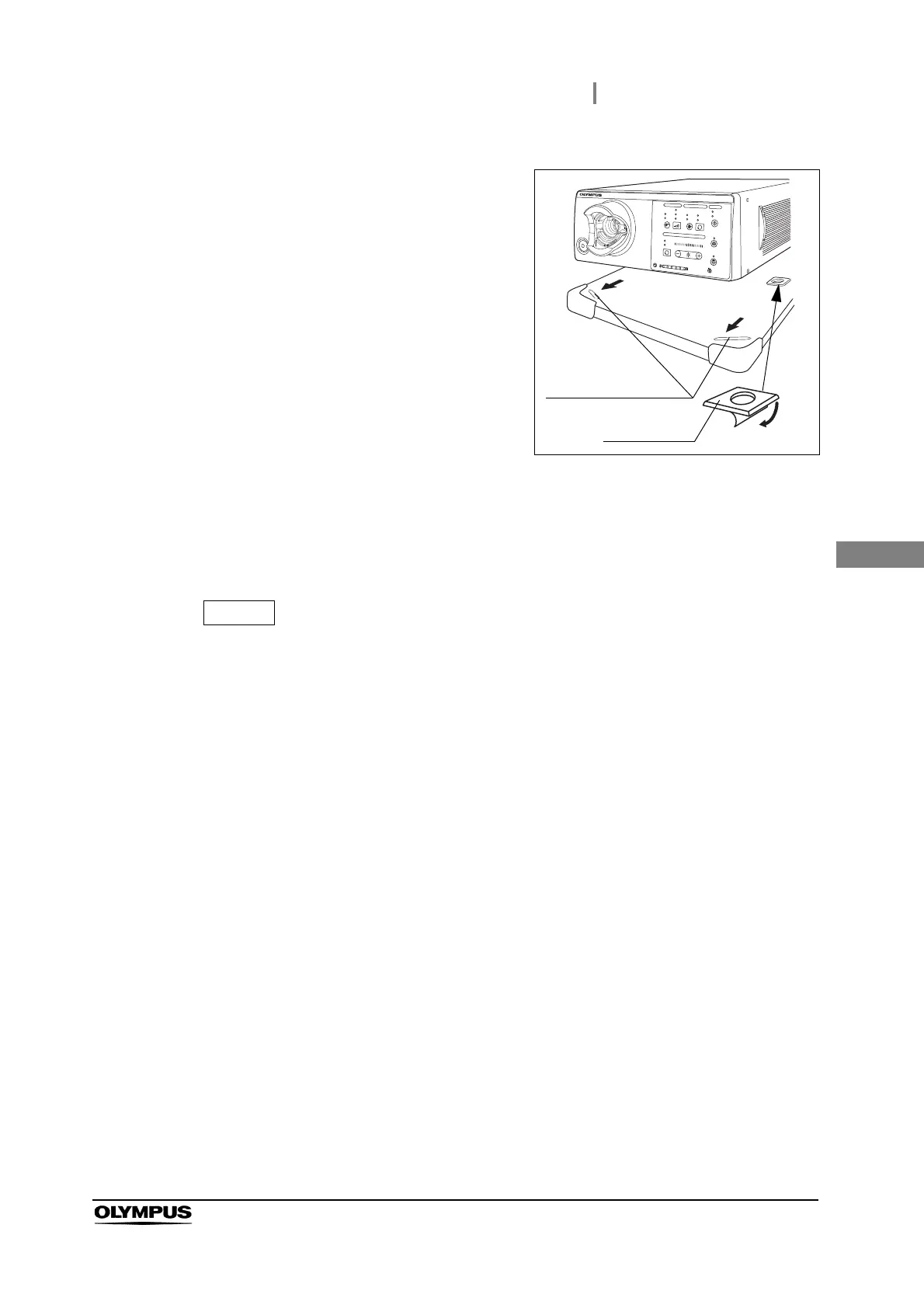

Figure 3.3
5 For WM-NP1, WM-WP1, WM-DP1
Peel the paper from the back of the two foot holders of the light source. Place the foot
holders to the two corresponding positions on the rear and attach them lightly. (See
Figure 3.3)
If the light source is placed on a mobile workstation, only two foot holders are
necessary.
6 Remove the light source from the mobile workstation and attach the foot holders
firmly.
7 Place the light source on the mobile shelf so that the rear feet fit into the foot holders.
Anti-slip projection
Foot holder
