3.6 Connection of the video system center
35
CLV-190 INSTRUCTION MANUAL
Ch.3
Tabl e 3.1
Figure 3.8
3.6 Connection of the video system center

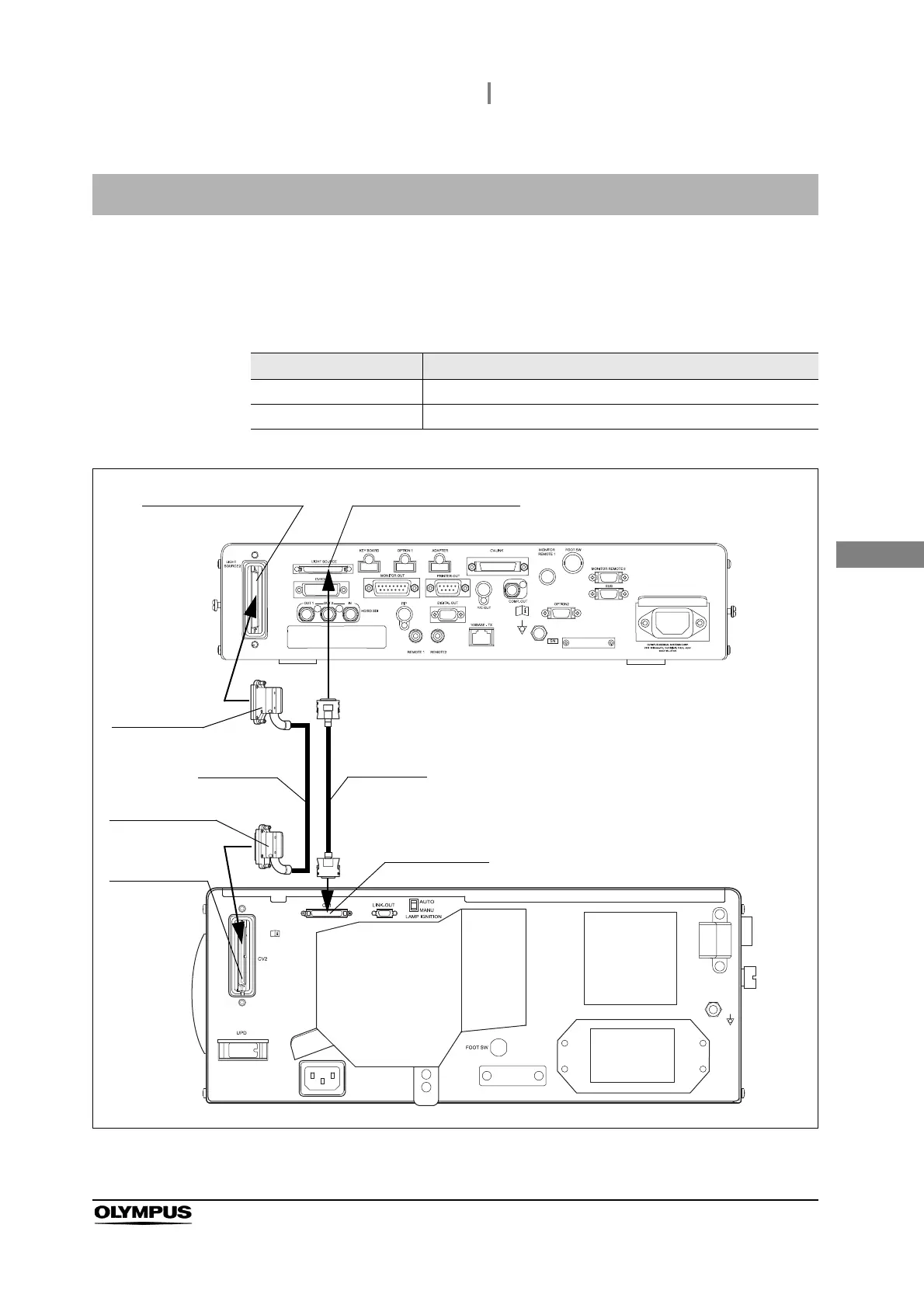

Connect the video system center (CV-190) to the light source using the cables listed
below.
Model Product name
MAJ-1933 Digital light source cable
MAJ-1941 Light source cable
CV-190
CLV
Light source 1 terminal
CV1 terminal
Light source 2 terminal
CV2 terminal
“to CV” label
“to CLV” label
MAJ-1941
MAJ-1933
