Visual observation with microscope

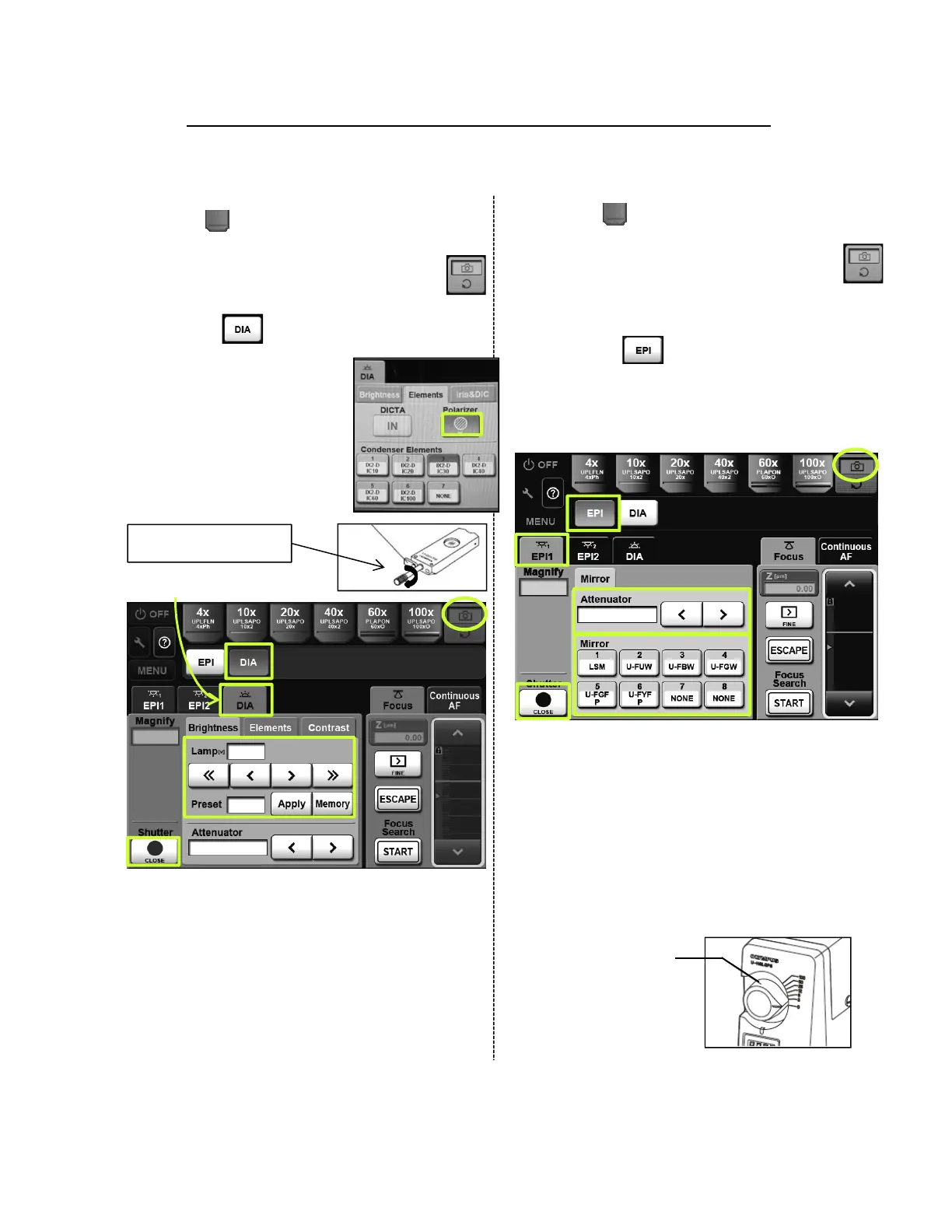

★Fluorescence observation
*Tap the button of the TPC to select
the objective for observation.
① Tap the light path selection button
of the touch panel controller.
(or select “Ocular” in [Ocular] Tool
Window. )
② Tap the button.
③ Tap the [EPI(or EPI1) tab.
④ Select the mirror unit suitable for the
fluorescent probe for observation.
⑤ Open the shutter of the reflected
illumination light on the touch panel
controller.
⑥ Select the ND filters to adjust the
brightness.
※Brightness can be adjusted by rotating
the light volume adjustment dial of
the light source.
Rotate the light volume
adjustment dial
⑦ Adjust the focus
using the focus
knob.
★Transmitted DIC observation
*Tap the button on the TPC to
select the objective for observation.
① Tap the light path selection button
of the touch panel controller.
② Tap the button.
③ Tap the [DIA] tab.
④ Tap the [Elements] tab
and check whether
the [Polarizer] is “IN”.
⑤ Insert the DIC prism
slider.
⑥ Open the shutter of the transmission
illumination light on the touch panel
controller.
⑦ If necessary, tap the [Brightness] tab
and adjust the brightness.
⑧ Adjust the focus and contrast.
④
①
②
⑤
④
③
⑥
3
①
②
⑦
③
⑥
Adjust the DIC contrast
by rotating the knob.
To Next Page
