XYZ Image Acquisition
*Before starting the following procedure, make
adjustments for XY imaging.
(refer to page 4-5.)

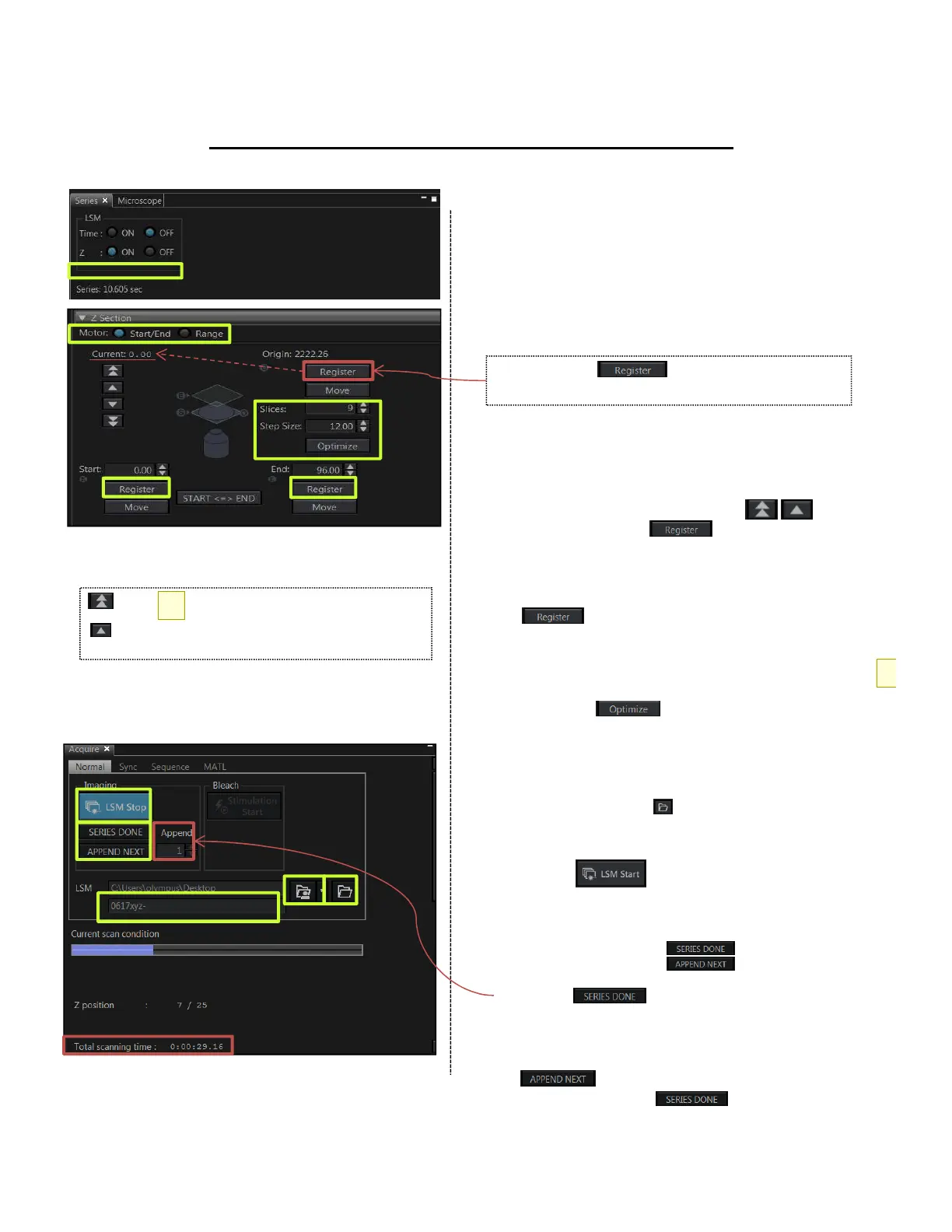

Setting Z series
① Select “ON” in [Z] on [Series] Tool Window.
② Select “Start/End” in [Motor] on [Z section].
Register start/end position
③ Change the Z position by rotating the
focusing knob or pressing the
button. Press the button in [Start]
at the Z position to start acquiring the
image.
④ Change the Z position and go on to press
the button in [End] at the Z position
to end acquiring the image.
⑤ Enter a value in [Slices] or [Step Size].
Setting one will set other automatically.
Pressing the button, both numerical
values “Slices” and “Step Size” is optimized.
Starting Acquisition
⑥ Select [Normal] tab in [Acquire] Tool
Window. Press the button to display the
dialog box, and select the folder to save the
images.
Press the button to start acquiring
the image.
Finishing Acquisition
⑧ Finishing acquisition, buttons blink.
Press the button to complete the
image acquisition. If you want to Additional
images under the same condition, enter the
number of additional acquisition and press
the button. After the image is
acquired, press the button.
①
③
⑤
②
④
⑥
⑦
⑧
6
:Each click shifts the position by the value
entered for Step Size
:Each click shifts the position by ½ the value
entered for Step Size.
Pressing the button, current
position is registered as origin.
