Multi Area Time lapse
using Map Image（１）
*Before starting the following
procedure, make adjustments for XY
imaging.

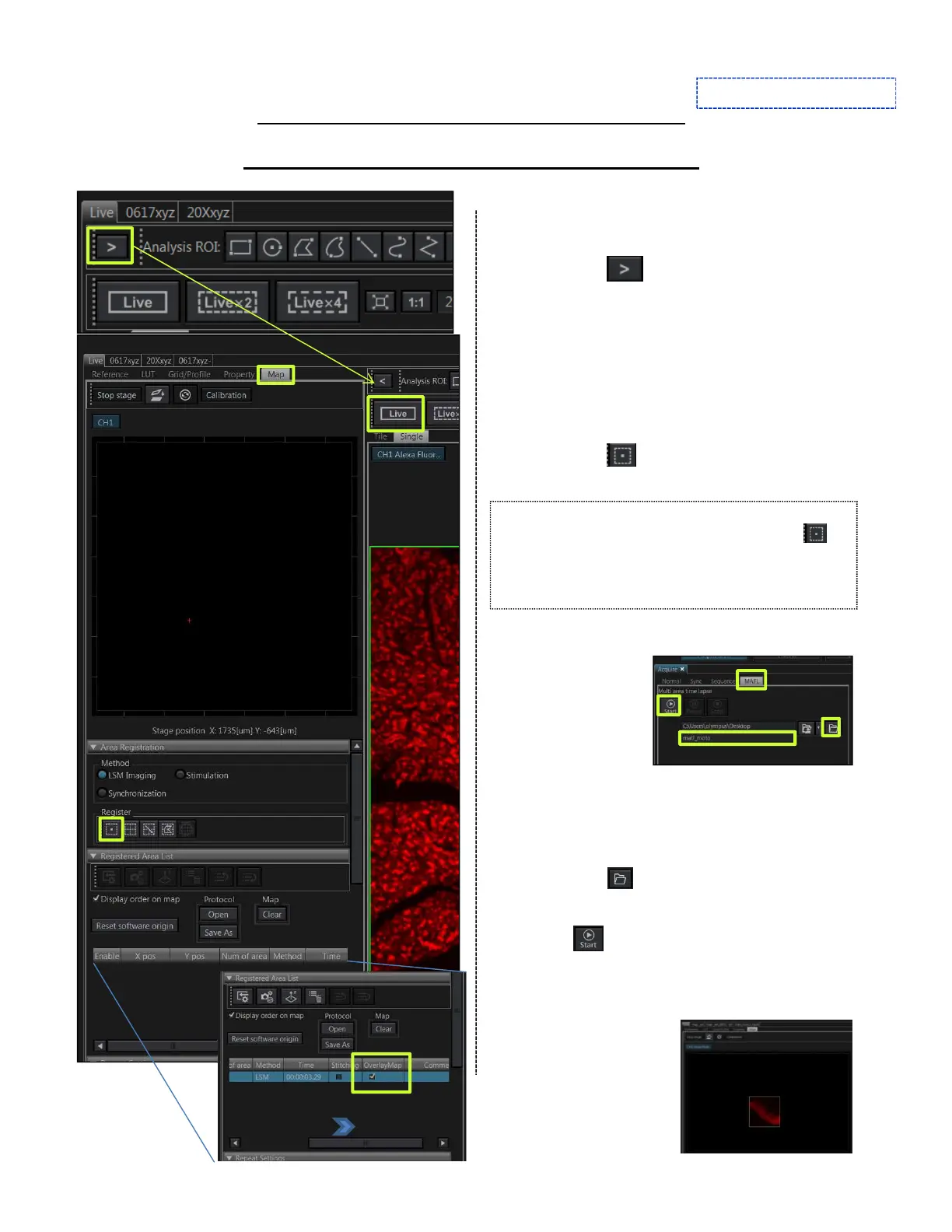

① Press the button in [Live
Window], the sub pane appears.
② Select [Map] tab.
Create the map
③ Bring the image into focus and
adjust acquiring parameters using
the low magnification objective lens.
④ Press the button to register the
position and acquiring parameters.
⑤ Scroll to the right in registered are
List and Ticking [OverlayMap].
Map image acquisition
⑥ Select [Acquire] Tool Window in
[Tool Window] menu and select
[MATL] tab.
③ Press the button to display the
dialog box, and select the folder to
save the images.
④ Press button to start acquiring
the image.
Finishing the acquisition, map image
is displayed in [Map] tab.
Attention
All parameters register by pressing the
button. When acquiring a map image, Check
[LSM] in [Series] Tool Window whether it is
selected “OFF” [Z] and [Time] .
①
②
③
④
右へスクロール
⑤
⑨
◆motorized stage◆
12
⑥
⑧
⑦
To Next Page
