Olympus i-SPEED 2 User Manual

Nomenclature & Functions
14
i--SPEED LT, i--SPEED 2
Sync Input: The camera’s frame rate may be determined by an
external signal source, typically another camera. In this case,
the camera would not only lock its frame rate to that of the other
camera, but the exact moment at which each frame is captured
would also be locked to the other camera (+/-- 25ns). In this
way, it is possible to have multiple cameras viewing one event
and taking images simultaneously. The input is TTL compatible
and requires an active high pulse, in which the rising edge
signifies the start of the integration period.
The camera constantly monitors this input and will notify the
user when an incoming sync is detected. When this occurs, the
camera will measure the speed of the incoming signal and offer
the user the opportunity of automatically configuring for
synchronised operation.

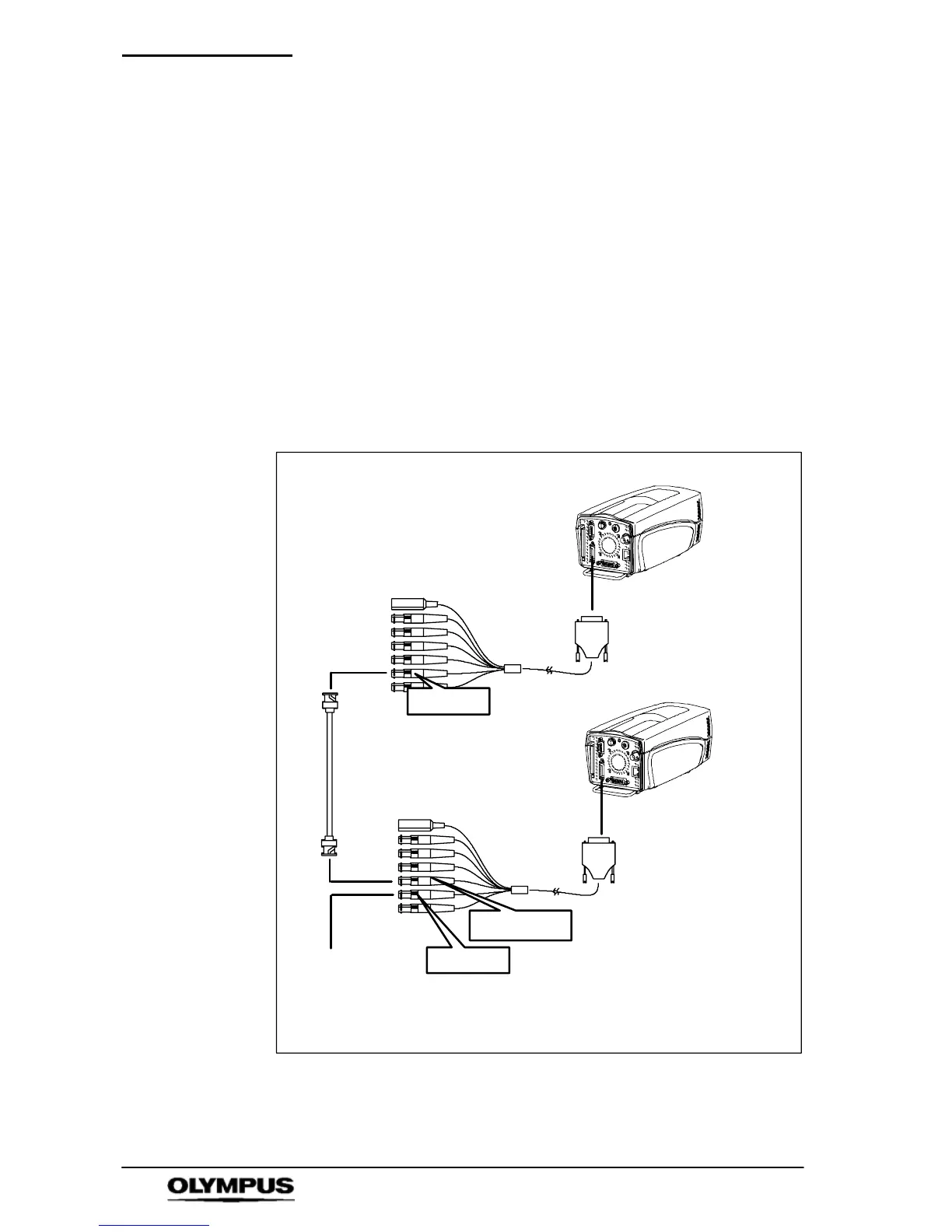

Camera 1
SYNC IN
SYNC OUT
SYNC IN
Camera 2
To:
Camera3or
Breakout box (i--SPEED 2 deluxe software) or
Not used
BNC (not supplied)
In addition to all
other connections
