Software reference (CDU) i--SPEED 2
83
i--SPEED LT, i--SPEED 2
6. Enter Calibration Menu
Access: Measure
' Measure Setup
' Measure Calibrate ' Enter Calibration
Controls: 1000 100 10 1 0.1 0.01 OK

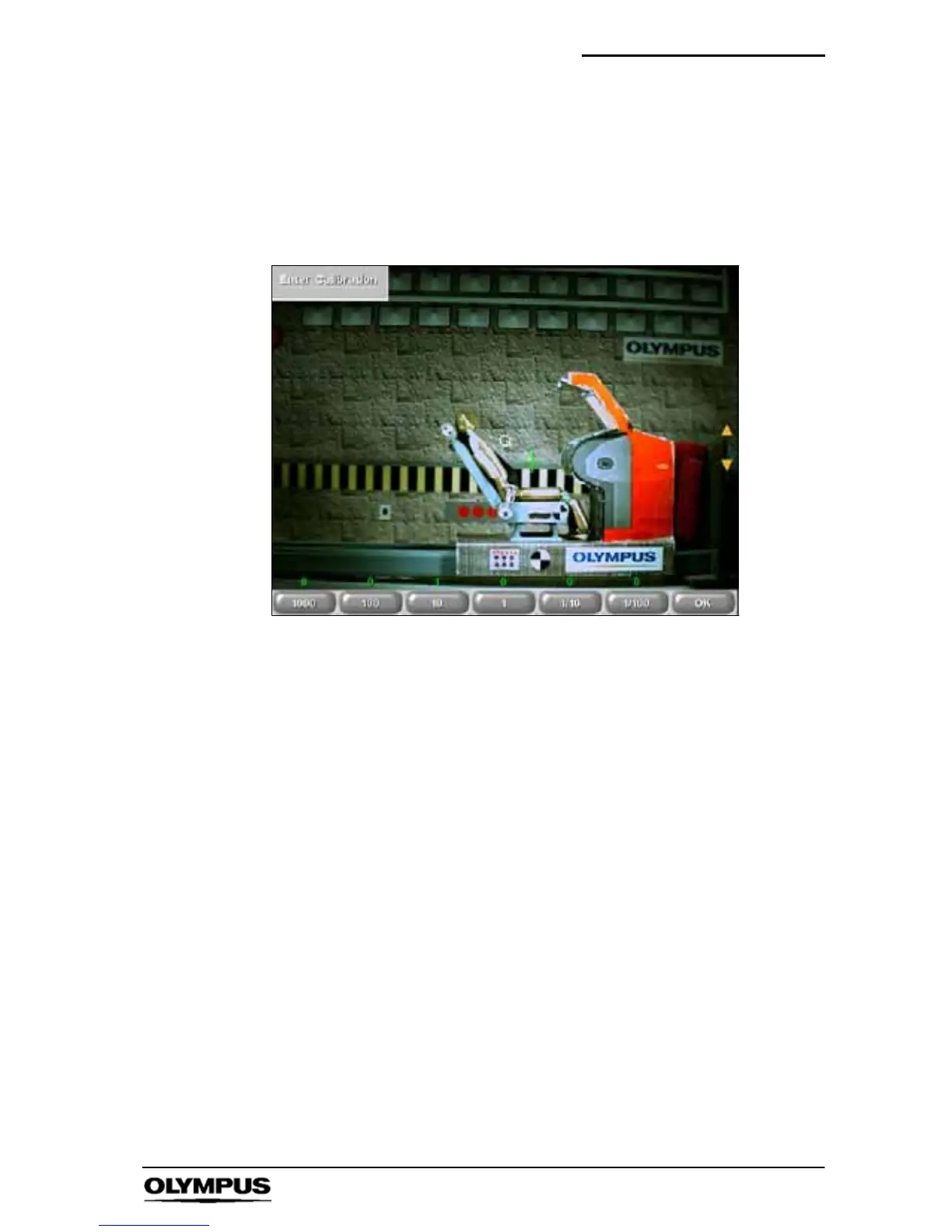

S The CDU will display the playback image
` Numerical Controls
In conjunction with the YBbuttons, these controls allow the entry
of the calibration value, which must be the accurately known
distance between the points just marked as “start” and “end”.
` OK Control
This control confirms the numerical entry just made and also
returns to the previous menu. This control is not available until
calibration value is non --zero.
To Next Page
