3 Mounting the scope unit
Connecting the scope unit

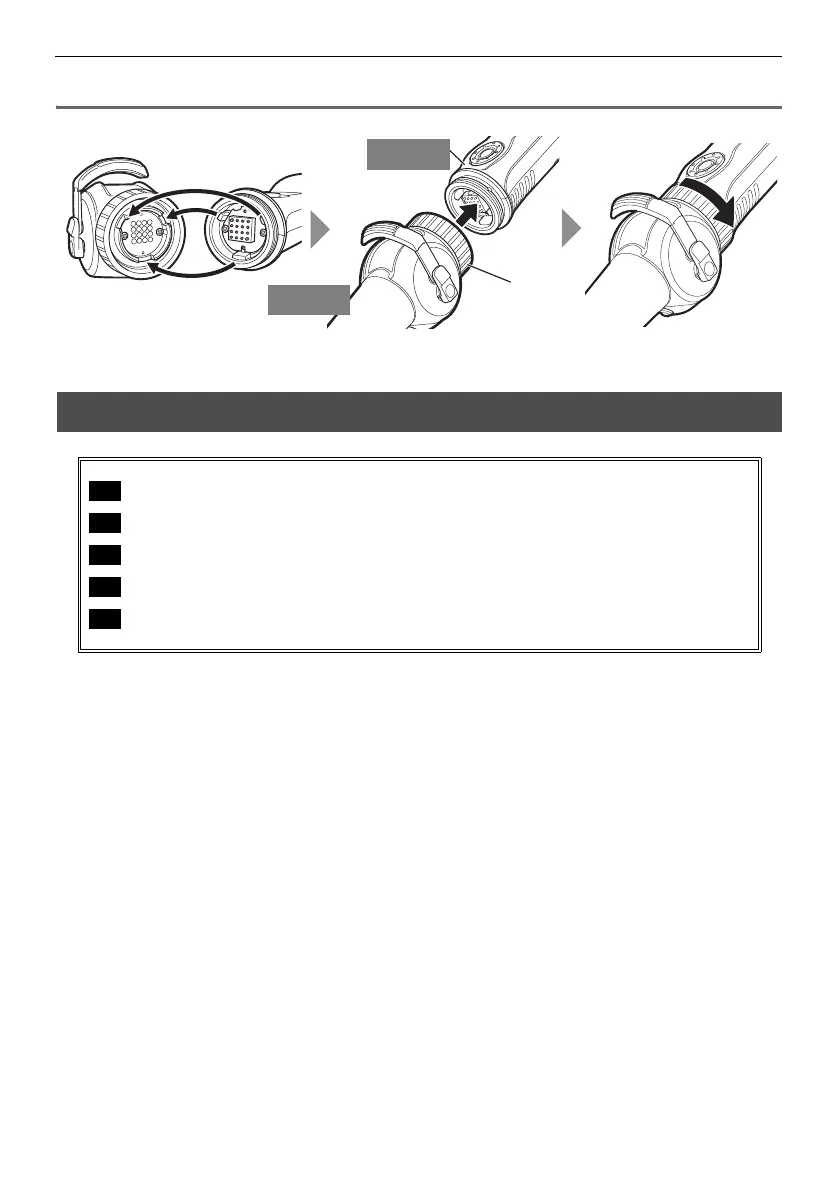

Align the notch on the angulation control unit with the protrusion on the button control unit to
connect them, and firmly tighten the fastening ring in the direction of the arrow as far it can go.
3.2 How to initialize the scope
Connect the AC adapter. (See P.17)
Turn on power. (See P.18)
Select the display language (initial settings). (See P.40)
Initialize the scope. (See P.15)
Do pre-operation operations. (See P.18)
Button
control unit
Fastening ring
Angulation
control unit
1
2
3
3
4
5
