2.7 Connection of the Endoscopic Ultrasound Center (EU-M30S)
23
2.7 Connection of the Endoscopic Ultrasound
Center (EU-M30S)

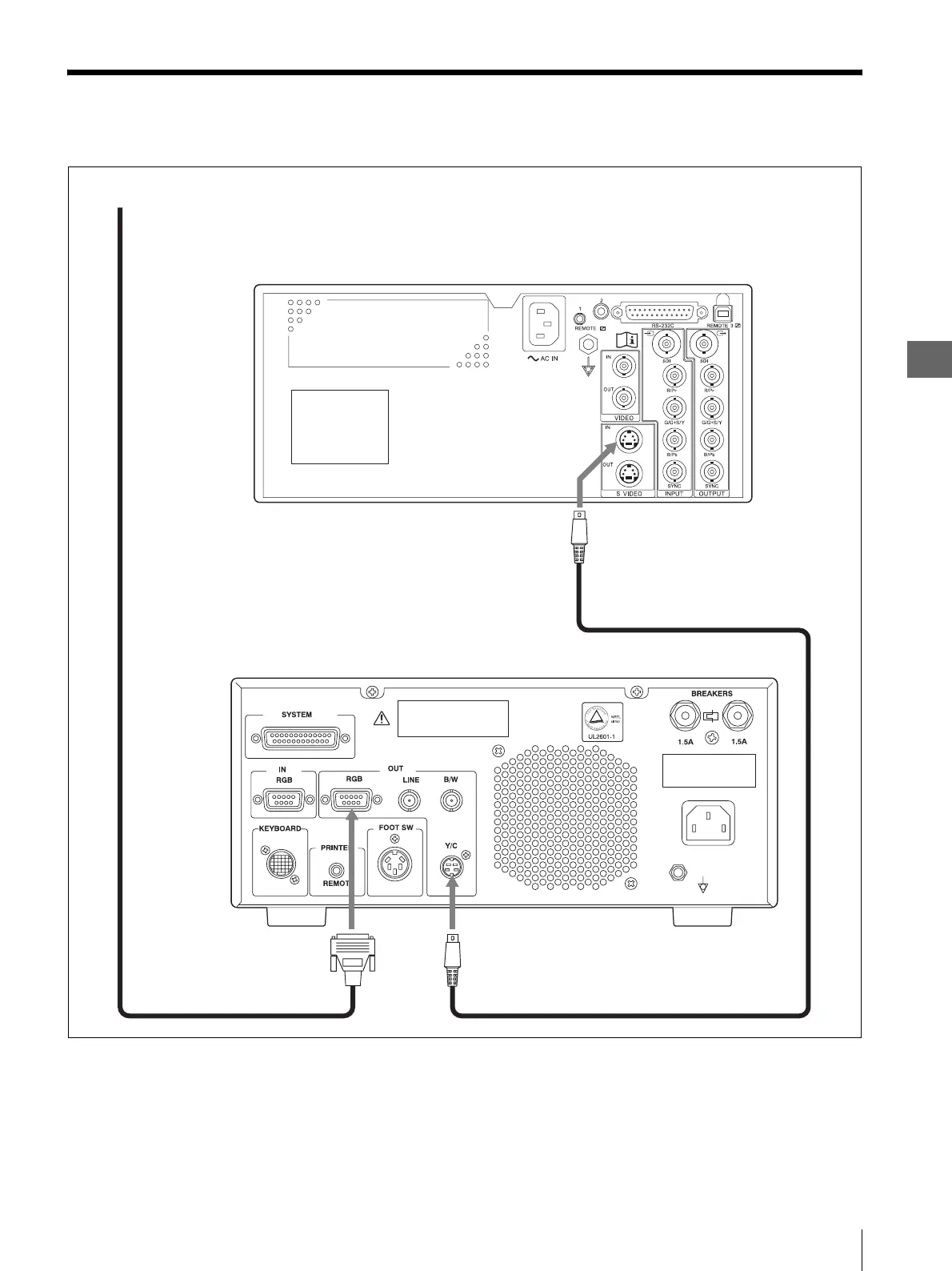

Figure 2.6
Color video printer (OEP-5)
Y/C OUT terminal
Y/C cable (MH-985)
To RGB, Y/C, or VIDEO input terminal of a monitor
S-VIDEO IN terminal
Endoscopic Ultrasound Center (EU-M30S)
RGB cable
RGB OUT terminal
