DPF20 Frequency, rate, total or period counter Instruction Manual

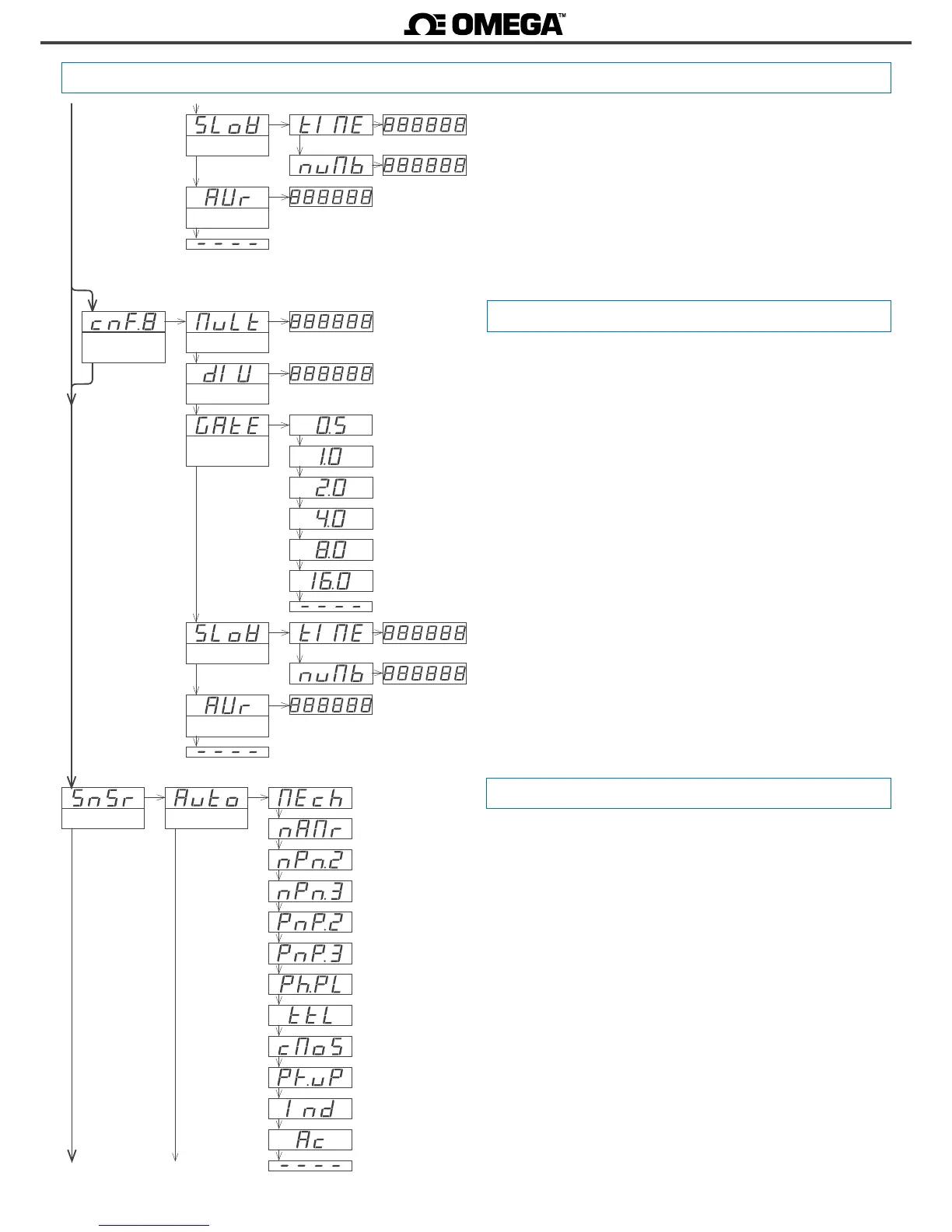

1.19 Conguraon menu (cont.)
Conguraon menu for mode ‘periodmeter’ (‘Prd.8’). Period mea-
sured is mulplied by the value of the ‘mulplier’ (‘MuLt’) register
and divided by the ‘divider’ (‘dIV’) register. Result is refreshed on the
display. Measure is updated at the rate dened on the ‘GATE’ regis-
t e r.
• assign the value for parameter ‘Mulplier’ (‘MuLt’) from 1 to
999999.
• assign the value for parameter ‘Divider’ (‘dIV’) from 1 to 999999.
• select the value for the ‘Time window’ (‘GAtE’). Available values
are : 0.5, 1.0, 2.0, 4.0, 8.0 or 16.0 seconds. The me window denes
the display refresh me. This parameter has no eect if the ‘SLOW’
mode is acve.
• for long periods acvate the ‘SLoW’ parameter conguring the
‘tIME’ parameter between 1 and 1000 seconds. Congure the ‘nuMb’
parameter between 1 and 32 impulses. See secon 1.15 for more in-
formaon on the ‘SLoW’ mode.
• in case of unstable signals, acvate the ‘average lter’ (‘AVr’) func-
on. It acvates a recursive lter on the reading. the lter is stronger
for higher values, from 0.0 to 99.9.
1.19.9 Conguraon for ‘Prd.8’
• for slow frequencies acvate the ‘SLoW’ parameter conguring the
‘tIME’ parameter between 1 and 1000 seconds. Congure the ‘nuMb’
parameter between 1 and 32 impulses. See secon 1.15 for more in-
formaon on the ‘SLoW’ mode.
• in case of unstable signals, acvate the ‘average lter’ (‘AVr’) func-
on. It acvates a recursive lter on the reading. the lter is stronger
for higher values, from 0.0 to 99.9.
1.19.10 Sensor conguraon
The sensor conguraon menu (‘SnSr’) provides conguraon for
the input secon of the instrument, the excitaon voltage and the
trigger level, for accurate detecon of the impulses.
• ‘Automac conguraon’ (‘Auto’) - if a standard sensor is used,
select one of the sensors provided at the ‘Auto’ menu list. The instru-
ment will automacally congure the parameters according to Table
2 (see secon 1.8). If this conguraon does not detect impulses,
manually modify the values for the parameters indicated below.
Mulplier
1 to 999999
Divider
1 to 999999
Conf.
Periodmeter
Mulplier
Divider
Time window
Seconds
Sensor
NPN 2 wire
Mechanical contact
Namur
Automac conf.
NPN 3 wire
PNP 2 wire
PNP 3 wire
Push pull
TTL
CMOS
Pick-up
Inducve
Vac <30 V
‘SLOW’ mode
Average lter
Filter strength
(0 = disabled)
Max. waing me
Number of pulses
‘SLOW’ mode
Average lter
Filter strength
(0 = disabled)
Max. waing me
Number of pulses
