Omega DPF20 Series User Manual

19
DPF20 Frequency, rate, total or period counter Instruction Manual
Mulplier
1 to 999999
Divider
1 to 999999
Seconds
Conf. ratemeter
quadrature
Mulplier
Divider
Time window
Mulplier
1 to 999999
Divider
1 to 999999
Conf. ratemeter
Mulplier
Divider
Time window
Seconds
Edges
1 imp. per cycle
2 imp. per cycle
4 imp. per cycle

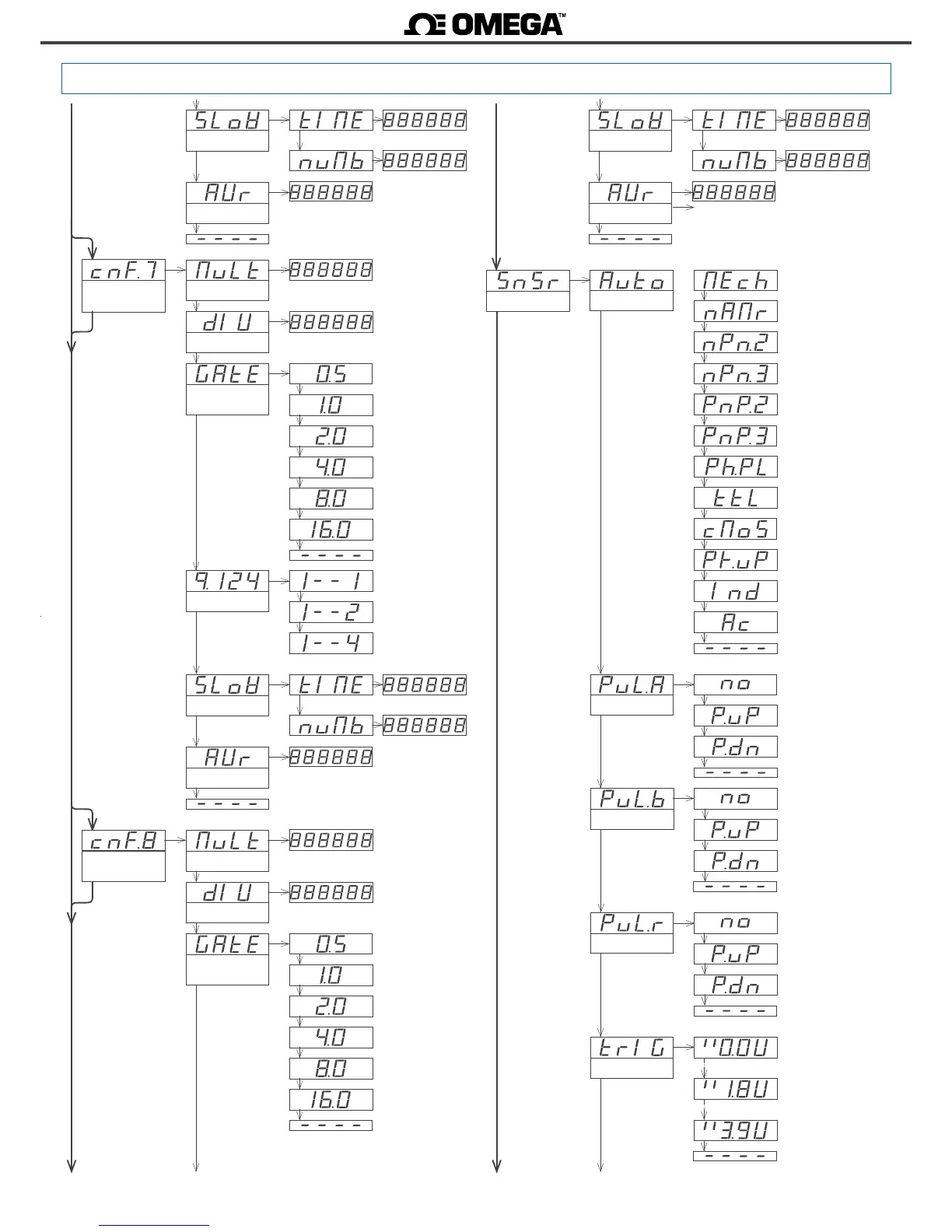

1.20 Full conguraon menu (cont.)
Sensor
Automac conf.
Trigger level
Trigger level (from
0.0 Vdc a 3.9 Vdc).
See secon 1.15
for ‘Trigger Sense’
ulity
Pull-down
No pull resistor
Pull-up
Pulls on reset
Pulls on channel B
Pull-down
No pull resistor
Pull-up
Pull-down
No pull resistor
Pull-up
Pulls on channel A
NPN 2 wire
Mechanical contact
Namur
NPN 3 wire
PNP 2 wire
PNP 3 wire
Push pull
TTL
CMOS
Pick-up
Inducve
Vac <30 V
‘SLOW’ mode
Average lter
Filter strength
(0 = disabled)
Max. waing me
Number of pulses
‘SLOW’ mode
Average lter
Filter strength
(0 = disabled)
Max. waing me
Number of pulses
‘SLOW’ mode
Average lter
Filter strength
(0 = disabled)
Max. waing me
Number of pulses
