Connections and interfaces
19
Single DANEO 400 with explicit synchronization
To time stamp the captured data with accurate absolute time, DANEO 400 needs to be time
synchronized, that is connected to a PTP clock. The following scenarios can also be part of a
measurement system with multiple DANEO 400 devices.
CO07 – Time synchronized capturing using an external tap

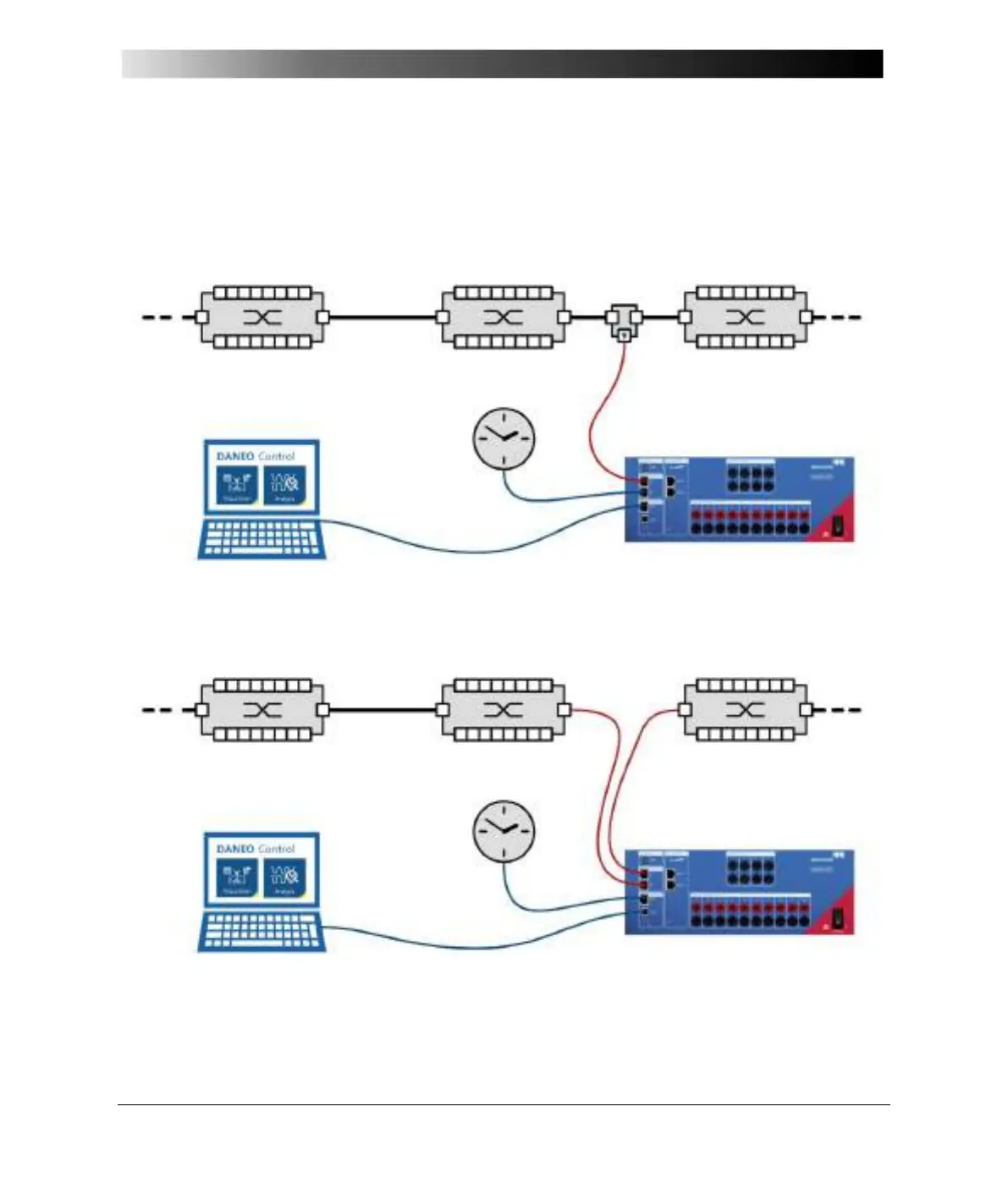

Figure 9: CO07 – Port A gets all traffic from the trunk link delivered by an external tap. Port B establishes a
point-to-point connection to a PTP clock for time synchronization.
CO08 – Time synchronized capturing using tap mode
Figure 10: CO08 – The Ethernet ports A and B are configured as a tap. The ETH port is used to connect to the
PTP clock. The control is performed via USB.
