OMICRON 11
Hardware overview
3 Hardware overview

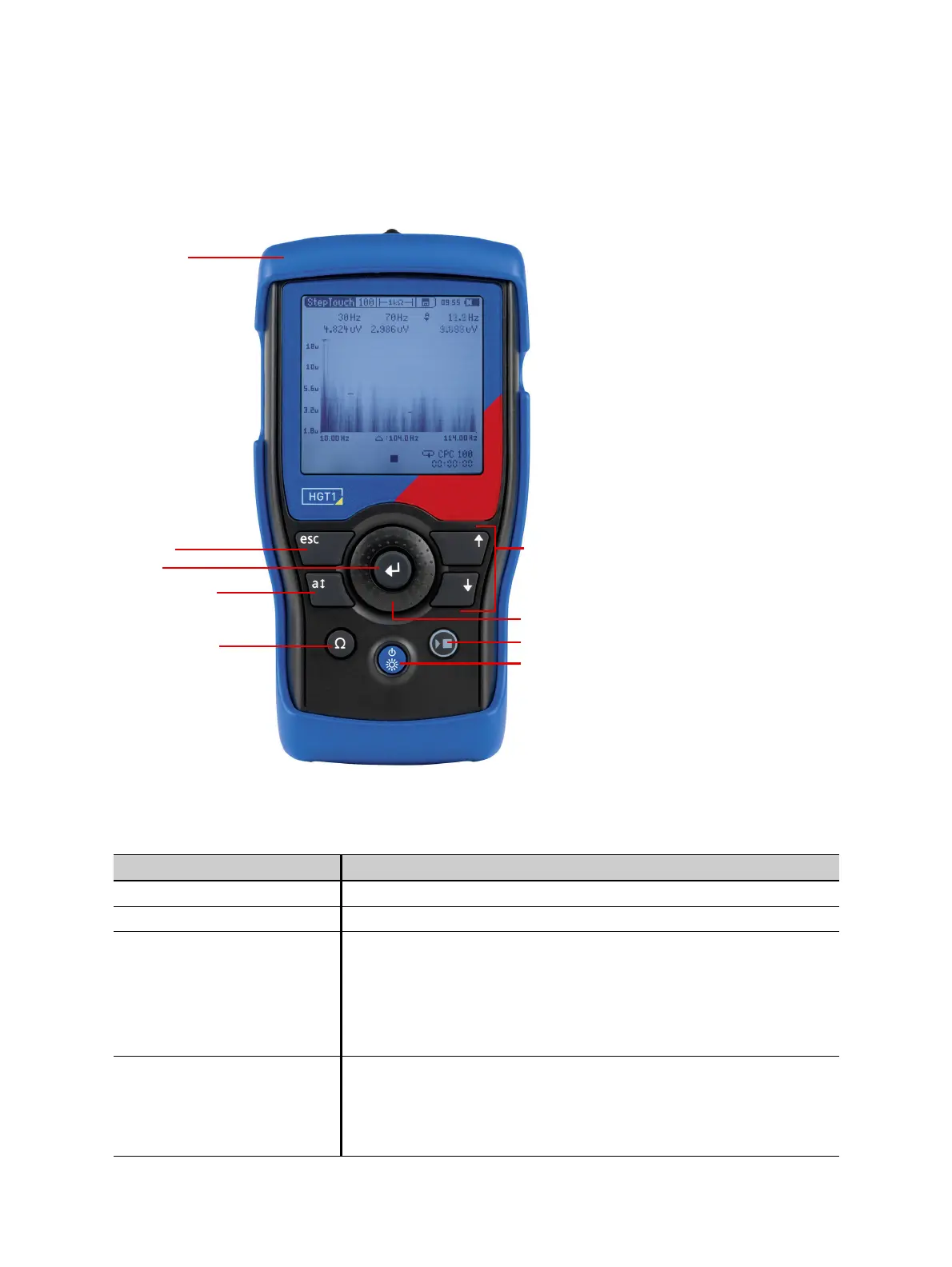

Figure 3-1: HGT1 front view
Table 3-1: HGT1 buttons
Button Description
Escape Cancel an action or place the cursor on top of the screen
Auto-amplitude Adapt the voltage range according to the measured voltage
Input impedance selection Switch between input impedances of the HGT1
Options:
•1kΩ
• 1 kΩ + 1 kΩ voltage divider
• High impedance
Start/stop measurement Press to start/stop a measurement
• Green LED: measurement is running
• Orange LED: measurement is stopped and Save Dialog is open
(see 6 "Recording and saving data" on page 21)
Navigation buttons
Start/stop measurement
Power/backlight
Input impedance
selection
Auto-amplitude
Escape
Enter
Navigation wheel
Removable
protective cover
