OMICRON 37
Ground impedance measurements with PTM
9 Ground impedance measurements with
PTM
1. Follow the instructions in chapter 3 "Connecting the CP CU1 to a power line" of the CP CU1 User
Manual in order to connect the CP CU1 to the power line under test.
2. If criterion 3 is met, establish the measurement setup as shown in Figure 9-1 below.

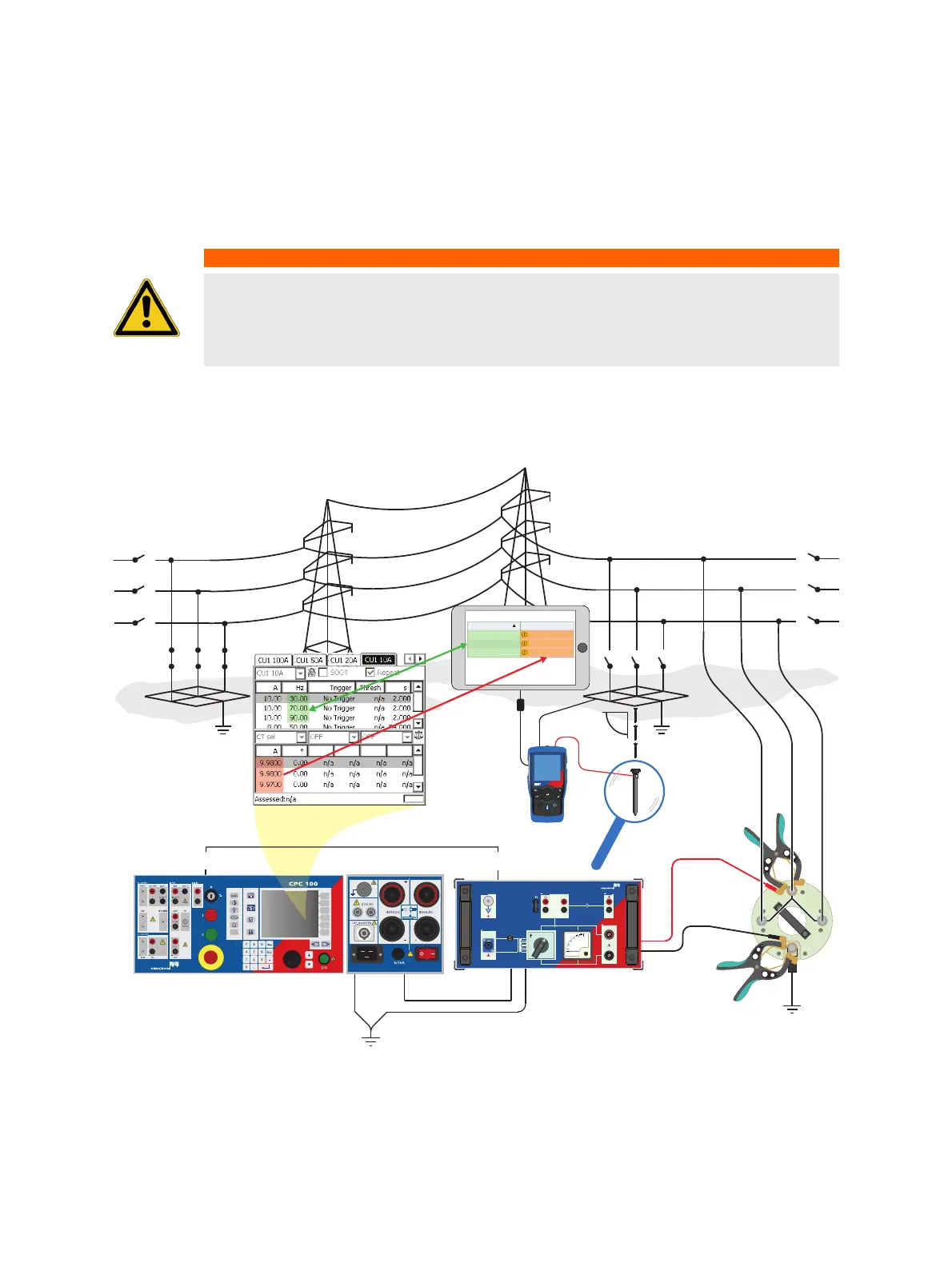

Figure 9-1: Ground impedance measurement setup when using PTM on a tablet
WARNING
Death or severe injury caused by high voltage or current possible
► Use a grounding set to ground the power line at the near end whenever you handle
the measurement setup inside the danger zone (for example when changing
connections at the CP GB1 between measurement loops).
90°
I AC
I AC
BOOSTER
V
200
400
600
20 A 50 A
10 A
100
A
CPC 100
GROUND CPC 100 CP GB1
CP GB1
30V : 600V
2.5A : 100A
BOOSTER
I AC V1 AC V SENSE
I OUT
C
P
C
U1
CP CU1
CP GB1
I OUT
HGT1
a
esc
Ω
Frequency Current
30.00 Hz
70.00 Hz
90.00 Hz
A
A
A
z
7
z
Hz
