OMICRON 21
Step and touch voltage meter
• Manual mode: Click the frequency and move the cursor using the navigation wheel. In this mode, the
corresponding voltage is displayed.
► In order to change the frequency, mark the frequency on the right side of the screen and press .
► Change the value using the navigation wheel.
You can now change the zoom on the frequency axis by holding and turning the navigation wheel.

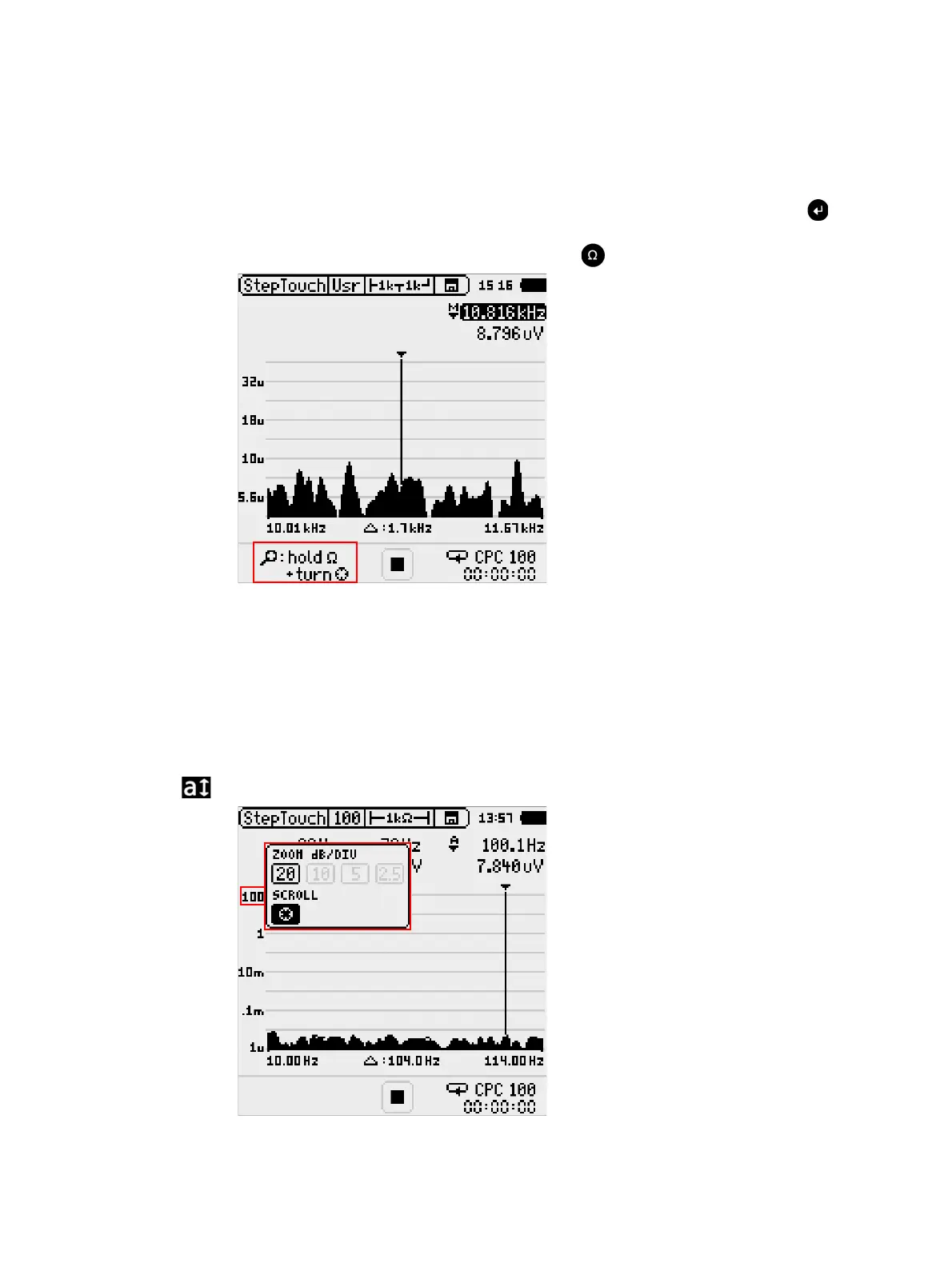

Figure 6-3: StepTouch view with frequency zoom
Note: The zoom is available in both the Manual and the Automatic mode.
6.4 Voltage axis
► To activate the amplitude zoom, click the top value of the voltage axis.
► Choose the zoom mode (20, 10, 5 or 2.5 dB/div) and adjust the axis using the navigation wheel.
► Press to reset the zoom.
Figure 6-4: Amplitude zoom in the StepTouch view
