OMICRON 37
MPD 800 measurement system
3. Connect the MPD 800 acquisition unit to MCU2 using fiber-optic cables.
Note: Use either FO1 or FO2 connector for the connection to MCU2. FO3 connector plugs are color-
coded. It is used for the connection to an additional MPD 600 acquisition unit.
Note: The delivered fiber-optic cable has a push-pull locking mechanism. To connect the fiber-optic
cable, hold the MPD 800 acquisition unit in one hand and insert the fiber-optic plug with the guide rail
on the top into the socket and push it until the mechanism is locked in place with a click. To disconnect
the fiber-optic cable, pull the front ring of the plug back and remove the whole plug.

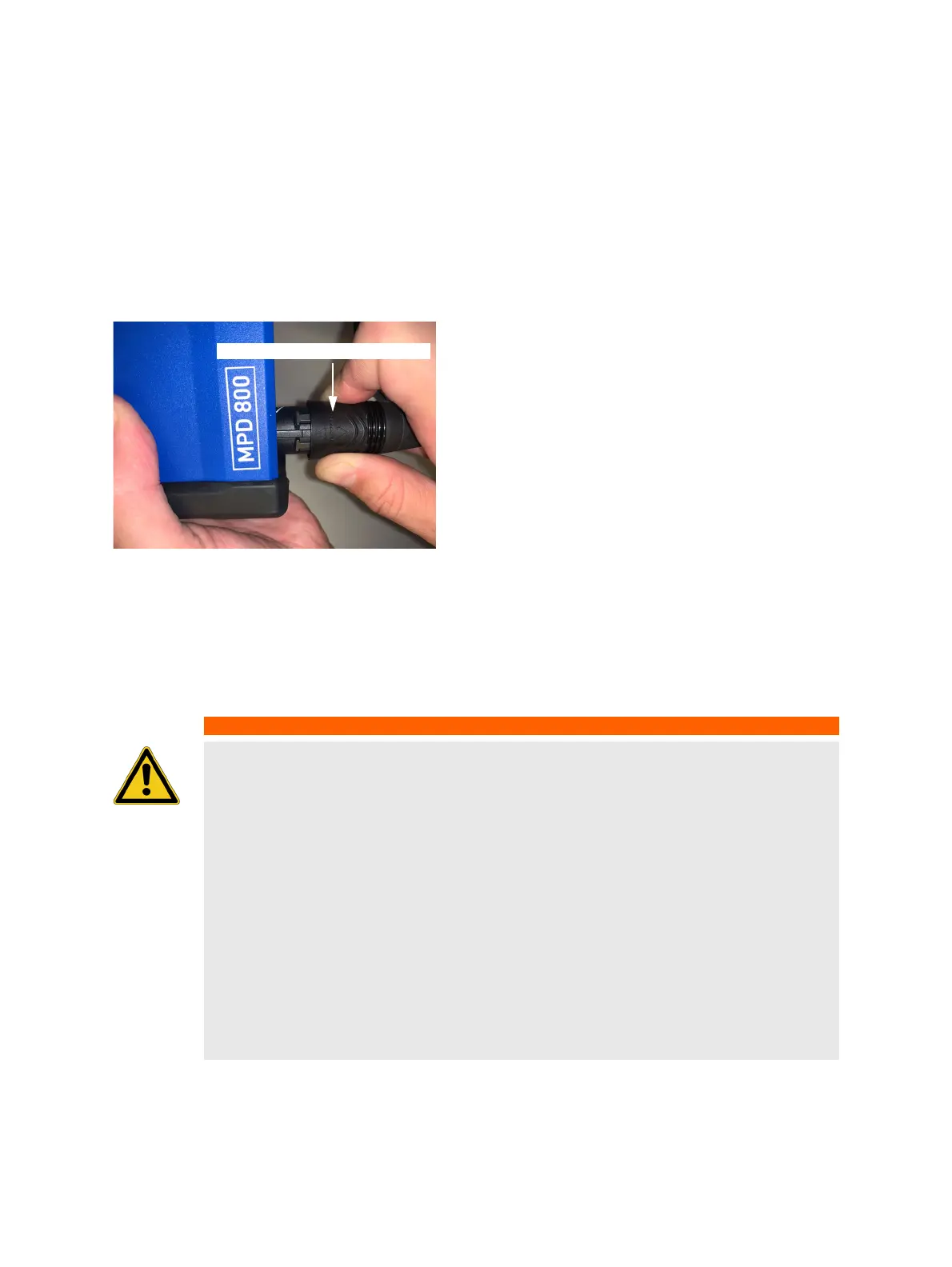

Figure 2-20: Disconnection of the fiber-optic cable
4. Connect RBP1 to the MPD 800 acquisition unit using the battery cable. The red LED at the MPD 800
acquisition unit starts flashing, indicating that the acquisition unit is ready for operation.
Note: Position the MPD 800/RBP1 units on insulating ground to ensure maximum sturdiness. Make
sure that RBP1 is always placed on the top of the MPD 800 acquisition unit.
5. Connect CPL1 or CPL2 to the MPD 800 acquisition unit. Use two short BNC cables and connect the
PD and AC outputs of CPL1 to the PD and AC inputs of the MPD 800 acquisition unit.
WARNING
Death or severe injury caused by fire and burns possible
RBP1 is a rechargeable lithium-ion battery pack.
► Do not drop or crush, do not short circuit, do not open, and do not expose the battery
to high temperatures.
► Do not immerse the battery in any liquids.
► Do not charge the battery in flammable environment.
► Do not charge it below 0 ºC/32 ºF and above 40 ºC/104 ºF and do not operate it below
–20 ºC/–4 ºF and above 55 ºC/131 ºF
► Never charge the battery near flammable objects.
► Do not deep discharge the battery and recharge it regularly during storage.
► Dispose of the battery properly, it may explode if damaged or disposed of in fire.
► Read this User Manual before charging the battery and use the specified charger only.
Follow the local ordinances and/or regulations for usage of lithium batteries.
Pulling back the front ring of the plug
