MX2 Quick Start Guide 9
INSTALLATION

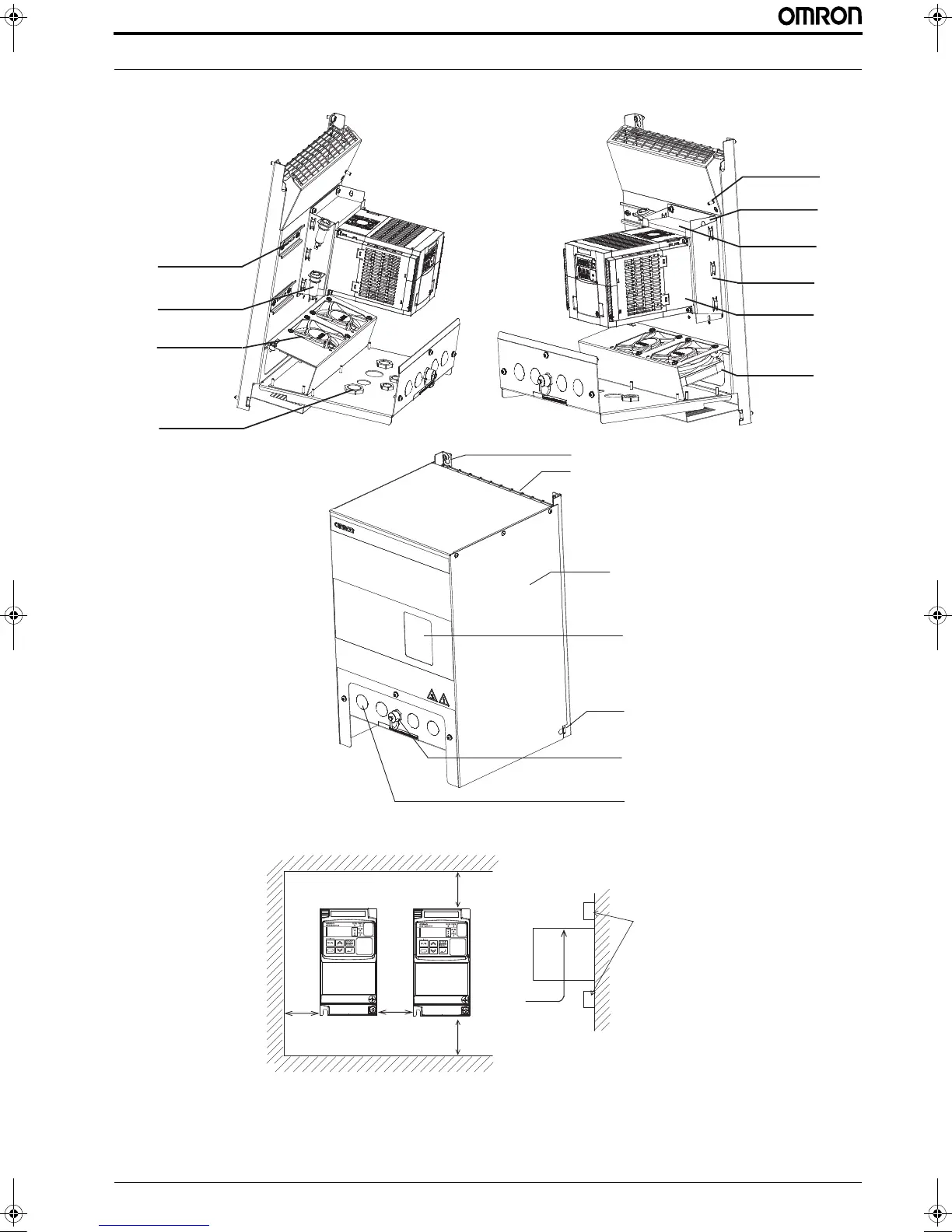

2.3 Installation Environment clearance
Side by side installation is possible but ambient temperature should not exceed 40ºC and for some cases carrier frequency and
output current should be derated. Please refer to MX2 user’s manuals for details.
DIN rail for
mounting options
Fuse for
cooling fan
Cooling fan
Wiring acces hole
Chassis ground of
mounting plate
Chassis ground of
EMC filter
Power input to
EMC filter
Bracket with
EMC filter
MX2 inverter
Dust filter
Mounting plate
Air outlet
Front cover
Window for MX2
inverter display
Lock for
front cover
USB connector
(mini-B)
Panel hole for accessory
Air flow
100 mm or more
50 mm or more
Inverter
Wall
Provide sufficient
space so that the top
and bottom wiring
ducts, etc. will not
obstruct the flows of
cooling air.
100 mm or more
50 mm or more
