4 Maintenance and Inspection
4-2 Replacing the battery

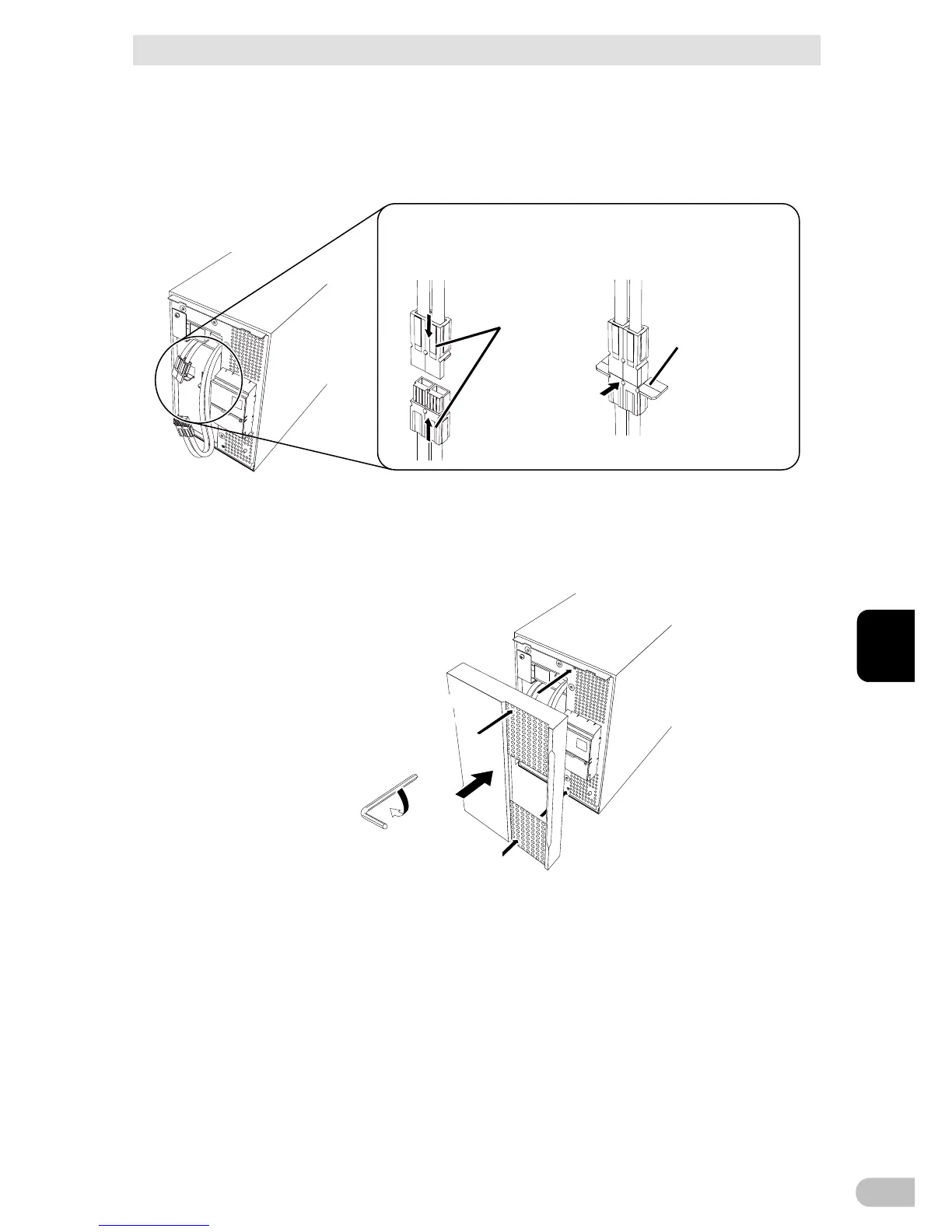

7. Insert the battery connector until it is locked. (1
Install the battery cable in the cable holder. (2
Note: You may hear a “pop” sound when you connect the battery if it is replaced after the unit’s
operation is stopped, but this sound is not abnormal.
1 2
Enlarged view of the connector
Insert the con-
nector’s groove
into the holder
Connect by
holding here
8. Attach the front panel to the unit. (1
Use a hex screwdriver or wrench to securely tighten (clockwise) the 2 screws at the top
of the front panel. (2
Tighten the 2 screws
with hex screwdriver
or wrench
2
1
Attach
the front panel
Battery replacement is now complete.
