4 Maintenance and inspection
4-4 Replacing the battery
BU5002R/BU3002R/BU3002RH
103
4
2.

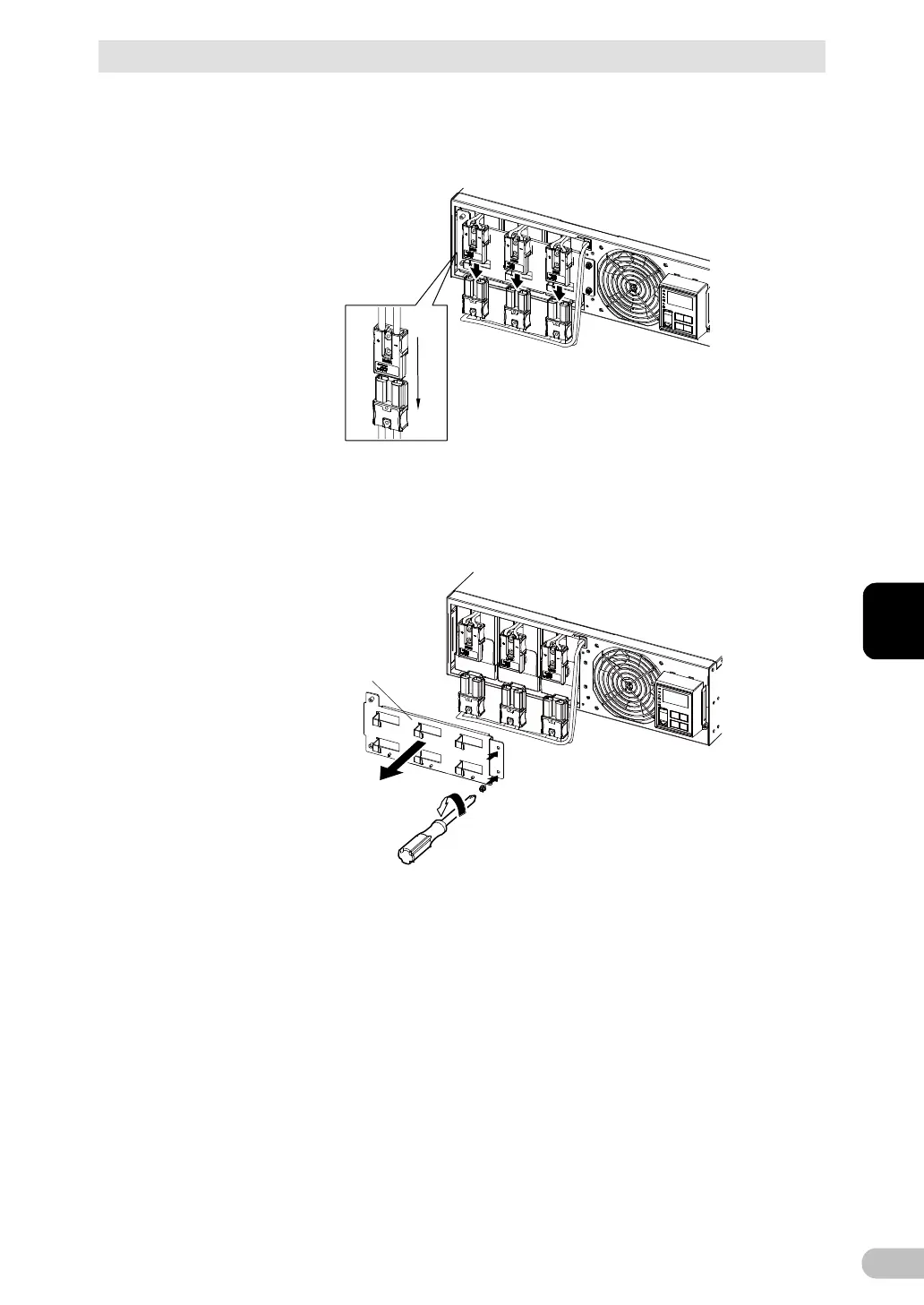

Press the clip that locks the battery connector (), and pull off the connector
while holding the battery connector ().


3.
Remove the 2 screws that are fastening the battery cover ().
Press the battery cover gently to the right side, then pull forward to remove the
cover ().
Battery cover


