Omron BU5002R - Fan Replacement Procedure

4 Maintenance and inspection
4-5 Replacing the fan
BU5002R/BU3002R/BU3002RH
109
4

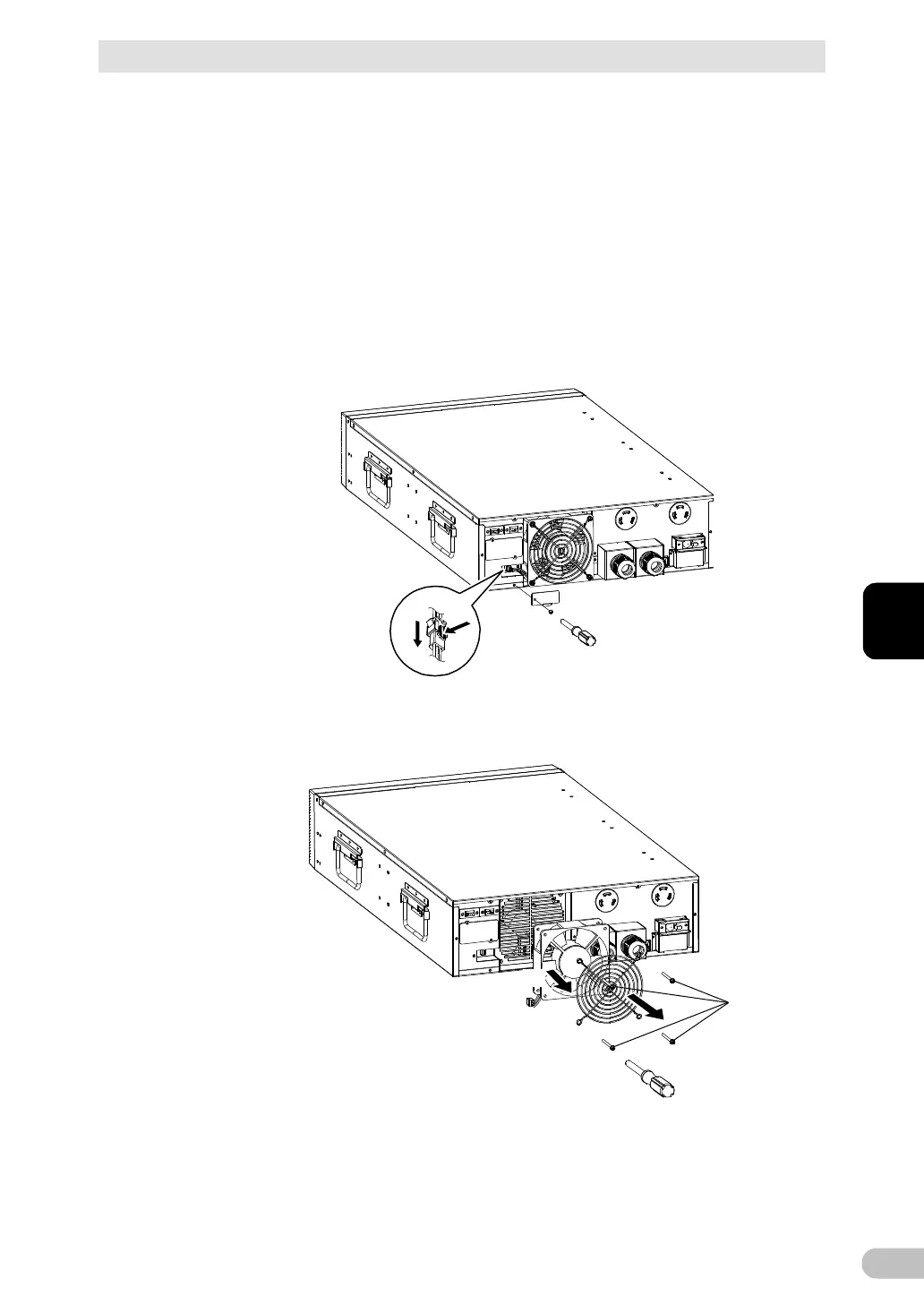

4-5-1 Fan replacement procedure
* Do not start the replacement operation until you have checked that the power to the UPS
is OFF, and that the fan has stopped.
<BU5002R>
Replacement fan: BUF5002R
1.
Remove the screw fixing the cover of the fan connector using a Phillips
screwdriver () and remove the cover of the fan connector. ()
While pressing the tab of the fan connector (), pull out the connector. ()




2.
Remove the 4 screws fixing the fan using a Phillips screwdriver. ()
Remove the fan guard ()and pull out the fan. ()



