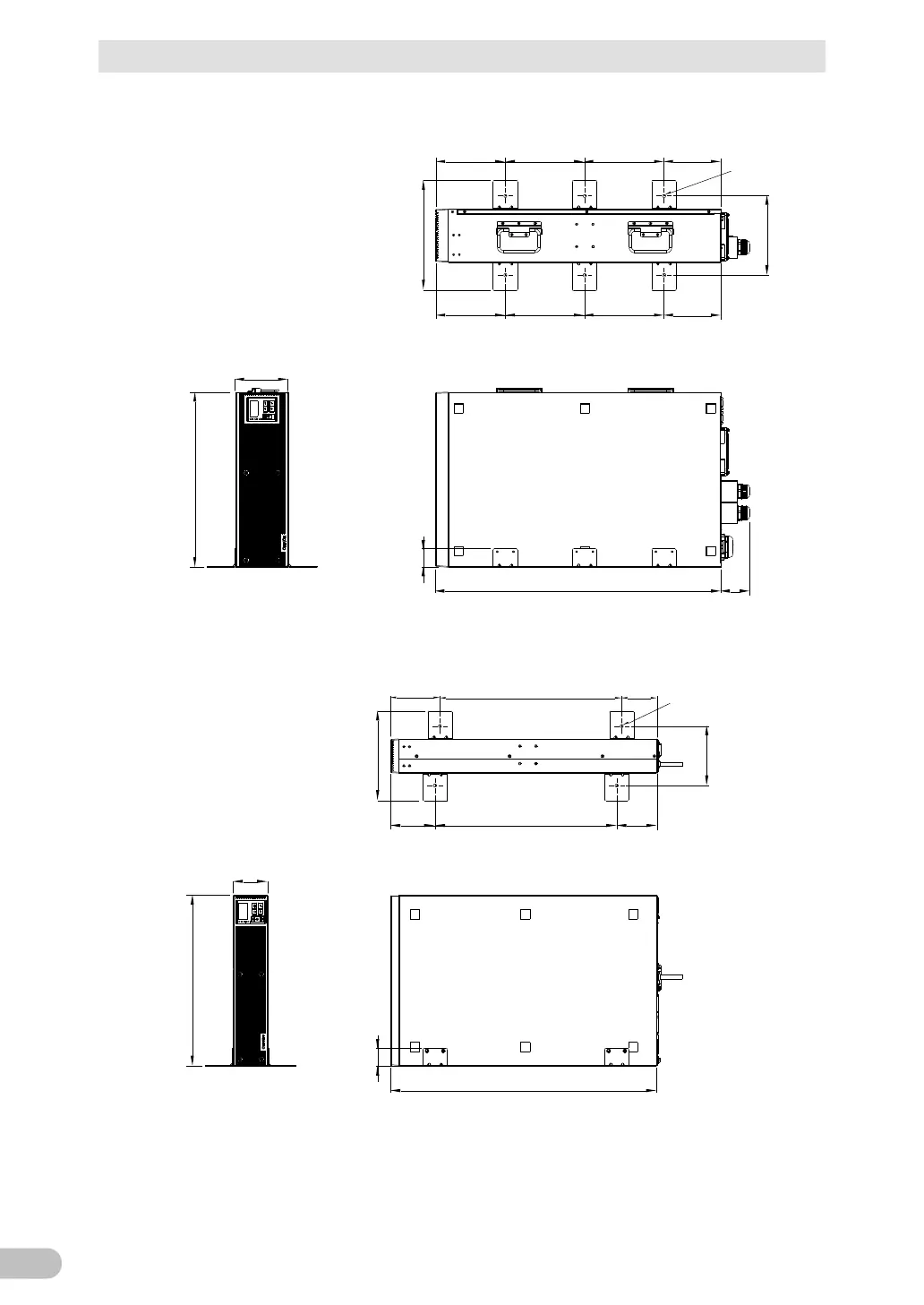

B. External dimensions
BU5002R/BU3002R/BU3002RH
130
■ Stands for vertical layout
<BU5002R>
270.5
170
195 140
195
170
195 140
195
700
45
70
430
130.5
194.5
Six, 8 dia.
<BU3002R>
226
110
100
450
660
86
45
122 450 88
430
150
Four, 8dia.
