1 Preparation
1-4 Names of each part
BU5002R/BU3002R/BU3002RH
28

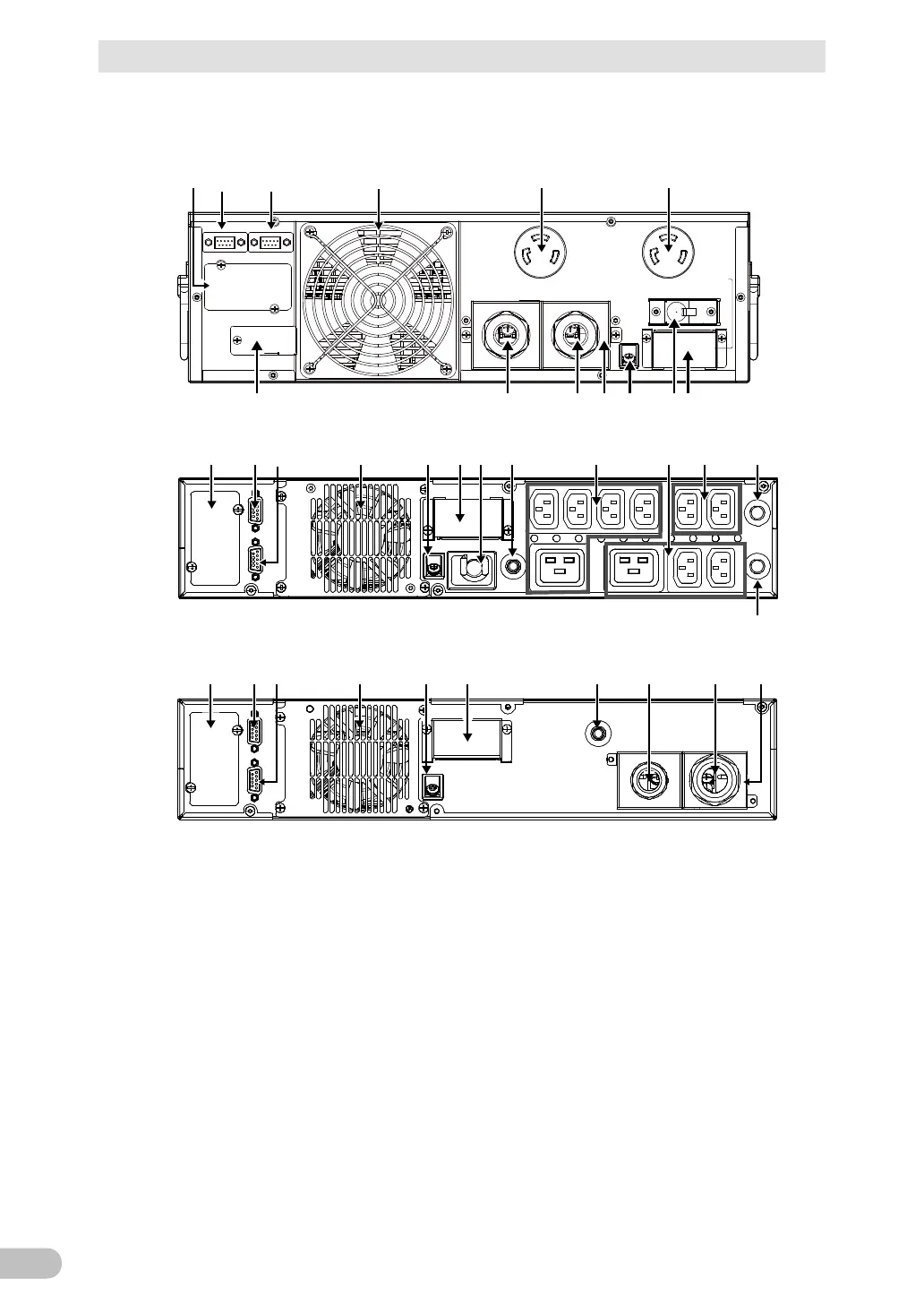

⚫ Rear view
<BU5002R>
A B C D O O
P H I J E FG
<BU3002R>
A B C D E F GK
L M N R
Q
<BU3002H>
A B DC E F G H I J
A: Option slot
B: Contact signal port
C: RS-232C port
D: Cooling fan
E: GND
F: Expansion battery connector
G: AC input overcurrent protection switch
H: AC input terminal block
I: AC output terminal block
J: Terminal block cover
K: AC Input cable
L: AC output receptacles A
M: AC output receptacles B
N: AC output receptacles C
O: AC output receptacles
P: Fan connector cover
Q: Overcurrent protection switch for output
receptacles B
R: Overcurrent protection switch for output
receptacles C
