2 Installation and connection
2-2 Installation
BU5002R/BU3002R/BU3002RH
34
3.

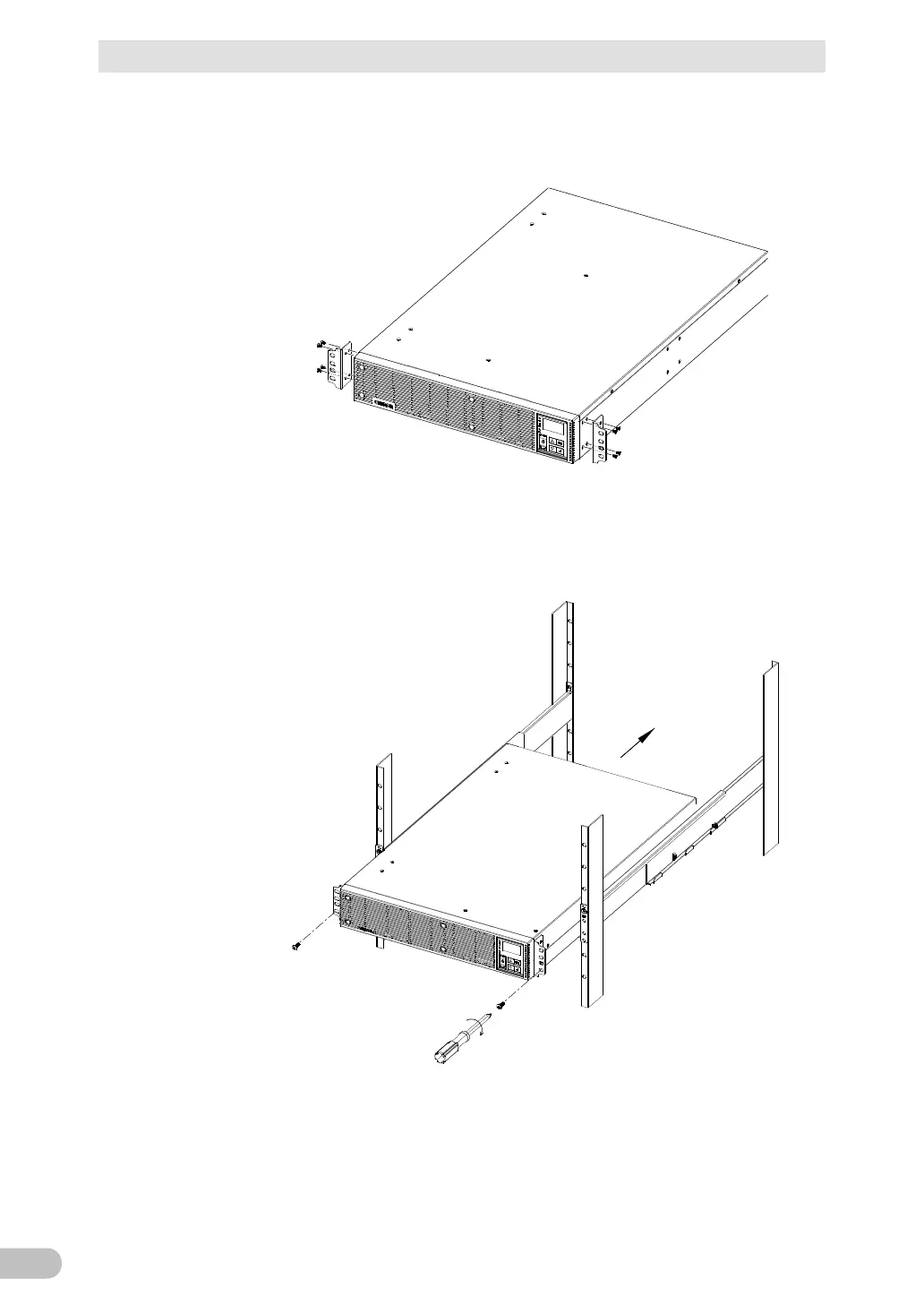

Securely fix the ear brackets on the right and left side faces of the UPS using the
provided 8 ear bracket mounting flat-head screws (4 pcs x 2). ()


4.
Place the UPS on the support angles, push it in all the way to the back (), and
securely fix the ear brackets onto the server rack using the provided 2 fixing
screws for EIA/JIS rack (M5). ()
The remaining 6 fixing screws for EIA/JIS rack (M5) are not used.



