2 Installation and connection
2-5 Connecting the expansion battery unit
BU5002R/BU3002R/BU3002RH
58
2.

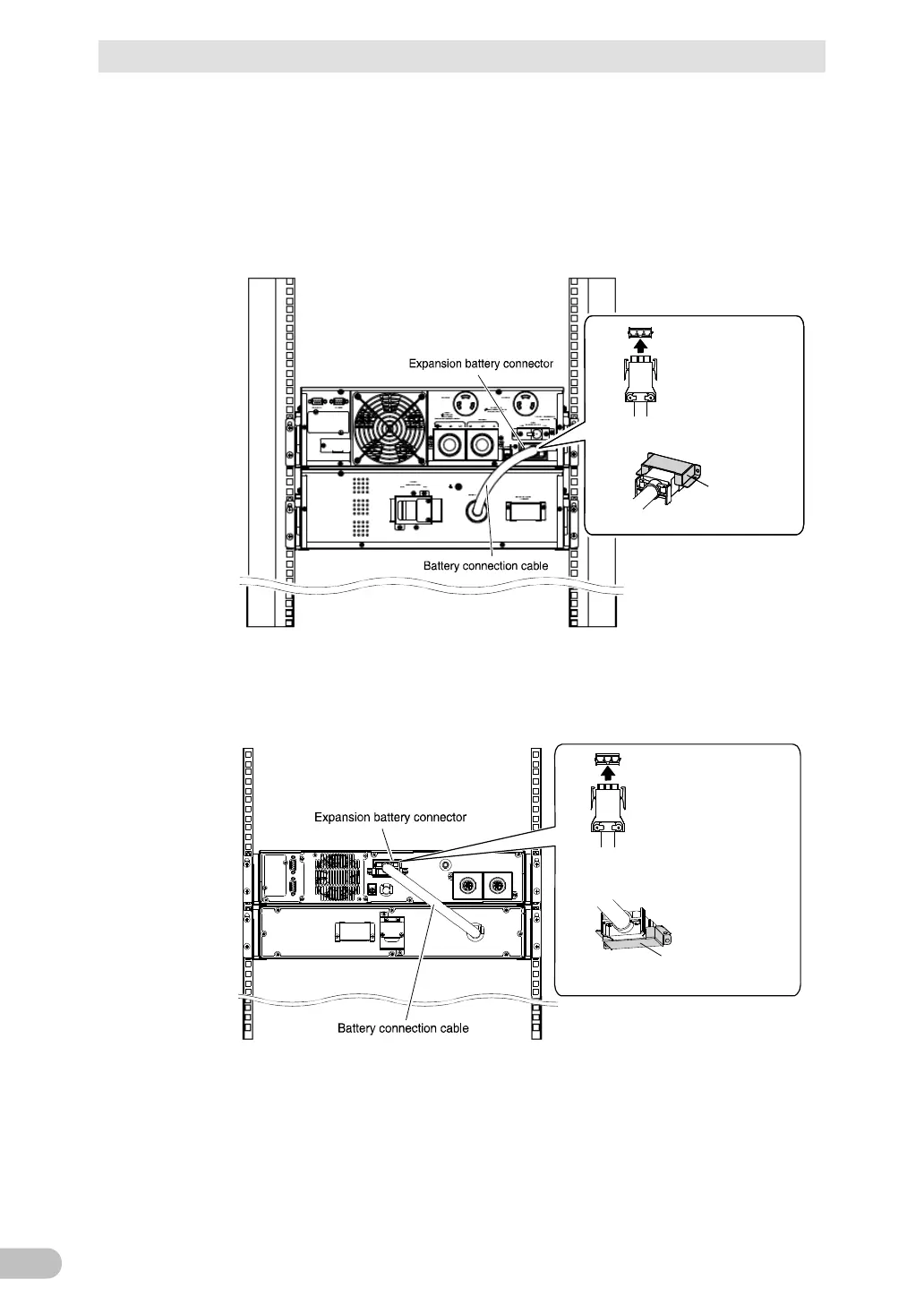

Connect the connecting cable of the expansion battery unit to the battery
expansion connector on the back of the UPS unit (). Then, fix the connector
cover that has been removed ().
• BU5002R
Expansion battery unit: BUM5002R
Attach the removed expansion
battery connector cover again.
Expansion battery
connector cover


• BU3002R, BU3002RH
Expansion battery unit: BUM3002R
Attach the removed expansion
battery connector cover again.
Expansion battery
connector cover


