3 Checking and starting the operation
3-1 Names and functions of each part of the operation and display sections
BU5002R/BU3002R/BU3002RH

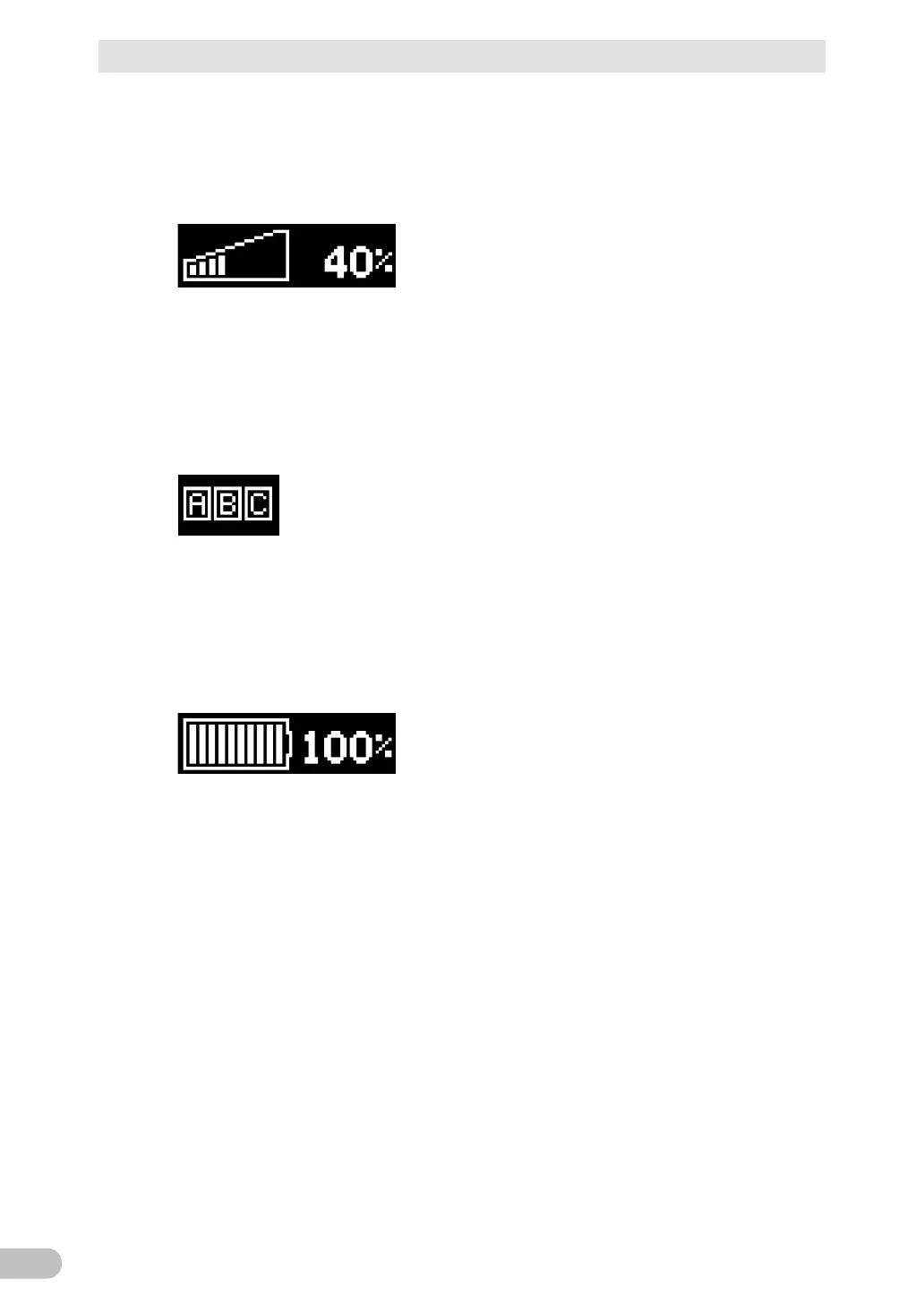

■ Load level
The load level gauge displays the connected capacity of the connected devices as a
percentage.
The maximum connected capacity is shown as 100%.
BU5002R: 5000 VA/4500 W indicated as 100%
BU3002R: 3000 VA/2700 W indicated as 100%
BU3002RH: 3000 VA/2700 W indicated as 100%
■ Output group status (BU3002R only)
When the output group A, B, and C are ON, A, B, and C are displayed within boxes.
■ Output voltage
The set output voltage is displayed.
■ Battery level
The battery level gauge indicates the remaining battery capacity as a percentage.
■ Backup time
Displays the period of time for which the UPS can continue its output using power supplied
from the battery in minutes.
