Logic Operations Section 4-25
(2) Turns ON when either the control output 1 or 2 ON/OFF count alarm is
ON.
5. Switching between Normally Open and Normally Closed for Inputs A to D
Click the condition to switch between normally open and normally closed
inputs A to D.
6. Switching between Normally Open and Normally Closed for Work Bits
Click the condition to switch between normally open and normally closed
work bits.
7. Setting ON Delay Times
When an input with an ON delay turns ON, the output will turn ON after the
set delay time has elapsed. The setting range is 0 to 9,999. The default is
0 (disabled).
8. Setting OFF Delay Times
When an input with an OFF delay turns OFF, the output will turn OFF after
the set delay time has elapsed. The setting range is 0 to 9,999. The default
is 0 (disabled).
9. Switching ON/OFF Delay Time Unit
Select either seconds or minutes for the ON/OFF delay time unit. The de-
fault is seconds.
10. Selecting the Number of Banks to Use
Select a number from 0 to 3 for the Bank Numbers Used parameter.
(For models with two event inputs, select a number between 0 and 2.)
Note If a work bit is assigned for either the Event Input Data 1 or Event
Input Data 2 parameter for a model that does not support event in-
puts 1 and 2 and if a number greater than 0 is set for the Bank Num-
bers Used parameter, then event inputs 1 and 2 will be used for
bank selection.
For example, if the Bank Numbers Used parameter is set to 2 for a model
with event inputs 3 and 4, and the following settings are made, then event
input 1 (work bit 1) and event input 2 (work bit 2) will be used for bank se-
lection.
• Event Input Data 1: Work bit 1
• Event Input Data 2: Work bit 2
• Event Input Data 3: Event input 3 (external input)
• Event Input Data 4: Event input 4 (external input)
To use event input 3 (external input) and event input 4 (external input) for
bank selection, make the following settings:
• Event Input Data 1: Event input 3 (external input)
• Event Input Data 2: Event input 4 (external input)
• Event Input Data 3: Work bit 1
• Event Input Data 4: Work bit 2

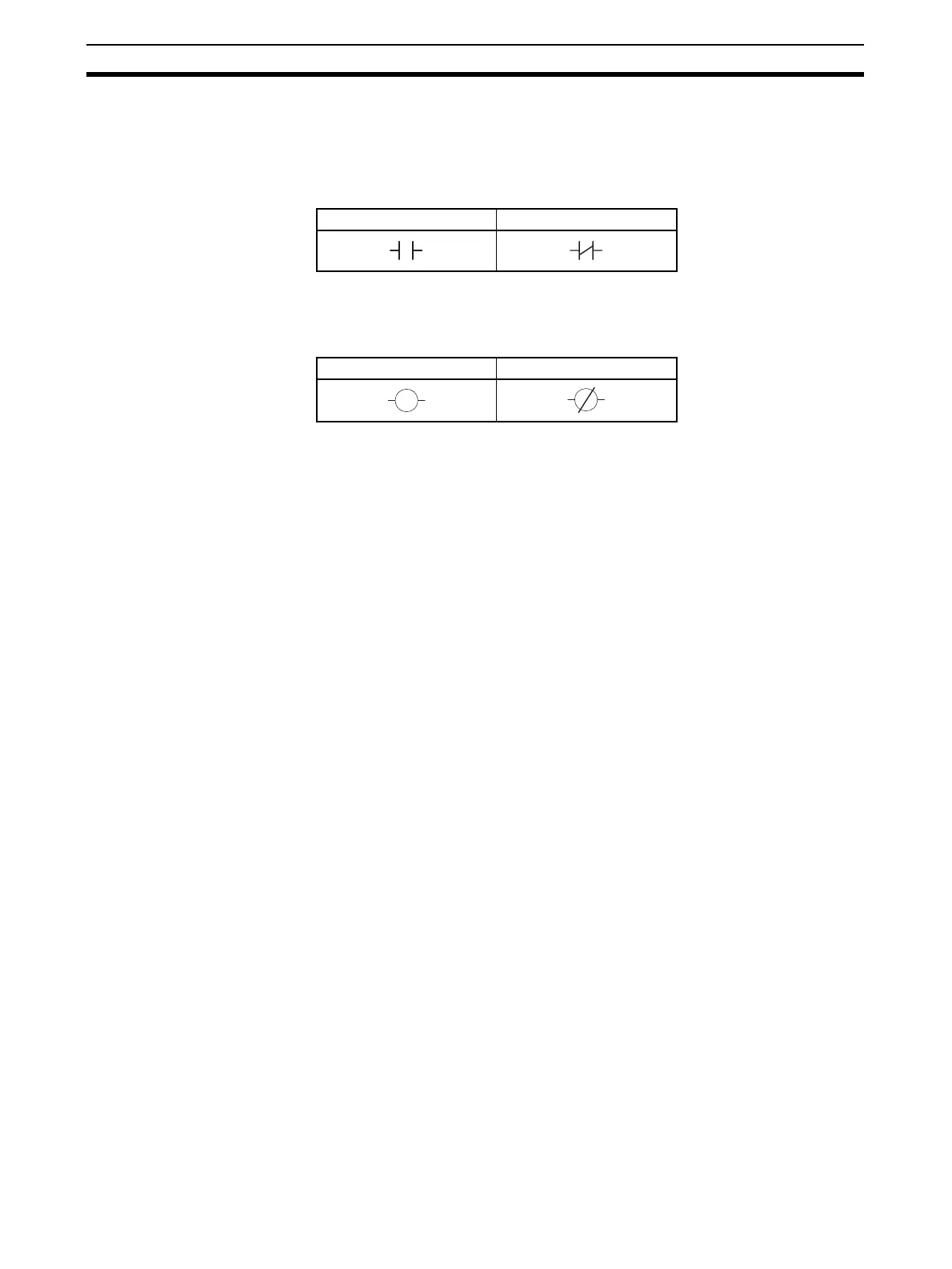

Normally open Normally closed
