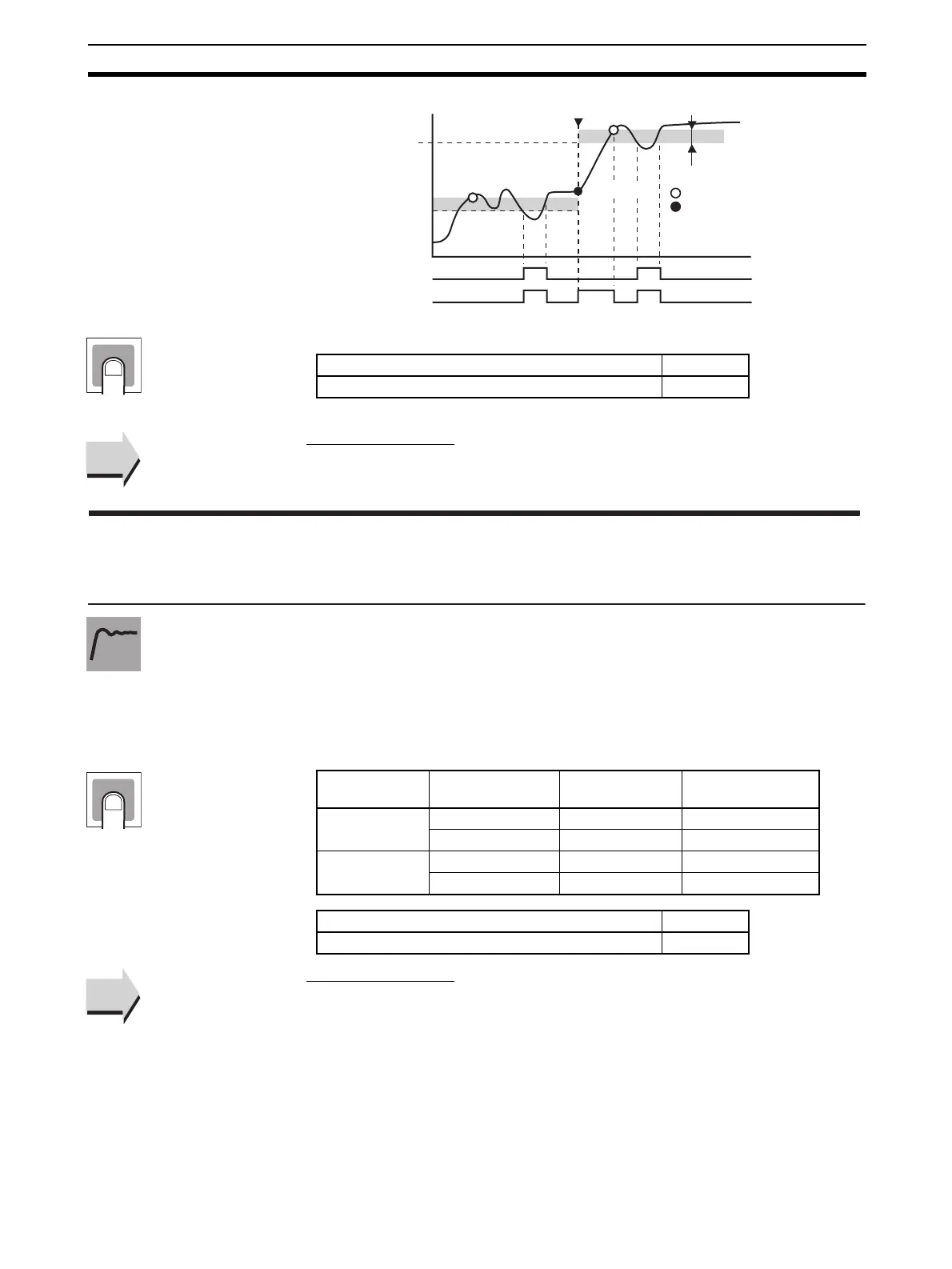

245
Advanced Function Setting Level Section 5-10
â–  Related Parameters
Alarm 1 to 3 type (initial setting level): Page 231 to 233
Alarm 1 to 3 latch (advanced function setting level): Page 250
• This parameter sets the output status of auxiliary outputs 1 to 3.
• When Close in Alarm is set, the status of the auxiliary output function is
output unchanged. When Open in Alarm is set, the status of the auxiliary
output function is reversed before being output. The following table shows
the relationship between the auxiliary output function, auxiliary output,
and operation displays (SUB1 to SUB3).
â–  Related Parameters
Auxiliary output 1 to 3 assignment (advanced function setting level): Page 263
to 265
Setting range Default
a: Condition A, b: Condition B a
Alarm
(after change)
Alarm
SP change
Condition A only
Condition A
only
Alarm hysteresis
: Standby sequence canceled
: Standby sequence reset
Alarm output:
Condition A
Alarm output:
Condition B
Setting
See
See
sb*n
Auxiliary Output * Open in Alarm
(*: 1 to 3)
Auxiliary output 1, 2, or 3 must be
assigned.
Auxiliary output
function
Auxiliary output Operation display
(SUB1 to SUB3)
Close in Alarm ON ON Lit
OFF OFF Not lit
Open in Alarm ON OFF Lit
OFF ON Not lit
Setting range Default
n-o: Close in alarm, n-c: Open in alarm n-o
Function
Setting
See
See
