96

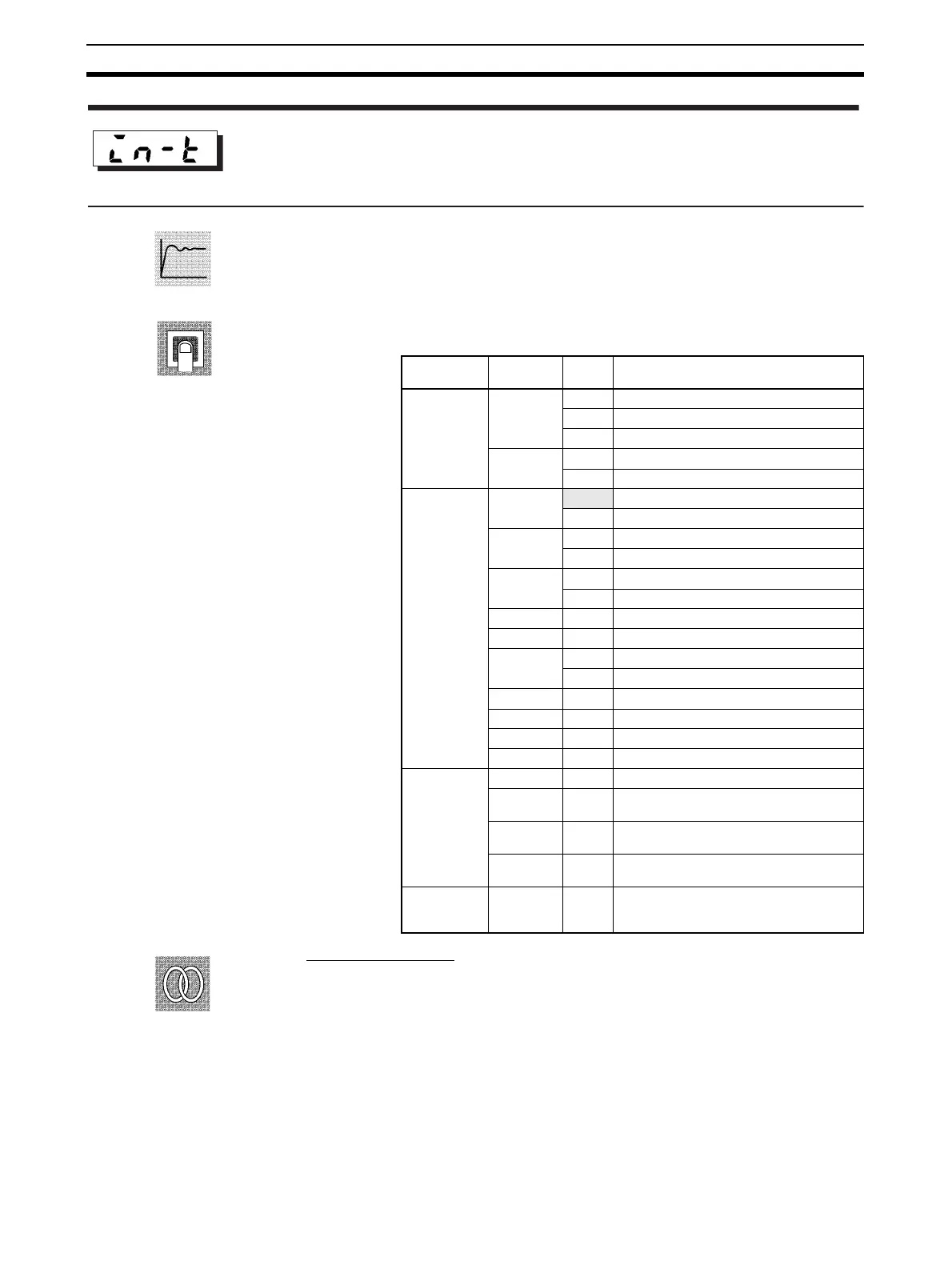

Initial Setting Level Section 5-5
• This parameter sets the sensor type by a corresponding code.
• When this parameter is changed, the set point upper limit is changed to
the default. If the set point limits must be changed, set the “set point upper
limit” and “set point lower limit” parameters (initial setting level).
• Set the code according to the following table. Shaded ranges indicate
default settings.
■ Related parameters
“°C/°F selection” “Set point upper limit” “Set point lower limit” (initial setting
level)
Input type
Input type Name Set
Value
Input Temperature Range
Platinum
resistance
thermometer
Pt100 0
−200 to 850 (°C)/−300 to 1500 (°F)
1
−199.9 to 500.0 (°C)/−199.9 to 900.0 (°F)
2 0.0 to 100.0 (
°C)/0.0 to 210.0 (°F)
JPt100 3
−199.9 to 500.0 (°C)/−199.9 to 900.0 (°F)
4 0.0 to 100.0 (
°C)/0.0 to 210.0 (°F)
Thermocou-
ple
K
5 −200 to 1300 (°C)/−300 to 2300 (°F)
6
−20.0 to 500.0 (°C)/0.0 to 900.0 (°F)
J7
−100 to 850 (°C)/−100 to 1500 (°F)
8
−20.0 to 400.0 (°C)/0.0 to 750.0 (°F)
T9
−200 to 400 (°C)/−300 to 700 (°F)
22
−199.9 to 400.0 (°C)/−199.9 to 700.0 (°F)
E 10 0 to 600 (
°C)/0 to 1100 (°F)
L11
−100 to 850 (°C)/−100 to 1500 (°F)
U12
−200 to 400 (°C)/−300 to 700 (°F)
23
−199.9 to 400.0 (°C)/−199.9 to 700.0 (°F)
N13
−200 to 1300 (°C)/−300 to 2300 (°F)
R 14 0 to 1700 (
°C)/0 to 3000 (°F)
S 15 0 to 1700 (
°C)/0 to 3000 (°F)
B 16 100 to 1800 (
°C)/300 to 3200 (°F)
Infrared
temperature
sensor
ES1B
10 to 70
°C 17 0 to 90 (°C)/0 to 190 (°F)
60 to
120
°C
18 0 to 120 (
°C)/0 to 240 (°F)
115 to
165
°C
19 0 to 165 (
°C)/0 to 320 (°F)
140 to
260
°C
20 0 to 260 (
°C)/0 to 500 (°F)
Analog input 0 to 50 mV 21 One of following ranges depending on the
results of scaling:
−1999 to 9999, −199.9 to 999.9
Function
Setting
See
