97

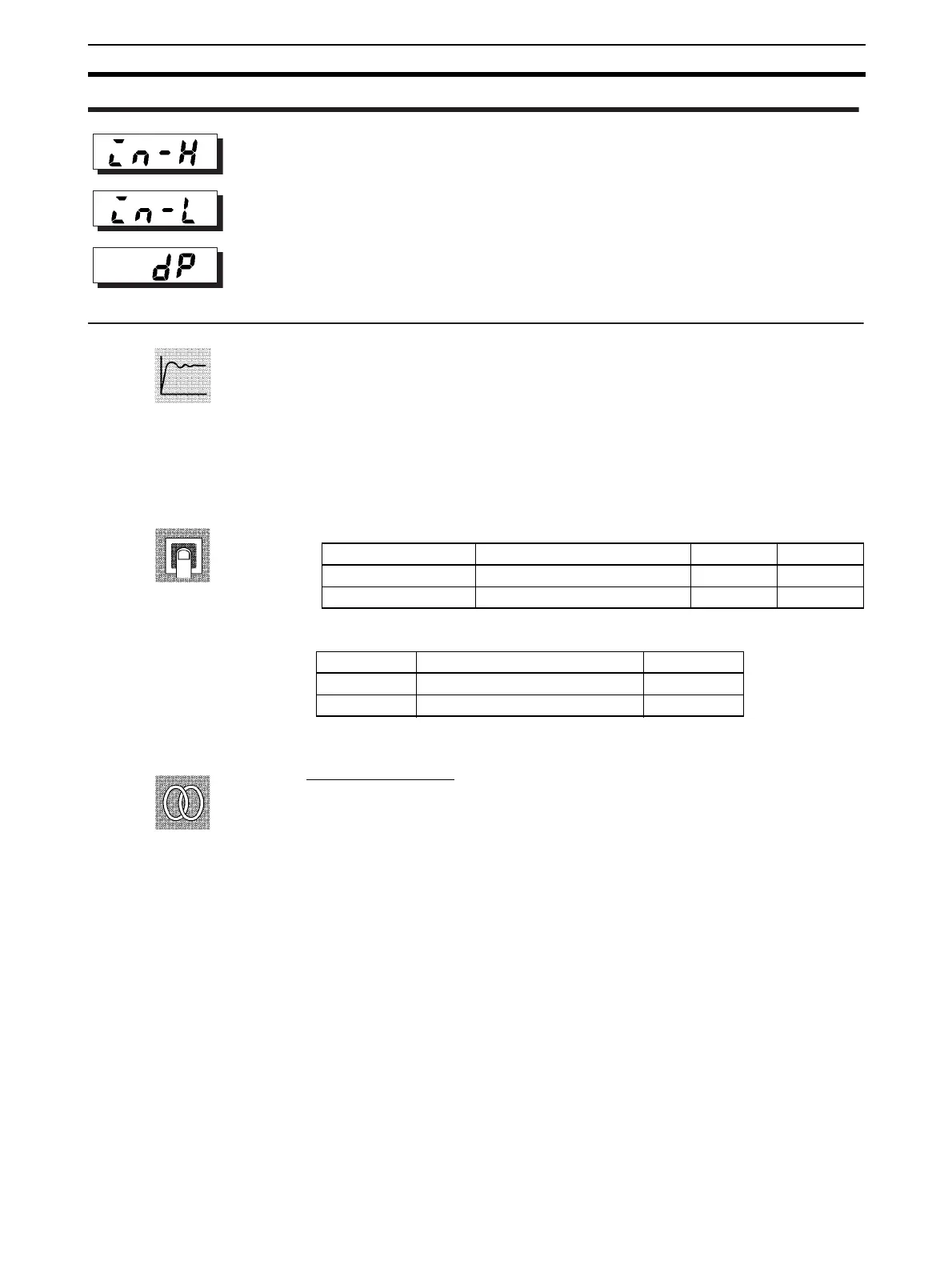

Initial Setting Level Section 5-5
• These parameters can be used when voltage input is selected as the
input type.
• When voltage input is selected as the input type, scaling is carried out.
Set the upper limit in the “scaling upper limit” parameter and the lower
limit in the “scaling lower limit” parameter.
• The “decimal point” parameter specifies the decimal point position of
parameters (set point, etc.) whose unit is set to EU.
• Scaling upper limit, Scaling lower limit
• Decimal point: Default is “0: 0 digits past decimal point”
■ Related parameters
“Input type” (initial setting level)
Scaling upper limit
The input type must be set to analog
input.
Scaling lower limit
Decimal point
Parameter Setting Range Unit Default
Scaling upper limit Scaling lower limit +1 to 9999 None 100
Scaling lower limit −1999 to scaling upper limit −1None 0
Set value Setting Example
0 0 digits past decimal point 1234
1 1 digit past decimal point 123.4
Function
Setting
See
