Initial Setting Examples Section 3-1
Typical example 1

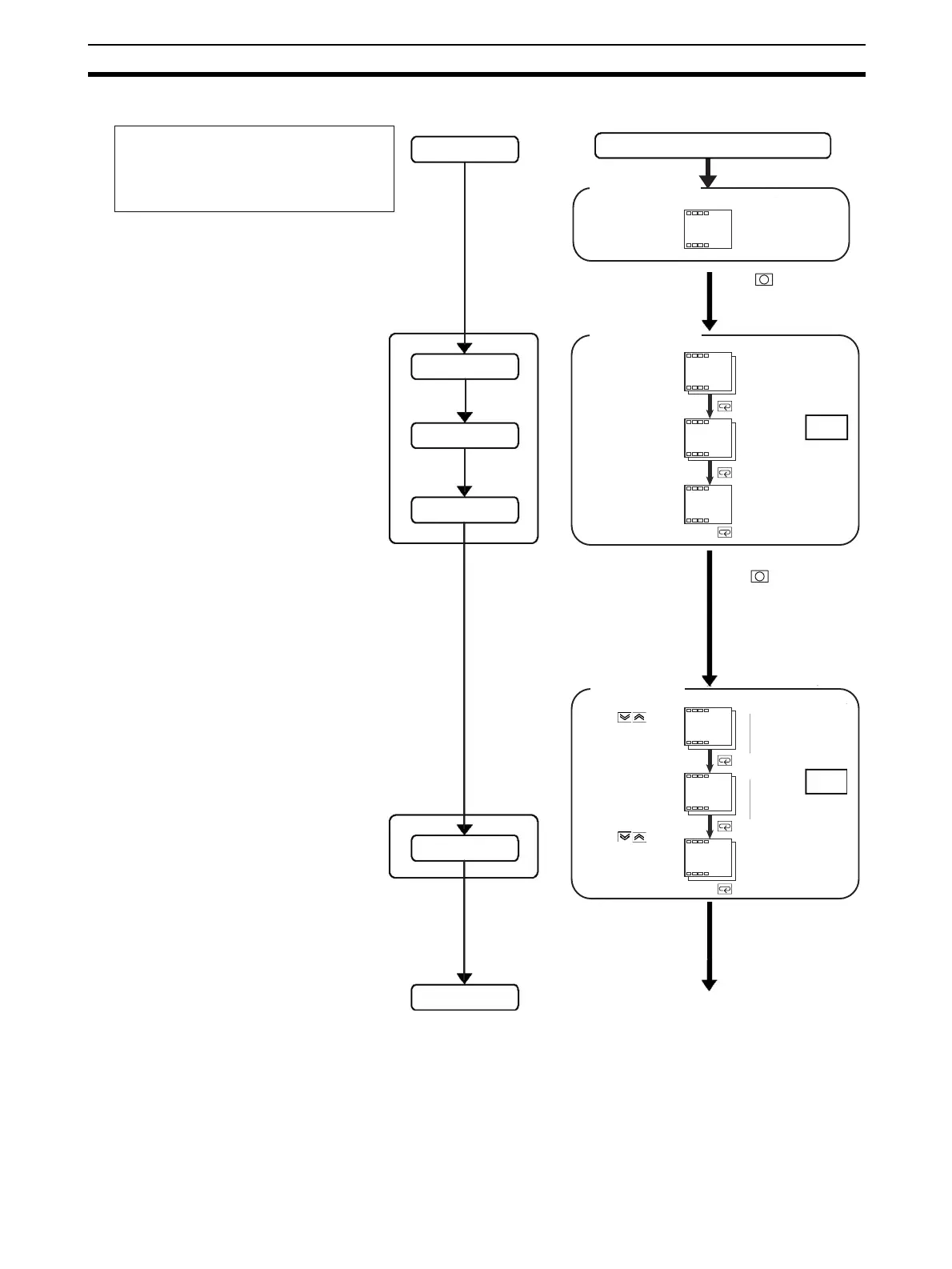

Setup procedure
Power ON
Initial setting level
Set input
specifications
Set control
specifications
Set alarm type
Set alarm values
Operation level
Start operation
Power ON
Process value/
set point
In ON/OFF
control in
PID control
Check input
type.
Check alarm
type.
Press key for at least
three seconds.
Control stops.
Press key for at
at least one second.
Start operation
Input type: 5 K thermocouple −200 to 1300°C
Control method: ON/OFF control
Alarm type: 2 upper limit
Alarm value 1: 20°C (deviation)
Set point: 100°C
20
al-1
Press keys
to set alarm
value to "20°C".
Make sure that
control is
running.
Alarm value 1 20
During run
During stop
run
stop
run
r-5
Process value/
set point
100
100
25
Alarm 1 type
2
2
alt1
0
25
Input type
5
5
in-t
Press keys
to set point to
"100°C".
Check that
control is
ON/OFF control.
onof
pid
onof
cntl
Operation level
Initial setting level
Operation level
25
0
C
in-t
5
cntl
onof
25
100
C
r-5
run
al-1
20
C
alt1
2
