Omron E5EN User Manual

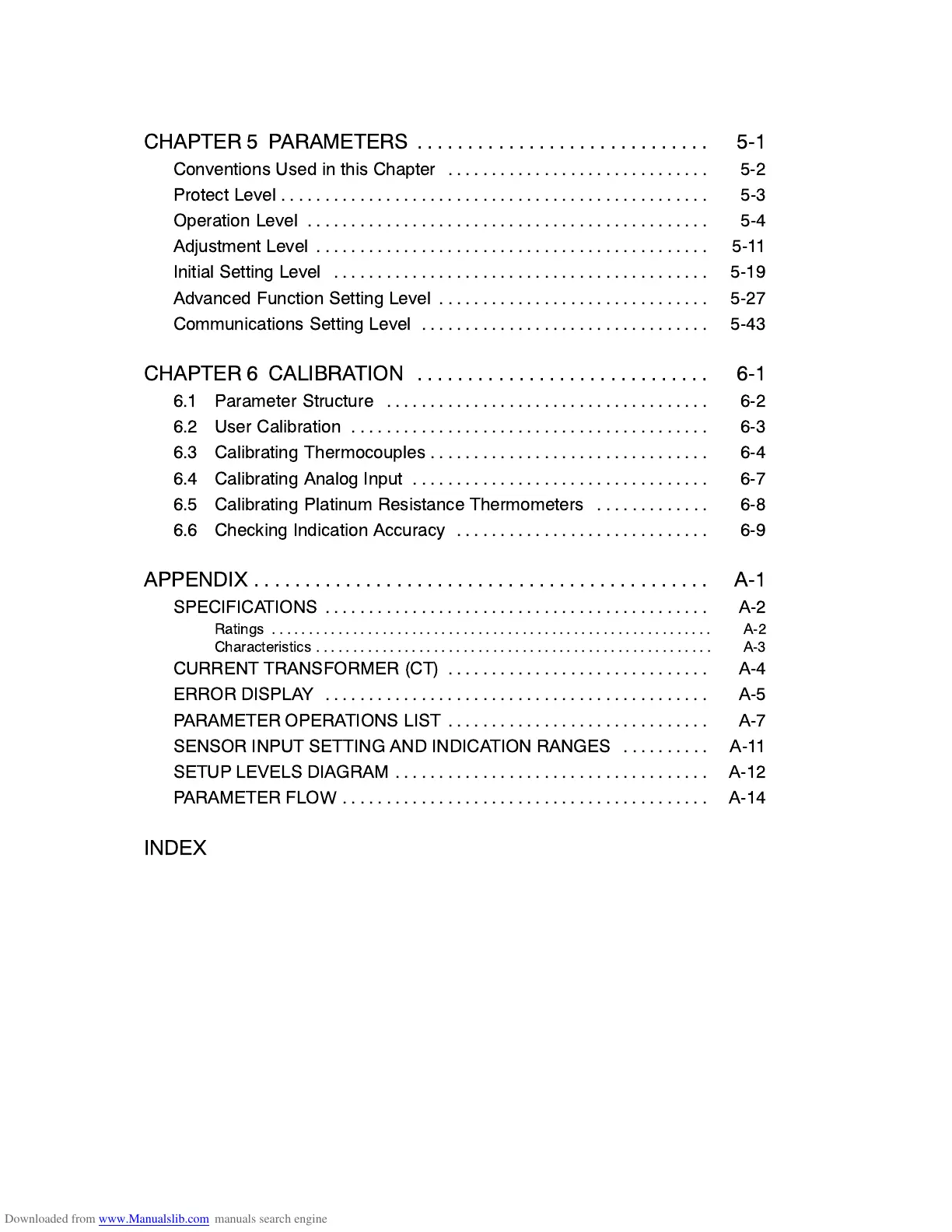

CHAPTER 5 PARAMETERS 5Ć1.............................
Conventions Used in this Chapter 5Ć2..............................
Protect Level 5Ć3.................................................
Operation Level 5Ć4..............................................
Adjustment Level 5Ć11.............................................
Initial Setting Level 5Ć19...........................................
Advanced Function Setting Level 5Ć27...............................
Communications Setting Level 5Ć43.................................
CHAPTER 6 CALIBRATION 6Ć1.............................
6.1 Parameter Structure 6Ć2.....................................
6.2 User Calibration 6Ć3.........................................
6.3 Calibrating Thermocouples 6Ć4................................
6.4 Calibrating Analog Input 6Ć7..................................
6.5 Calibrating Platinum Resistance Thermometers 6Ć8.............
6.6 Checking Indication Accuracy 6Ć9.............................
APPENDIX AĆ1.............................................
SPECIFICATIONS AĆ2............................................
Ratings AĆ2............................................................
Characteristics AĆ3......................................................
CURRENT TRANSFORMER (CT) AĆ4..............................
ERROR DISPLAY AĆ5............................................
PARAMETER OPERATIONS LIST AĆ7..............................
SENSOR INPUT SETTING AND INDICATION RANGES AĆ11..........
SETUP LEVELS DIAGRAM AĆ12....................................
PARAMETER FLOW AĆ14..........................................
INDEX

Omron E5EN Specifications

General

Size	48 x 96 mm
Weight	Approx. 300 g
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Display Type	Digital
Number of Control Outputs	1
Communication	RS-485
Ambient Operating Temperature	-10 to 55 °C
Ambient Operating Humidity	25 to 85% RH
