Omron E5EN User Manual

   


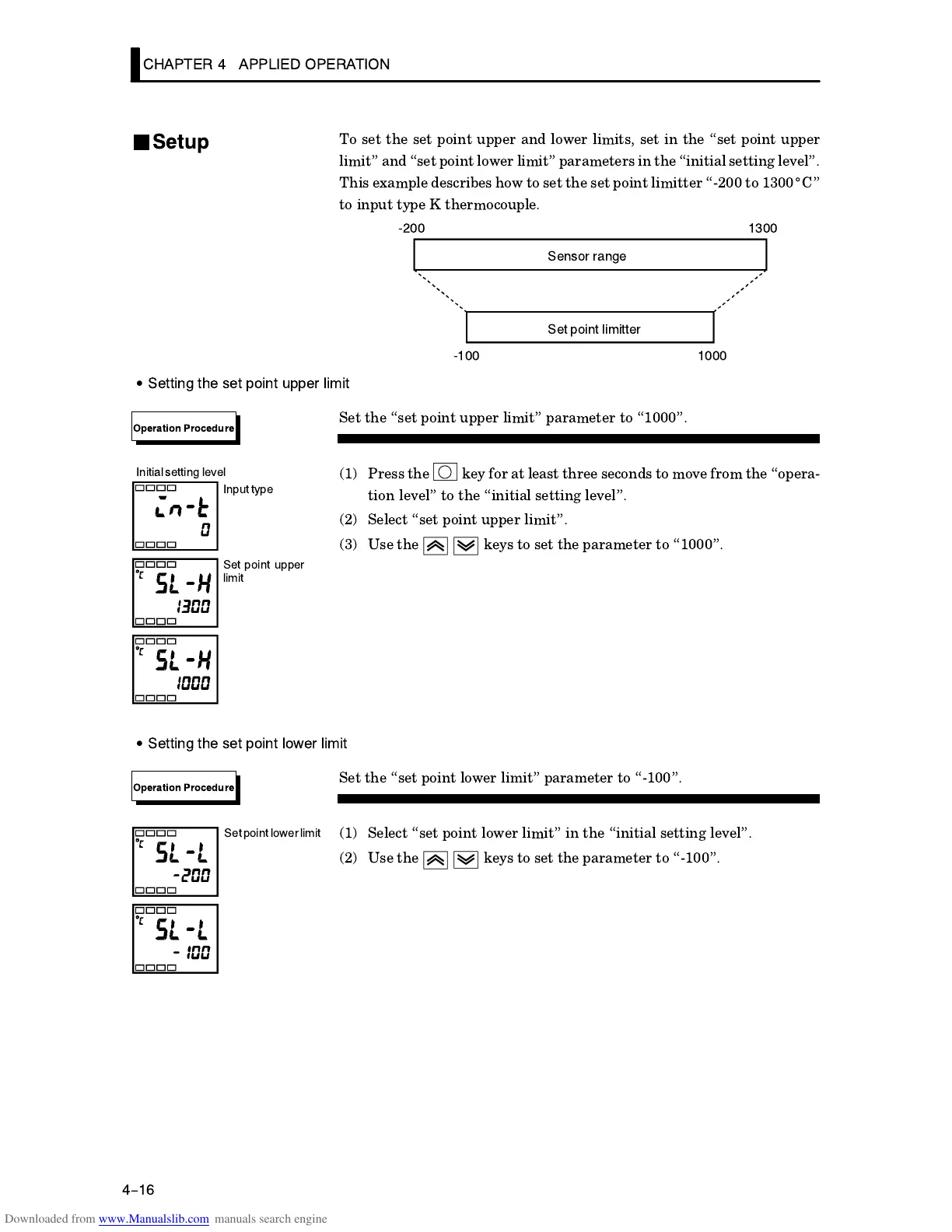

To set the set point upper and lower limits, set in the set point upper
limit" and set point lower limit" parameters in the initial setting level".
This example describes how to set the set point limitter Ć200 to 1300 _ C"
to input type K thermocouple.
" " ""
! 
( 
(
• "" " !" " # "
Set the set point upper limit" parameter to 1000".
(1) Press the key for at least three seconds to move from the operaĆ
tion level" to the initial setting level".
(2) Select set point upper limit".
(3) Use the keys to set the parameter to 1000".
• "" " !" " % "
Set the set point lower limit" parameter to Ć100".
(1) Select set point lower limit" in the initial setting level".
(2) Use the keys to set the parameter to Ć100".
J Setup
Operation Procedure
#" "&
" " #
"
"!"" $
Operation Procedure
" " % "

Omron E5EN Specifications

General

Size	48 x 96 mm
Weight	Approx. 300 g
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Display Type	Digital
Number of Control Outputs	1
Communication	RS-485
Ambient Operating Temperature	-10 to 55 °C
Ambient Operating Humidity	25 to 85% RH
