4.7 Executing the SP Ramp Function (limiting the SP change rate)
4-17

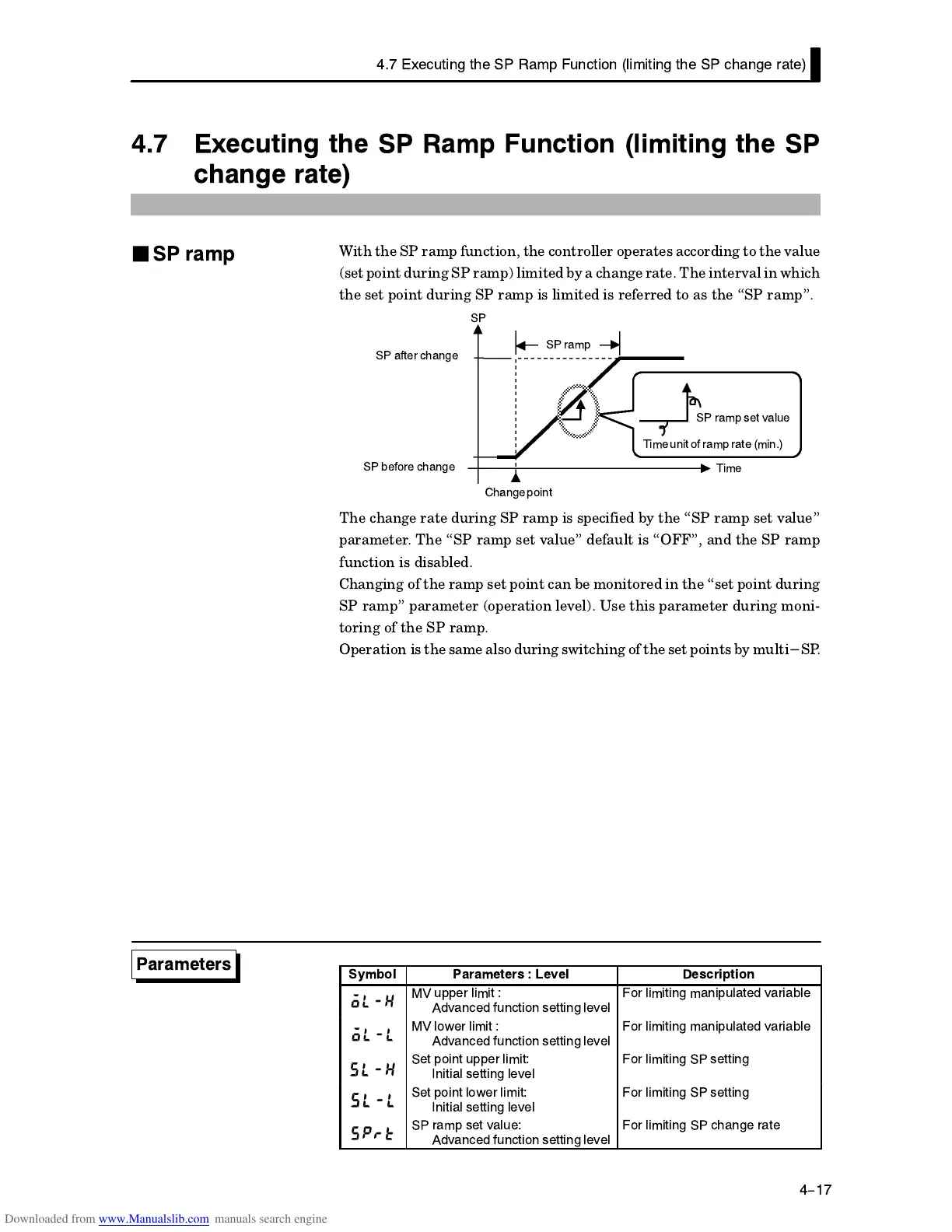

4.7 Executing the SP Ramp Function (limiting the SP
change rate)
With the SP ramp function, the controller operates according to the value
(set point during SP ramp) limited by a change rate. The interval in which
the set point during SP ramp is limited is referred to as the SP ramp".
Changepoint
SP after change
SP before change
SP ramp
SP ramp set value
Timeunit of ramp rate(min.)
Time
SP
The change rate during SP ramp is specified by the SP ramp set value"
parameter. The SP ramp set value" default is OFF", and the SP ramp
function is disabled.
Changing of the ramp set point can be monitored in the set point during
SP ramp" parameter (operation level). Use this parameter during moniĆ
toring of the SP ramp.
Operation is the same also during switching of the set points by multi-SP.
Symbol Parameters : Level Description
MV upper limit :
Advanced function setting level
For limiting manipulated variable
MV lower limit :
Advanced function setting level
For limiting manipulated variable
Set point upper limit:
Initial setting level
For limiting SP setting
Set point lower limit:
Initial setting level
For limiting SP setting
SP ramp set value:
Advanced function setting level
For limiting SP change rate
J SP ramp
Parameters

Omron E5EN Specifications

General

Size	48 x 96 mm
Weight	Approx. 300 g
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Display Type	Digital
Number of Control Outputs	1
Communication	RS-485
Ambient Operating Temperature	-10 to 55 °C
Ambient Operating Humidity	25 to 85% RH
