Section 3 HOW TO USE THE BASIC FUNCTIONS
3-14
HOW TO USE THE
BASIC FUNCTIONS
■ Differences between the Run Mode and the Test Mode
In the Run mode, cam programs cannot be changed.
In the Test mode, cam programs can be changed while being executed. Therefore, the Test mode
operation can be considered "operation for adjustment purposes."

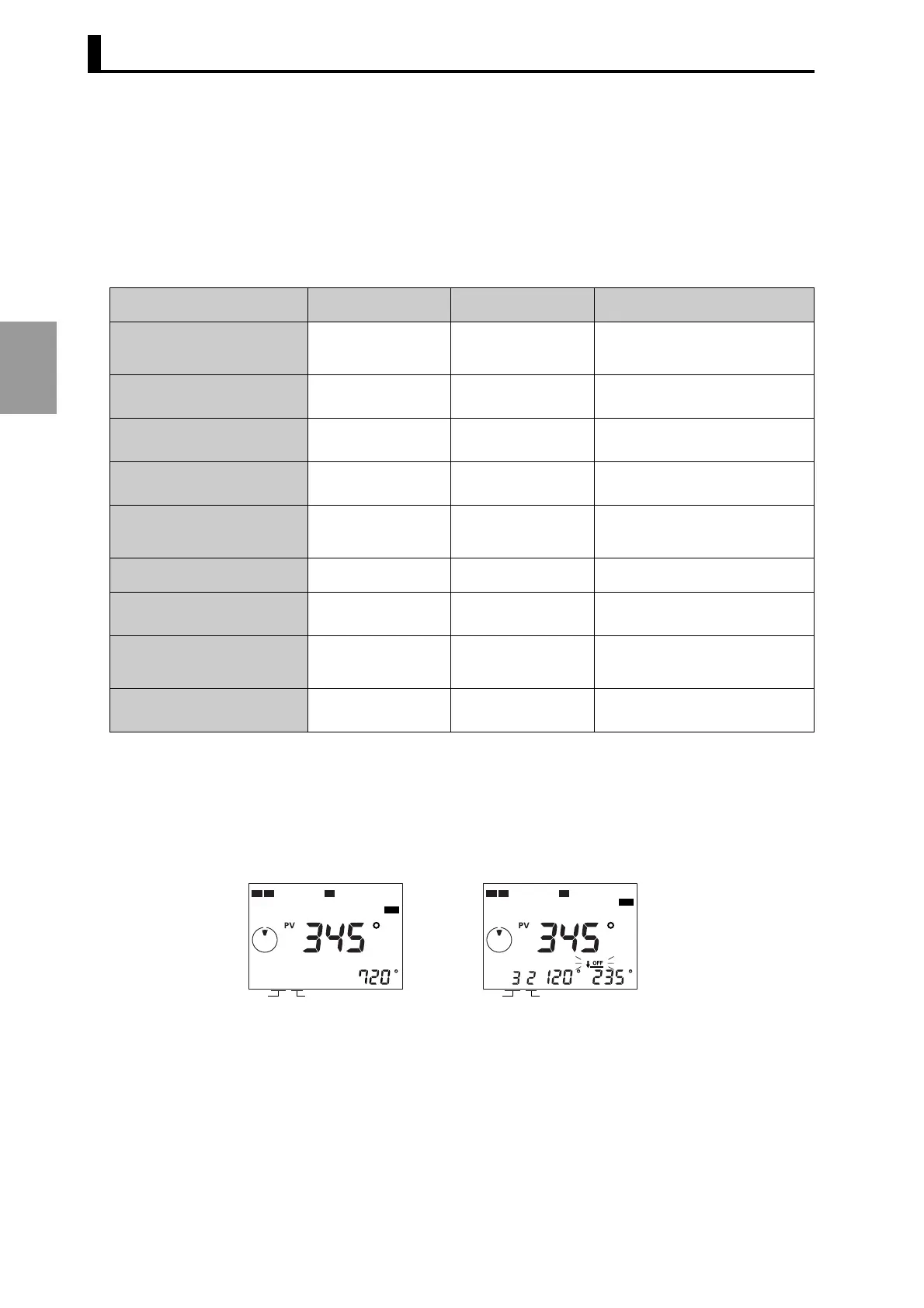

The table below shows the differences between the two modes. Select an operation mode that suits
the purpose of your operation.
*1: Not possible when the all protection function is enabled.
*2: Not possible for cams with the cam protection function being enabled.
*3: Switching in response to inputs at "bank input terminals" only
*4: Switching in response to inputs at the "bank input terminals" or the [BANK] key. (selectable)
Run mode Test mode Remarks
Outputs
(Cam, Pulse, RUN)
Turned on Turned on With 16-/32-output models, the
start input must be ON.
Cam program
Checking only
(*1 and *2)
Can be changed
(*2)
Speed display
Possible Not possible Refer to the display examples
below.
All protection operation
Possible Not possible Refer to "3.11 All Protection
Function".
Switch to the function
setting mode
Not possible Not possible
Origin setting
Not possible Possible Refer to "3.4 Setting the Origin".
Clear
Not possible Possible Refer to "3.8 Clearing the Set-
tings".
Bank switching
(16-/32-output models only)
Possible
(*3)
Possible
(*4)
Refer to "4.8 Bank Function (F7/
F8/F9)".
ADV function setting
Not possible Possible (*2) Refer to "4.2 Advance Angle
Compensation (ADV) Function".
CAM
STEP
12 7
TST
CAM
STEP
12 7
PRG
TST
RUN
Display example in the Run mode Display example in the Test mode
