3.8 Clearing the Settings
3-17
HOW TO USE THE
BASIC FUNCTIONS
3.8.2 All Clear (Deletes all programming)
The section below explains the procedure for clearing all programs.

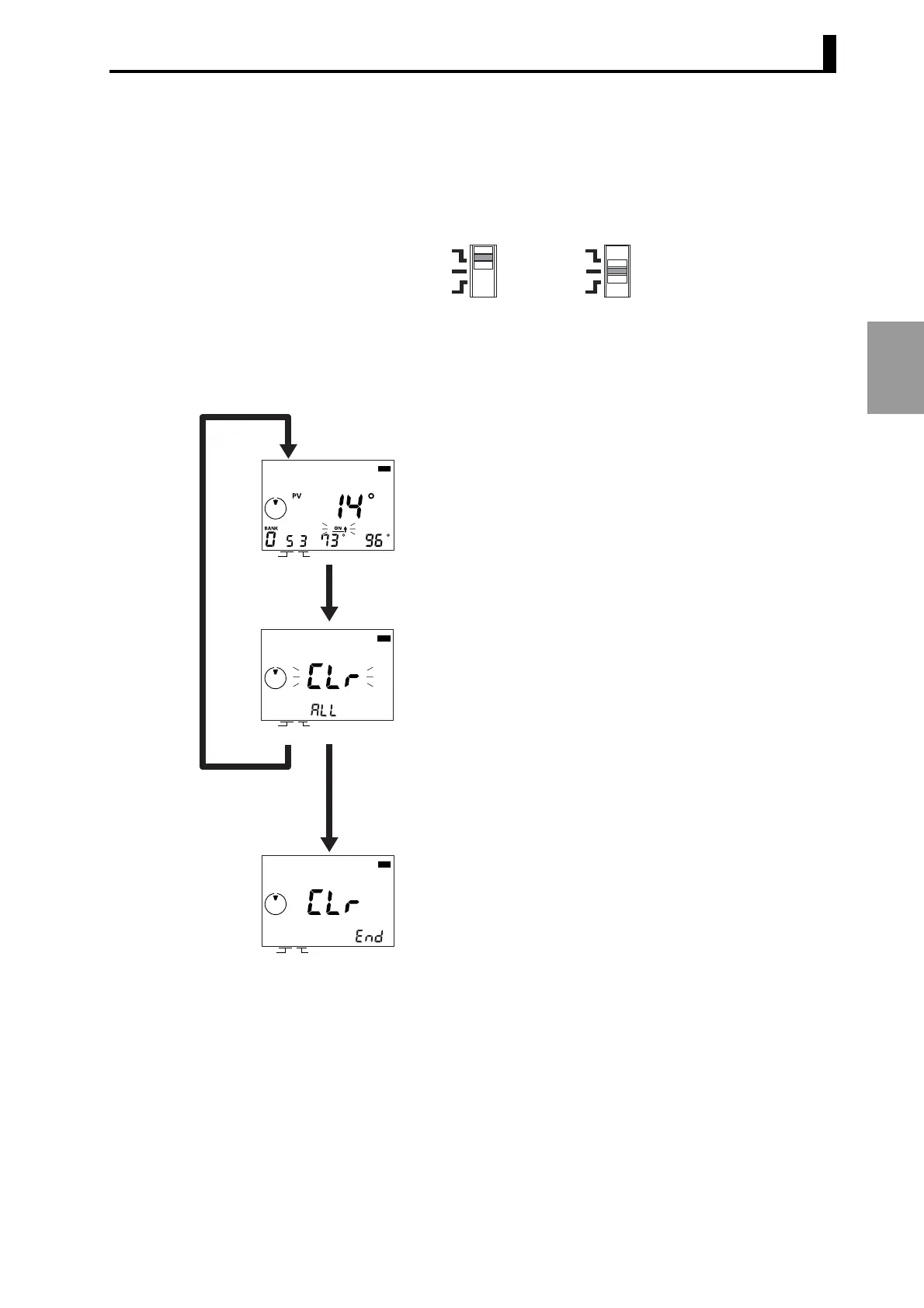

• Set the mode switch to PRGM or TEST.
• Hold the [CLEAR] key down for at least three seconds to set the all
clear mode.
Simply press the [WRITE] key to clear all programs.
PRGM
TEST
RUN
PRGM
TEST
RUN
CAM
STEP
PRG
PRG
CAM
STEP
Press the [CLEAR] key
(at least three seconds).
[CLEAR] key
Press the
[WRITE] key.
* Press the [CLEAR] key to resume the previously displayed
screen (the settings are not cleared).
* On switching to the clear screen while an output is on (while
"clr" is displayed), the output display will disappear but there is
no change in the actual output. (Test mode)
* Operation may be started from any display screen.
(PRGM/TEST mode)
After the completion of all clear processing, the screen
displays "end" for approximately one second and then
resume the previously displayed screen.
