3.10 Switching the Display between Speed and Angle
3-19
HOW TO USE THE
BASIC FUNCTIONS
3.10 Switching the Display between Speed and Angle

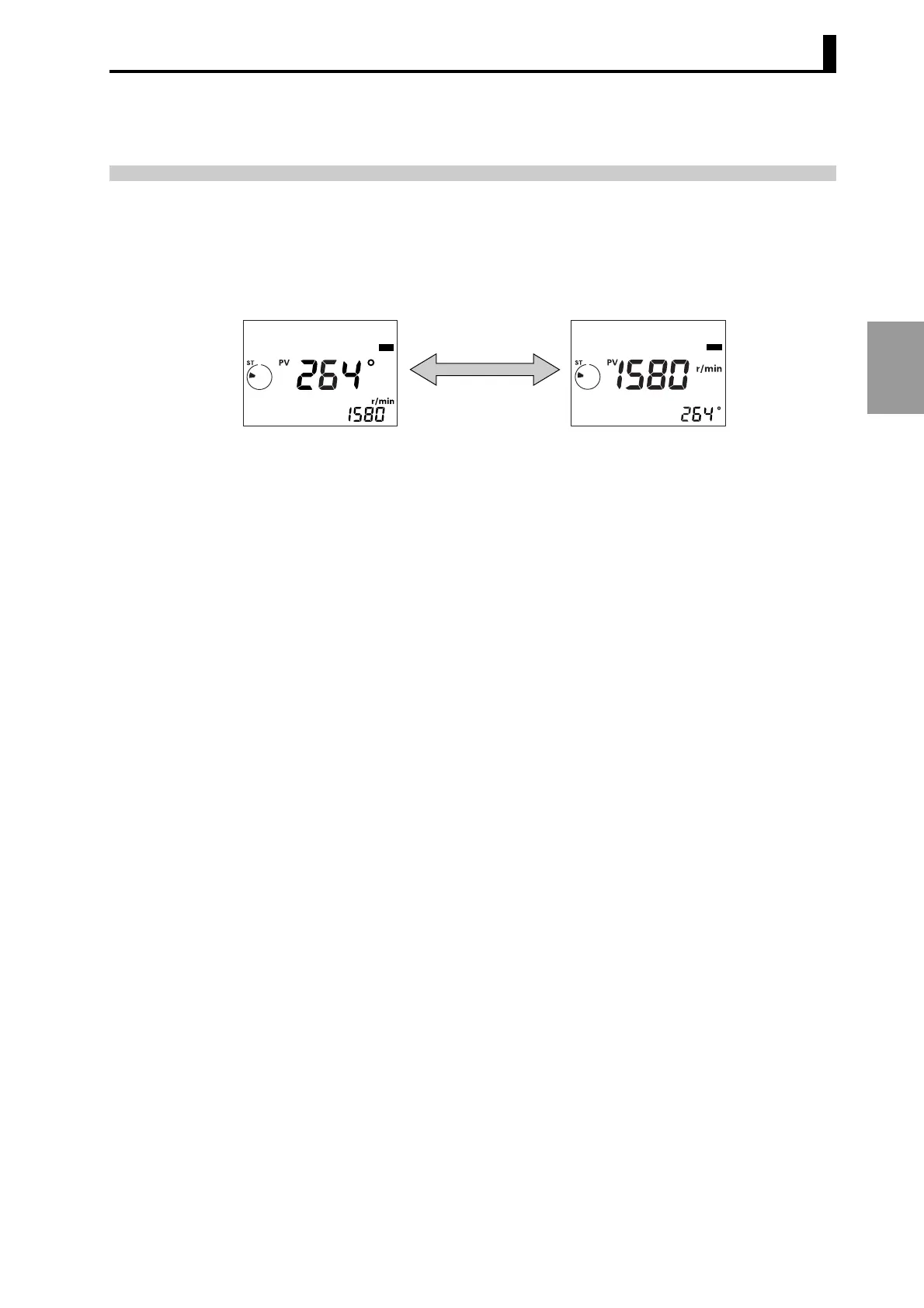

The displayed information ("Angle" and "Speed") can be switched between Main display and Sub-display
(only in the Run mode).
Pressing the [ON↑ ↓OFF] key for one second will toggle the information displayed at Main display and
Sub-display between "Angle" and "Speed"
• The display pattern setting is retained even after the power is turned
off. Accordingly, the screen displays information in the same pattern
as before the power was turned off.
• This function is not reset even by executing the all clear function.
(Refer to "3.8.2 All Clear (Deletes all programming)".)
• The speed is detected/updated in 200-ms intervals.
• With a resolution setting of 256 per rotation, the speed is not
displayed as continuous values; some values are skipped.
Example: 0, 1, 2, , 4, 5, 6, 7, 8, 9, , 10, 11...
• Speeds up to 1,999 r/min can be displayed. Note that 1,999 r/min
will remain displayed until the error code E21 appears even if the
actual speed is 2,000 r/min or higher.
(Use the Cam Positioner at a speed slower than the maximum
response speed.)
RUN
RUN
[ON↑ ↓OFF] key
Pressed for at least
one second
Main display (red): Present angular position
Sub-display (green): Speed (r/min)
Main display (red): Speed (r/min)
Sub-display (green): Present angular position
