Omron H8PS User Manual

2.1 Designing the System
2-5
INSTALLATION
2.1.2 Selecting the Output Cable
■ Model H8PS-8 (8-output model)
The cam outputs of 8-output model cam positioners are output from
the M3.5 terminal block of the cam positioner unit.
No dedicated cable is provided, so the user should prepare the output
cable.
■ Models H8PS-16 (16-output model) and H8PS-32 (32-output
model)
With these models of cam positioner, cam outputs are output from the
connector.
The two types of dedicated cables explained below are available and
you should choose the one that suits your application.
For the terminal arrangement of the connector, refer to "2.4.2 Terminal
Arrangement".

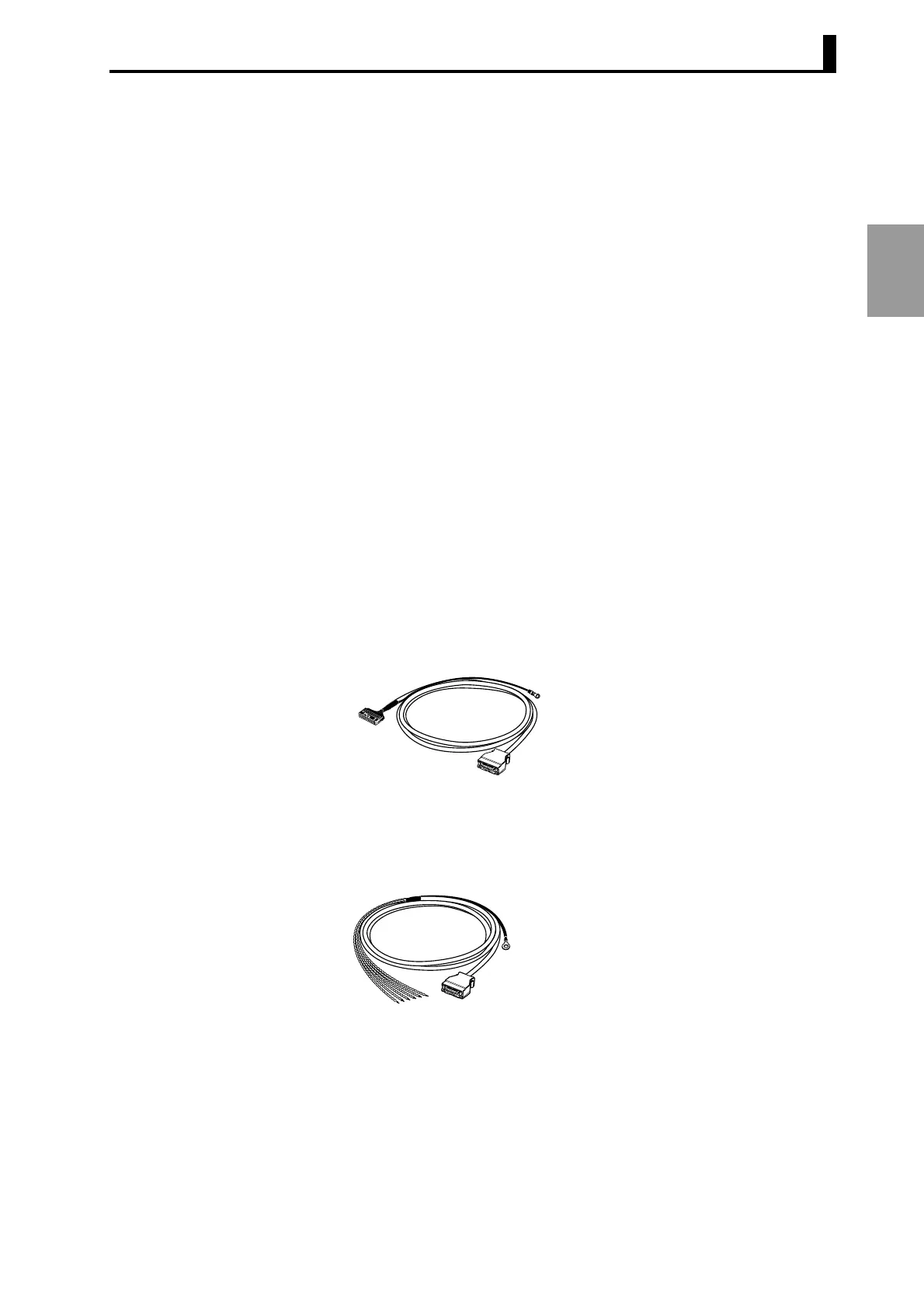

● Connector-type
Output Cable
(E5ZE-CBL200)
The cable length is approximately 2 m.
Using this type of cable, terminal blocks (XW2D, etc.) can be
connected directly.
● Discrete Wire
Output Cable
(Y92S-41-200)
The cable length is approximately 2 m.
One end of the cable is discrete wires so that the wires can be treated
appropriately according to the application.
