Section 2 INSTALLATION
2-22
INSTALLATION
2.3.4 Parallel Input Adapters (Order Separately)
■ Y92C-30
This Adapter enables two H8PS Cam Positioners to share signals from an Encoder.
When connecting only one Positioner to the Parallel Operation Adapter, connect the cable with the
mark.
■ Precautions for Correct Use
Starting in April 2004, H8PS Cam Positioners have been functionally improved to support high-
resolution encoders as given below.
Previous H8PS Cam Positioners: The encoder input resolution was 256.
New H8PS Cam Positioners: The encoder input resolution can be 256, 360, or 720.
You cannot use the previous and new Cam Positioners together with a Y92C-30 Parallel Input Adapter
for parallel operation. If you perform parallel operation, do not combine different types of H8PS Cam
Positioners.

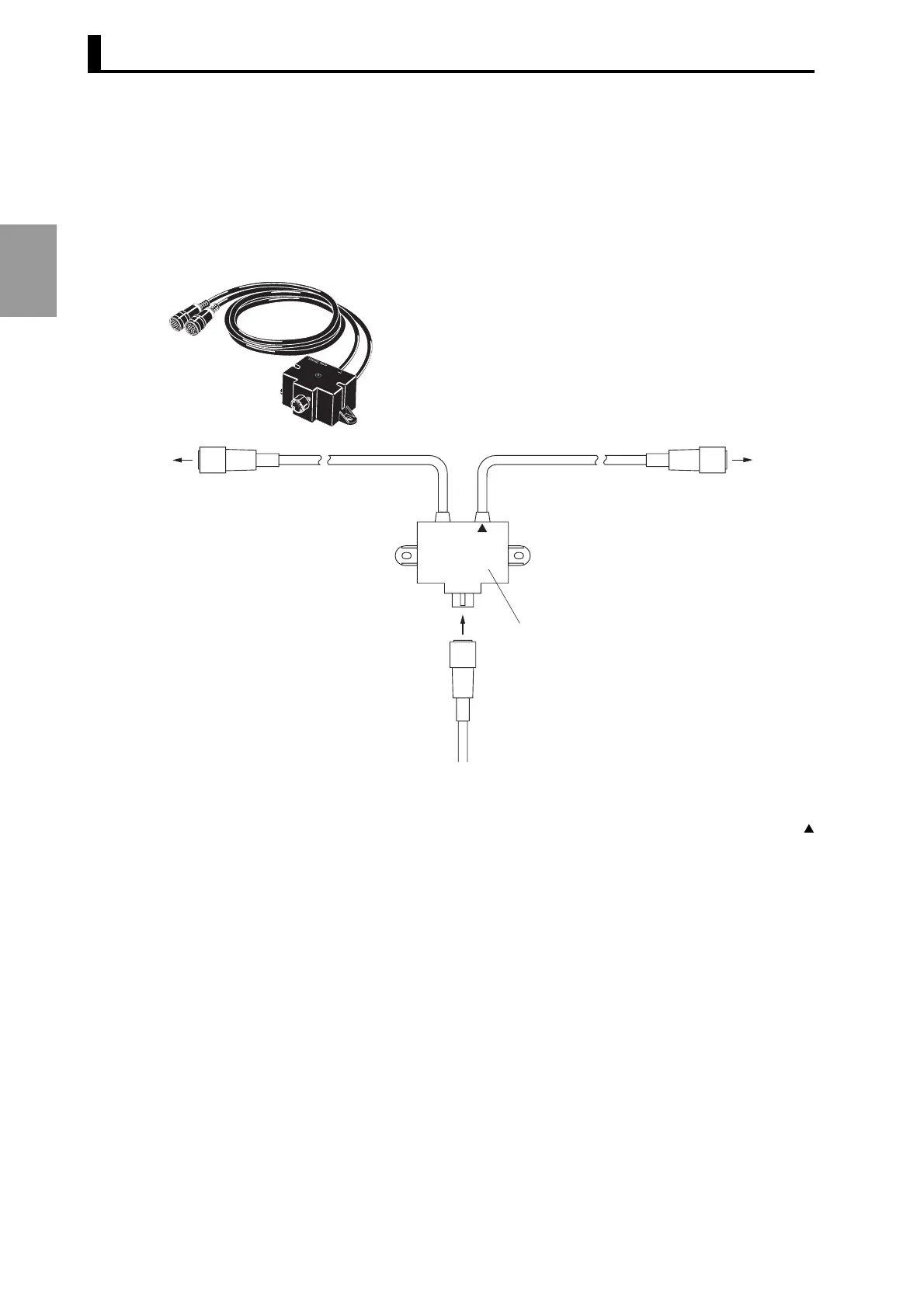

Connected to the H8PS
Connected to the H8PS
Y92C-30
From the Dedicated Absolute Encoder
