Section 4 HOW TO USE THE ADVANCED FUNCTIONS
4-6
HOW TO USE THE
ADVANCED FUNCTIONS
■ Advance Timing Refreshing Period
200 ms
This is the time taken for one cycle, i.e. "measuring the speed/calcu-
lating the ADV value/making the output effective".
■ Precautions on Using the Advance Angle Compensation Function
● Maximum amount
of angle
compensation

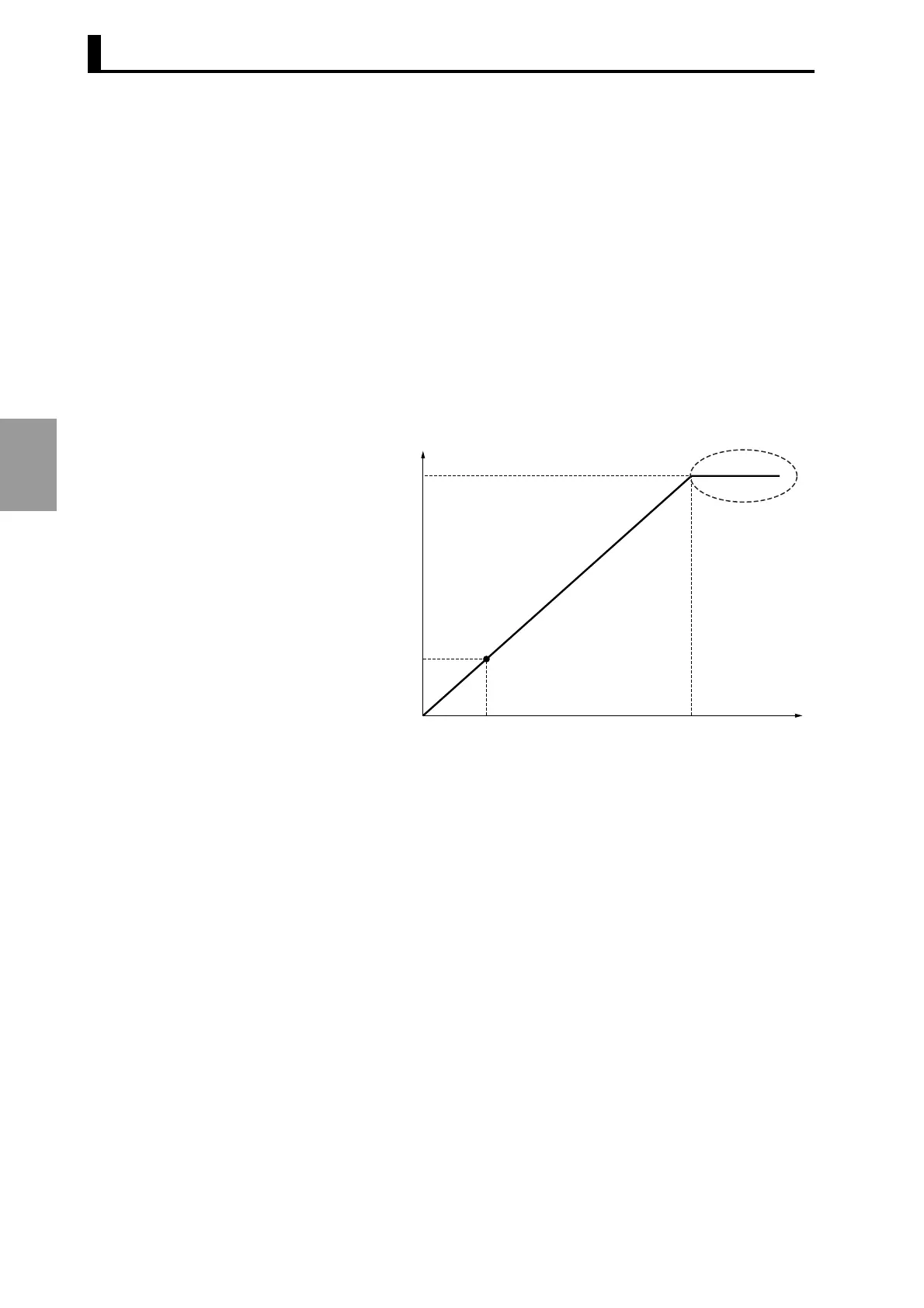

In some cases the calculated amount of angle compensation may
exceed 360° depending on the setting. In these cases the amount of
angle compensation is clamped at 360° as shown in the figure below.
Take this into consideration and set an ADV value appropriate for the
speed in actual operation.
100 9000
Speed (r/min)
ADV value
40°
360°
