Omron H8PS User Manual

Section 4 HOW TO USE THE ADVANCED FUNCTIONS
4-10
HOW TO USE THE
ADVANCED FUNCTIONS
■ Clearing the ADV Function Setting
Setting "---" for either the speed or ADV value disables the ADV
function setting for that cam, which effectively means that the ADV
function setting is cleared.
Although the ADV function is disabled if "0" is set for the ADV value,
the cam concerned is included in the "number of cams with the ADV
function", which affects the maximum response speed.
Note that the ADV function setting is not cleared even if the target cam
program is cleared using the [CLEAR] key.
(Refer to "3.8 Clearing the Settings".)
■ Relationship between the Speed Alarm (upper limit) and the ADV
Function
With an 8-output model, cam 7 may be allocated to the speed alarm
(upper limit).
Although ADV function setting is still allowed under these circum-
stances, the actual operation of the output is the speed alarm (upper
limit).

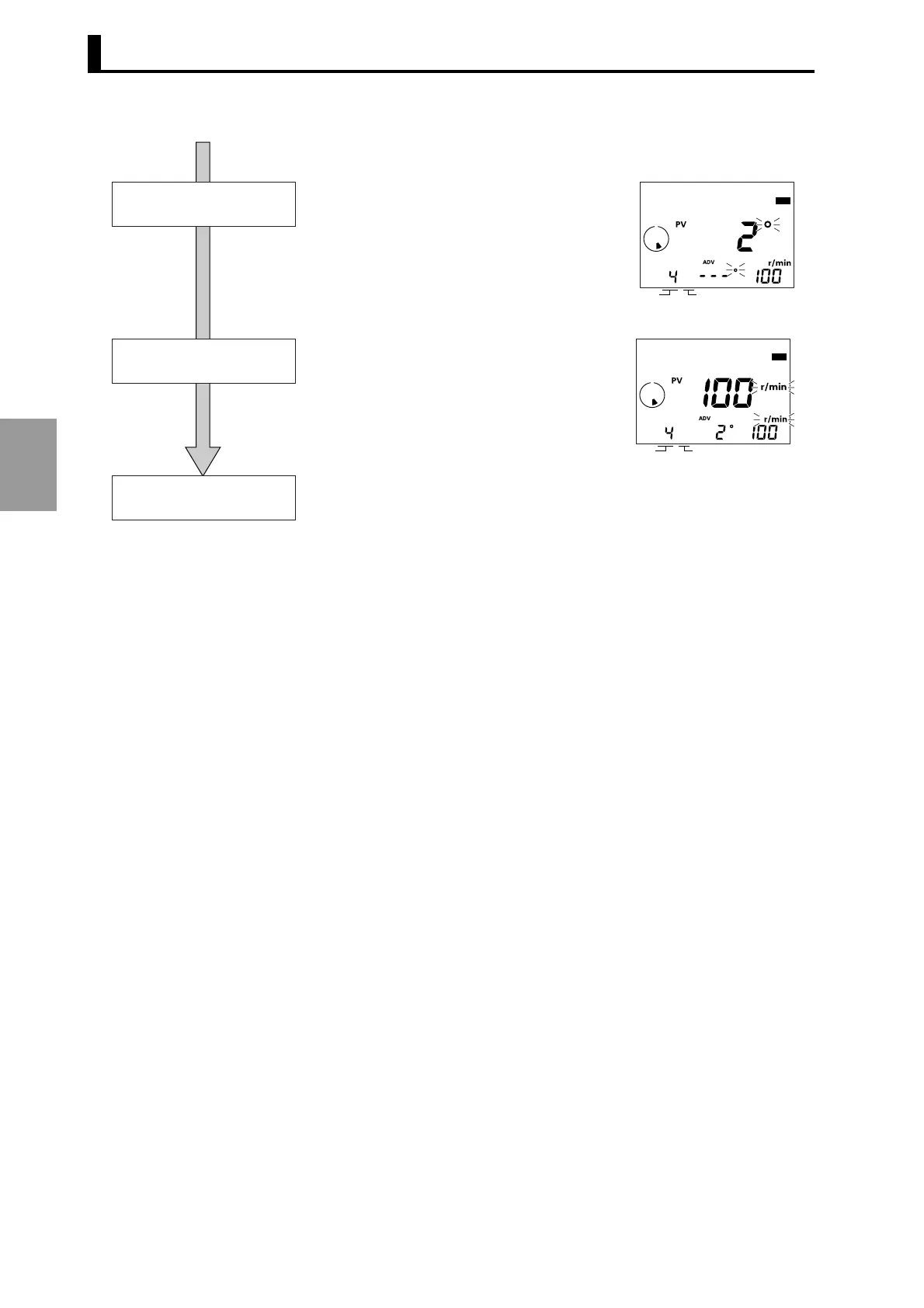

Setting the ADV value
Press the [+] or [−] key of the ANGLE keys (*) to
set the desired ADV value (2°, in this example).
(Make sure that "2°" is displayed in Sub-
display (left).)
The ADV function setting for the designated
cam is complete when a value other than "---"
or "0" is entered in both fields in Sub-display.
Determining the set
ADV value
Press the [ADV] key after finishing the ADV
function setting to return to the previous
screen.
To continue ADV function setting for other
cams, repeat the setting procedure explained
above from the cam No. designation step.
Returning to the previous screen
CAM
STEP
TST
CAM
STEP
TST
* When setting the ADV value by holding the [+] or [−]
key down to change the displayed value quickly, the
displayed value changes more quickly if the other
key is pressed.
