3-5
APPLICATION
EXAMPLES
Parameter Setting • The scaling is set as follows.
INP1: 4.00
DSP1: 0
INP2: 20.00
DSP2: 9800
Position of decimal point: \\\\.\
• Comparative output 1 is used to generate an upper-limit signal action and the
OUT upper-limit value is set to "550.0 kPa".
• Comparative output 2 is used to generate a lower-limit signal action and the OUT
lower-limit value is set to "100.0 kPa".
For details of parameters, refer to "CHAPTER 5 OPERATION".

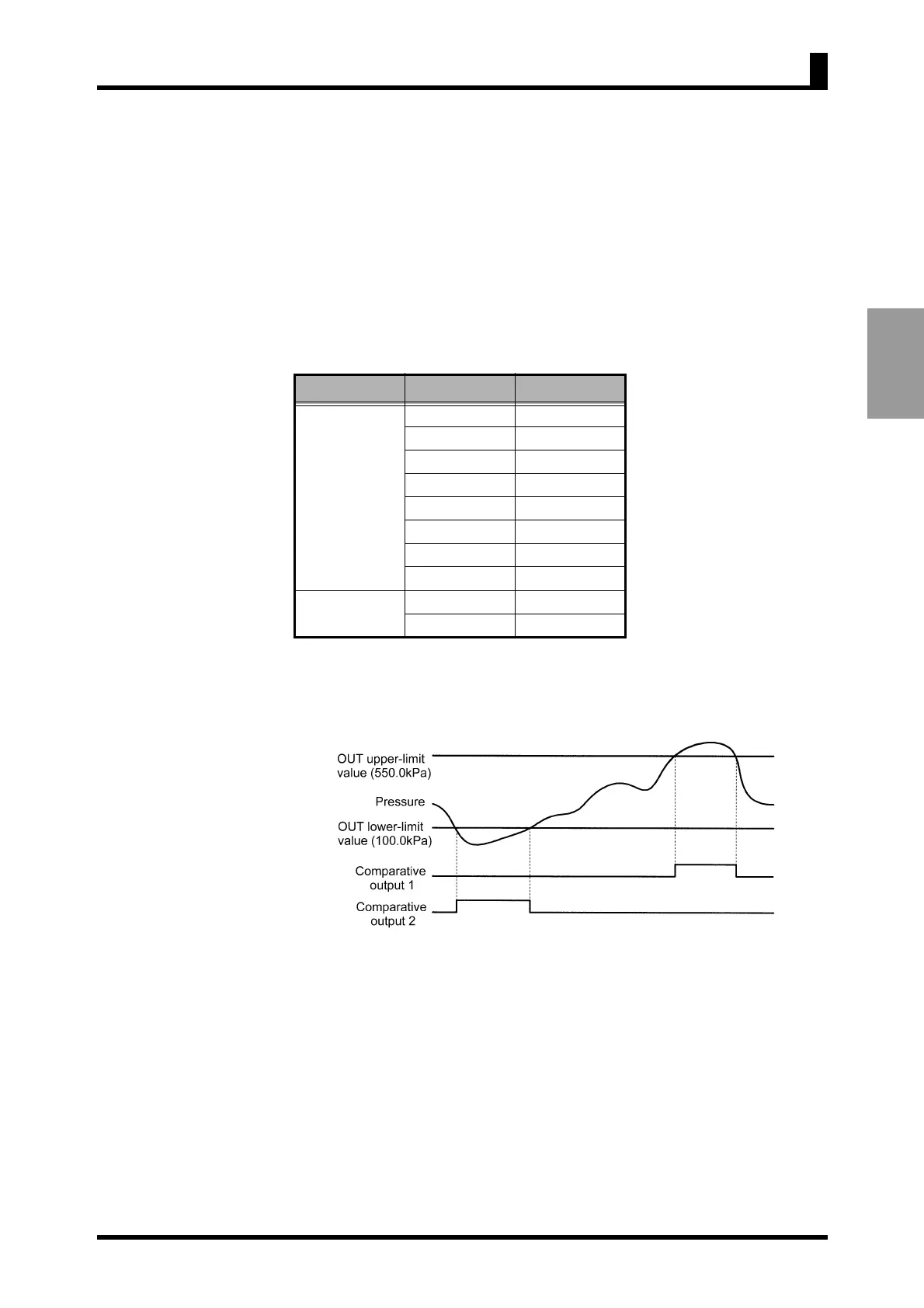

Operation
• When the internal pressure of the tank reaches 550.0 kPa, comparative output 1
is turned ON.
• When the internal pressure decreases to 100.0 kPa, comparative output 2 is
turned ON.
Level Parameter Set value
Initial setting
in-t 4-20
inp.1 4.00
dsp.1 0
inp.2 20.00
dsp.2 9800
dp \\\\.\
out1.t hi
out2.t lo
Operation
setting
out1 550.0
out2 100.0
3-2 Monitoring the Internal Pressure of a Tank (K3MA-J)
To Next Page
