2-5
INSTALLATION AND
CONNECTION

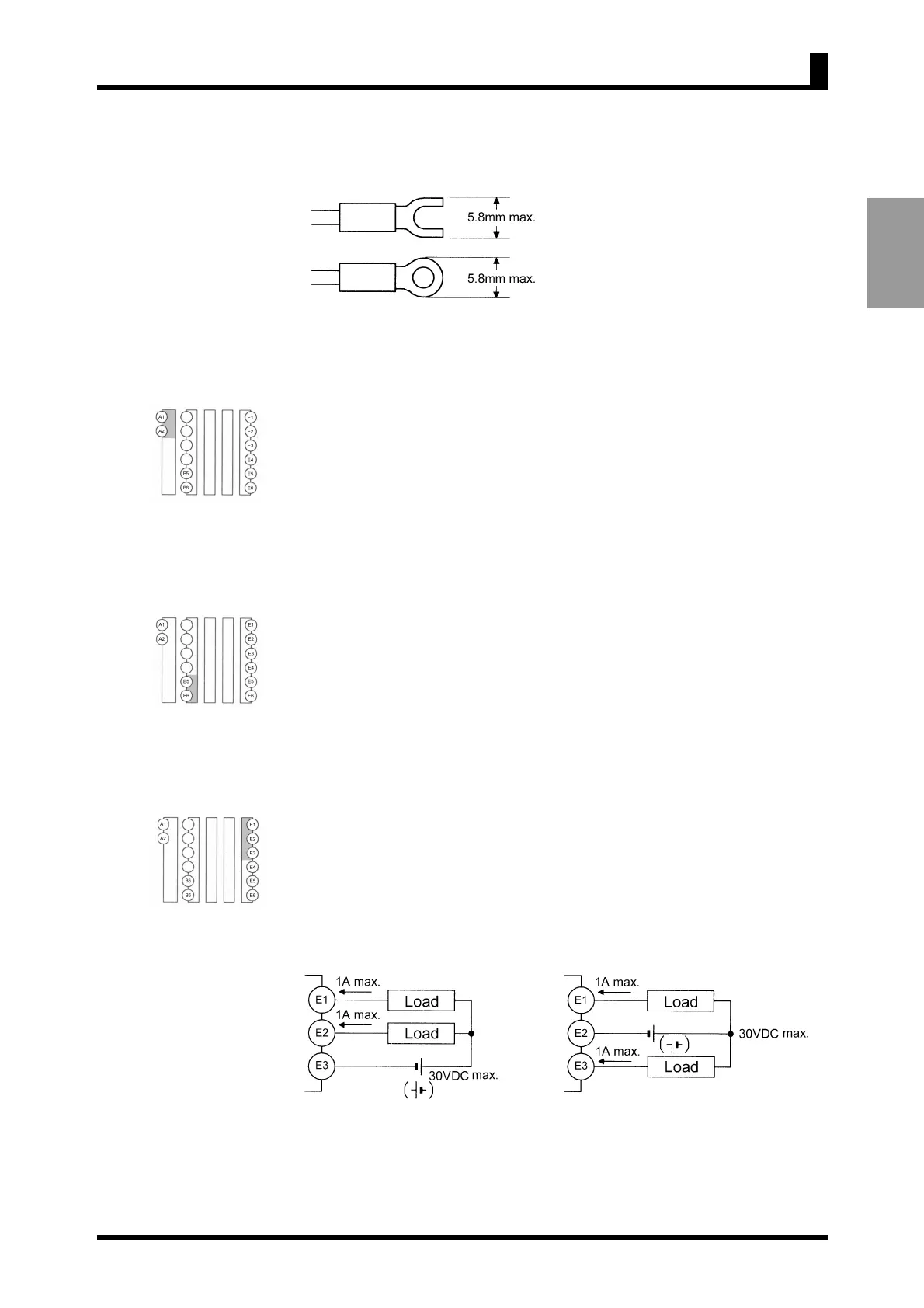

Terminal Connection
Use crimp contact type terminals as shown below.
Power Supply
Connect the following power supply to terminals A1 and A2.
100-240 VAC 50/60 Hz 6 VA
24 VAC/DC 50/60 Hz 4.5 VA / 4.5 W (Non-polar)
Note that, when turned on, the product will require the operation power supply to have
more supply capacity than rated. If multiple products are used, the power supply must
be able to afford to supply power to the products.
Sensor Power Supply (Only K3MA-F)
The following sensor power supply can be supplied from terminals B5 and B6.
12 V DC (±10%) 0 to 40 mA
Comparative Output
Comparative output is output to terminals E1-E3.
Configuration of contact point is as follows.
K3MA-J-A2/K3MA-F-A2: 1a × 2
K3MA-L-C: 1c
Connect load within specifications.
The electrical life of the relay is 100,000 times.
K3MA-J-A2/K3MA-F-A2
K3MA-L-C
2-2 I/O Terminal Connections
