6-3
FUNCTION
DESCRIPTION
dsp: Process value corresponding to inp

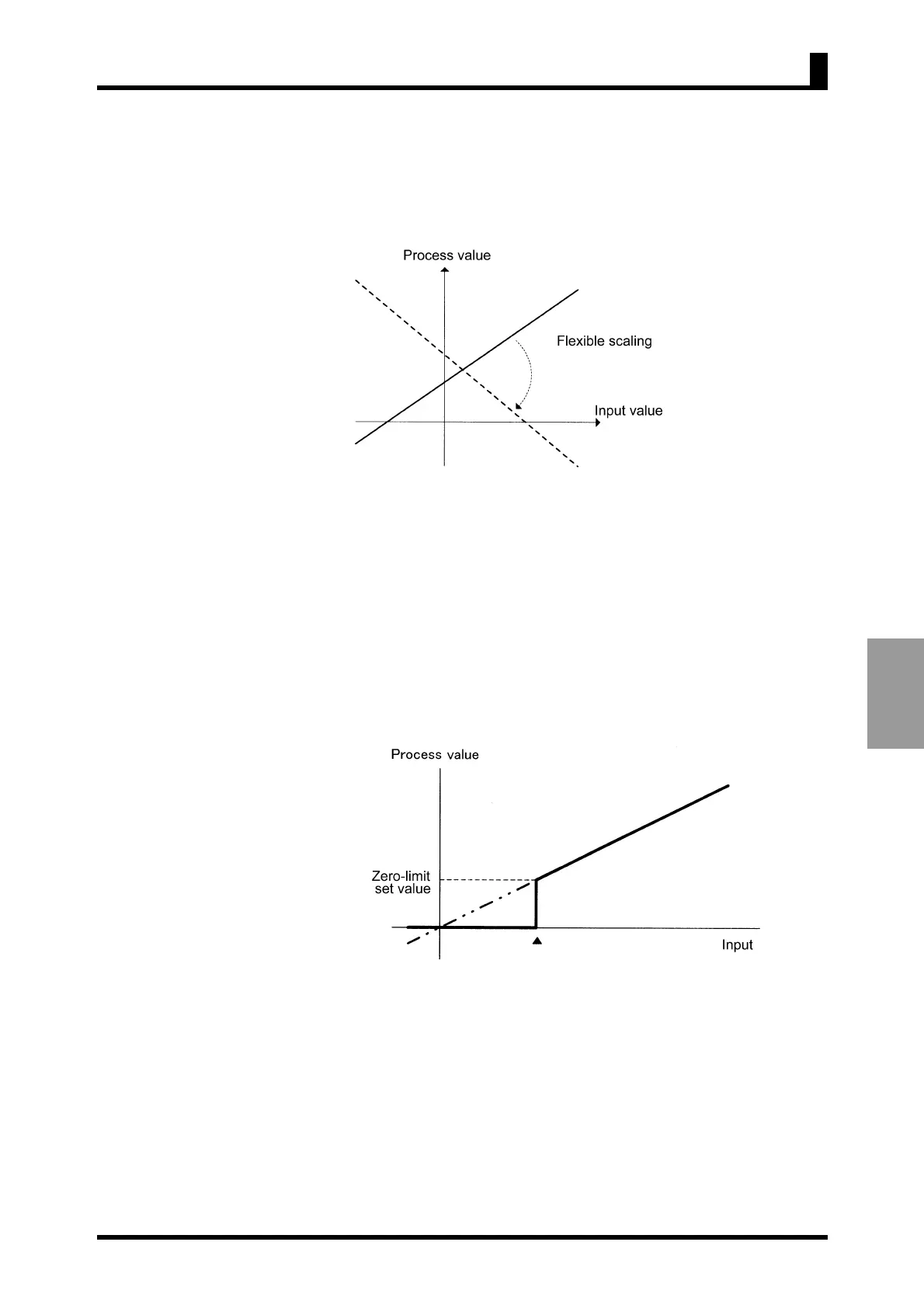

Enter INP1, DSP1, INP2 and DSP2 to specify the scaling factor.
This way of specifying the scaling factor permits flexible scaling; inverse scaling
where the process value decreases with the increasing input value is also possible.
* For details on how to specify the scaling factor, refer to "5-12 Specifying the
Scaling Factor (K3MA-J)".
Zero-limit
The zero-limit is a function to display all the readouts lower than a predetermined
value as zero.
This is useful when you want to display a minus numerical value as zero or display a
value in the vicinity of the minimum of input range as zero.
Digits of 00 to 99 can be set.
6-1 Measurement (K3MA-J)
