6-2 Measurement (K3MA-L)
6-2 Measurement (K3MA-L)
Temperature Input
K3MA-L operates as a Temperature meter.
Measurements are made as follows.

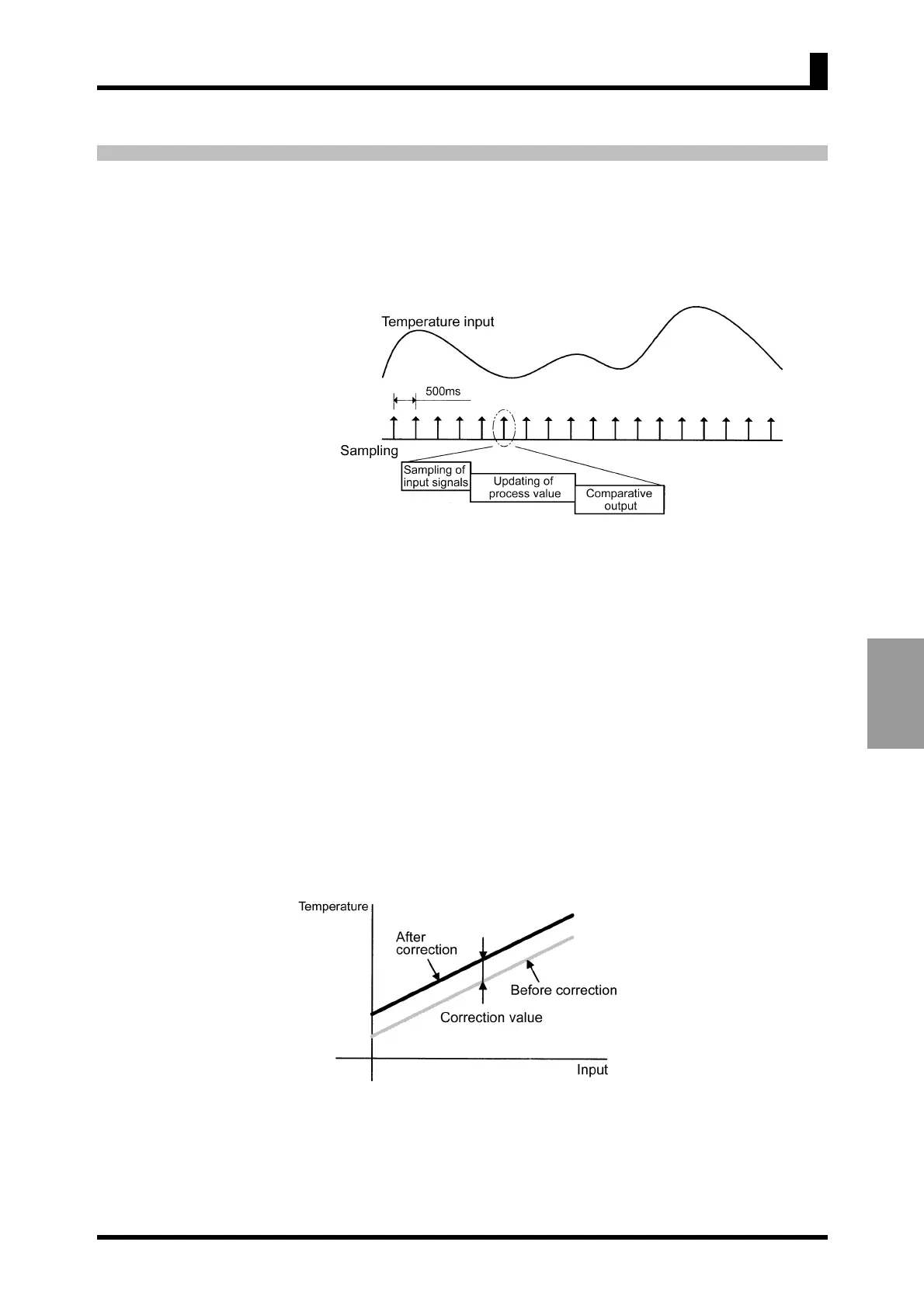

• Input signals are sampled in synchronization with internal timings generated at
intervals of 500 ms.
• The input signal is scaled according to the sensor type and converted into tem-
perature, and the process value is updated. The updated process value is dis-
played on the main indicator.
• Comparative output is provided based on the process value.
• The process value and comparative output are updated per sampling.
Temperature Input Correction
The input temperature is corrected by the quantity of the set value of "temperature
input correction value" at all points in the whole sensor range.
If the correction value is 1.2 °C, the current value of 200 °C before correction will be
processed as 201.2 °C after correction.
