OPERATION
Initial setting level
The decimal point position of
parameter "inp" is
automatically illuminated
depending on the set value of
input-pulse frequency range
as follows.
30 Hz: ,,,.,,
5 kHz: ,,,,,
To convert a frequency into a
revolution speed or a
peripheral velocity, use the
following equation.
Revolution speed = f×60÷P
(rpm)
Peripheral velocity =
f×60÷P×R×π
(m/min)
f: Frequency(Hz)
P: Number of pulses per
rotation
R: Diameter of rotor (m)

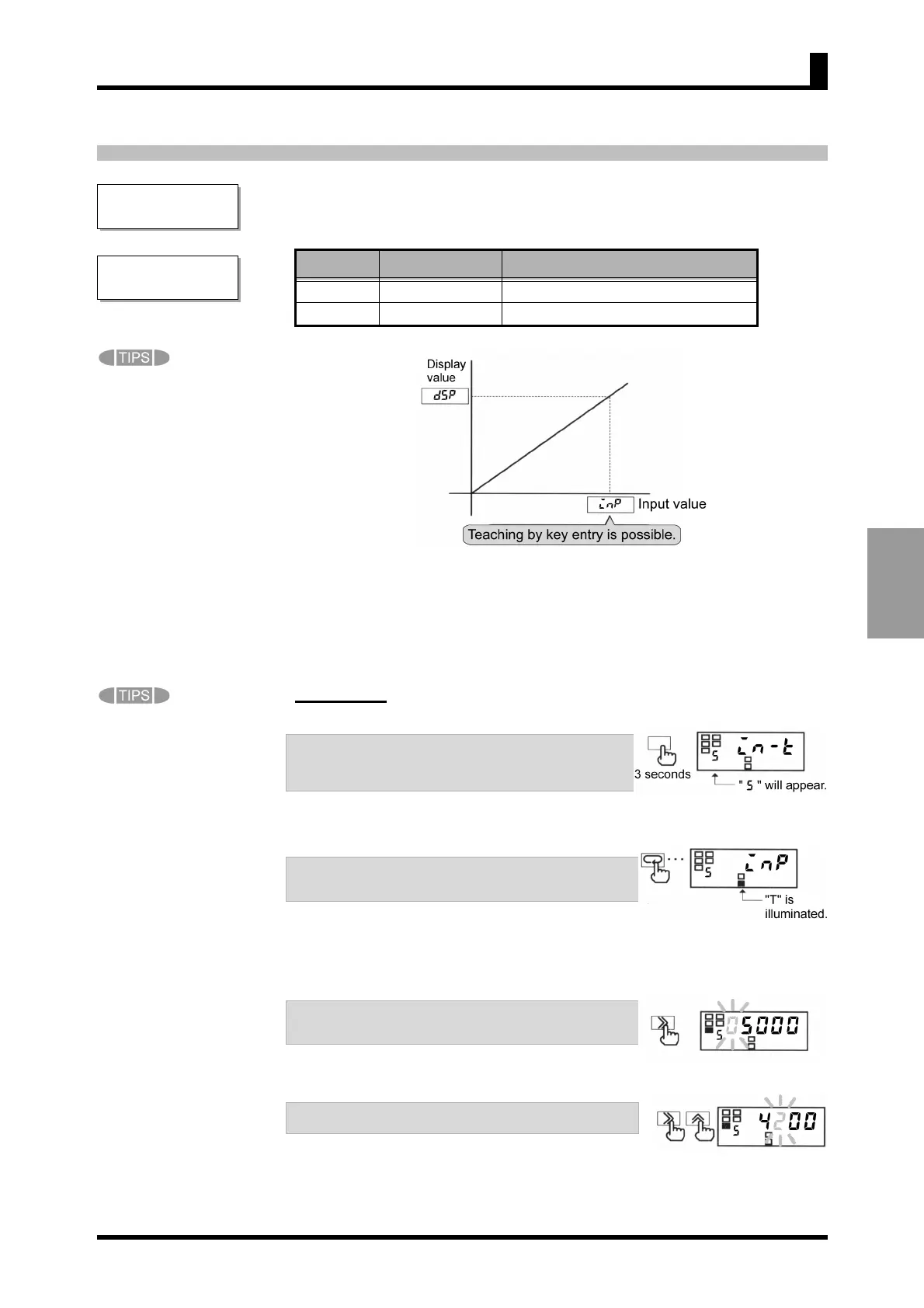

5-13 Specifying the Scaling Factor (K3MA-F)
5-13 Specifying the Scaling Factor
(K3MA-F)
These parameters allow you to specify the scaling factor when you want to cause the
product to display a desired value converted from the input value
For the calculation of scaling, refer to "6-3 Measurement (K3MA-F)".
To allow a readout of 10.000 when the input value is 4.2 kHz (= 4200 Hz), for
example, set the parameters as follows.
- inp = 4200
- dsp = 10000
Specify the decimal point position of the display value with parameter "dp".
Procedure
A. When the product is at the operation level, press
the L key and hold it down for at least three
seconds to enter the initial setting level.
•"
5
" will appear on the level indicator, indicating
the product has entered the initial setting level.
B. Press the M key several times until the
parameter "inp" appears on the main indicator.
• "T" will be illuminated, indicating teaching of
this parameter (scaling input value) is possible.
• For the procedure of teaching, refer to the next
page.
C. Press the S key to display the set value of the
parameter on the main indicator.
• The current set value of scaling input value will
appear on the main indicator.
D. Press the S key again.
• The current set value starts blinking, indicating
the product is in the change state.
Parameter Set value
Description
inp 0-99999 Input value corresponding to dsp.
dsp
:9999-99999 Readout corresponding to inp.
To Next Page
