5-18
OPERATION
CHAPTER 5 OPERATION

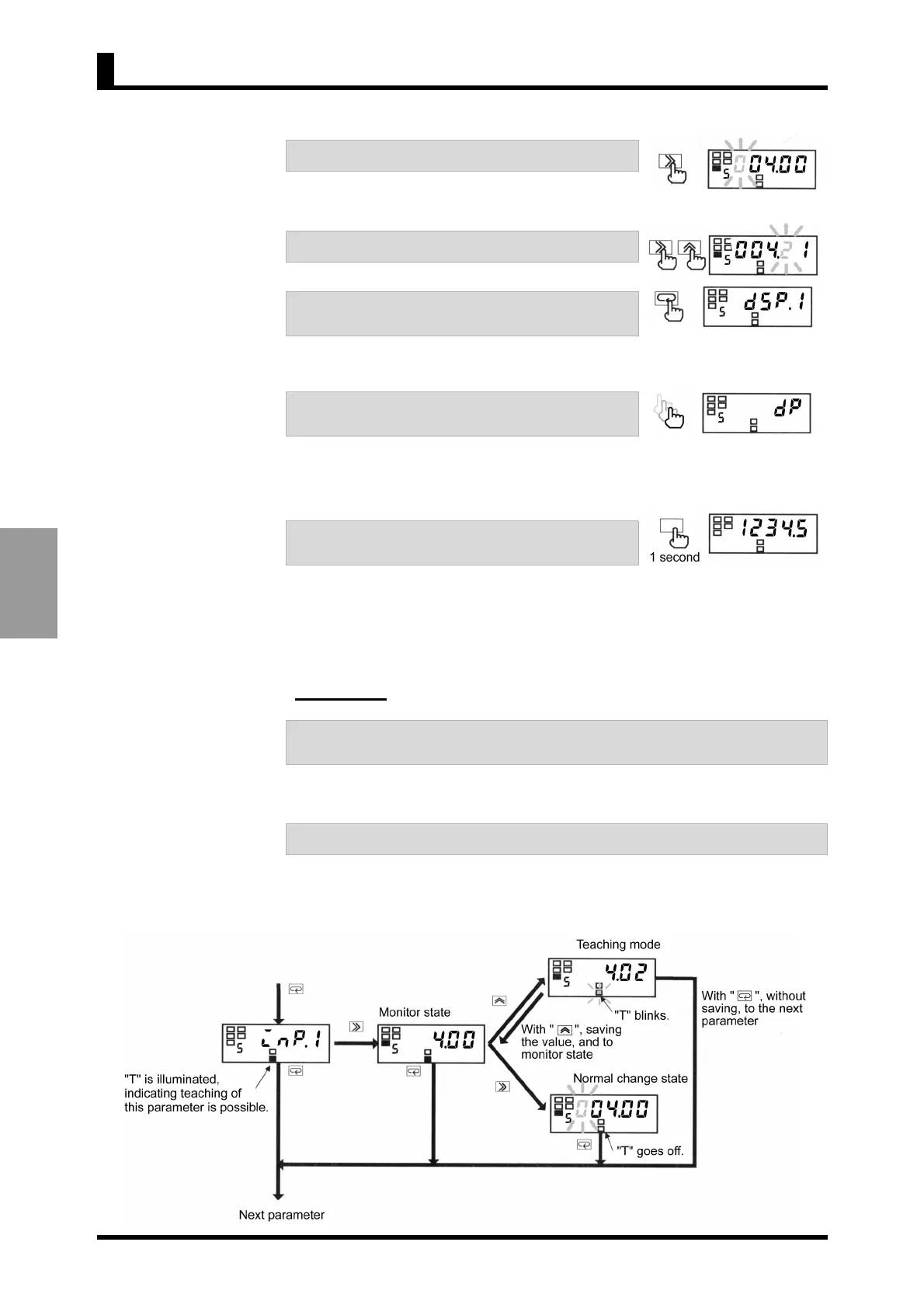

D. Press the S key again.
• The current set value starts blinking, indicating
the product is in the change state.
E. Use the S and U keys to change the set value.
F. Press the M key to go to the next parameter
"dsp.1".
• The change in setting is saved and "
dsp.1
" will
appear on the main indicator.
G. Repeat the operations of C. to F. to set the
parameters "dsp.1", "inp.2", and "dsp.2".
• When the parameter "dsp.2" has been set, the
next parameter "
dp" will appear on the main
indicator.
H. Press the L key and hold it down for at least
one second to return to the operation level.
Teaching scaling The teaching function allows you to specify the value of parameters "inp.1" and
"inp.2" also by key entry.
Procedure
I. The operation of C. causes the product to enter the monitor state. In the monitor
state, press the S key instead of the operation of
D..
• "T" will start blinking, indicating the product is in teaching mode.
• Key entry permits the actual process value to be displayed on the main indicator.
J. Press the U key again.
• The actual process value is set as the input value and then the product will
return to the monitor state.
• Pressing the M key instead of the U key in teaching mode cancels the teach-
ing mode and the display on the main indicator changes to the next parameter.
To Next Page
