3-7
APPLICATION
EXAMPLES
Parameter Setting • The input type is set to 16 (R element).
• The unit of temperature is set to "°C".
• Comparative output 1 is used as outside-the-range signal action, and the OUT
upper-limit value is set to "1000°C" and the OUT lower-limit value is set to
"800°C".
For details of parameters, refer to "CHAPTER 5 OPERATION".

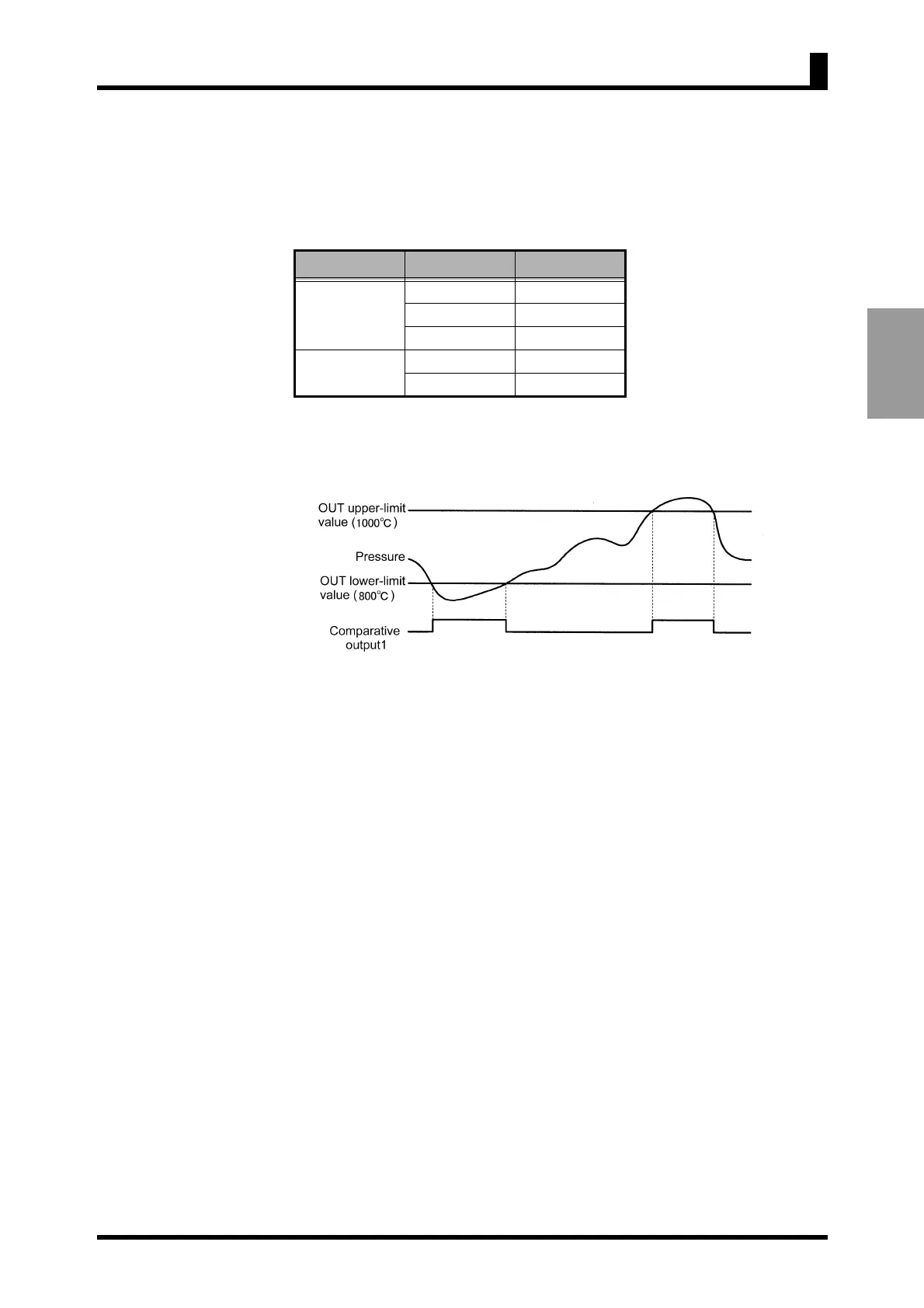

Operation
• When the internal temperature reaches 1000 °C or lower than 800 °C, compara-
tive output 1 is turned ON.
Level Parameter Set value
Initial setting
in-t 16
d-u c
out1.t hi-lo
Operation
setting
out1.h 1000
out1.l 800
3-3 Monitoring the Temperature of an Industrial Furnace (K3MA-L)
To Next Page
