5-29
OPERA
TION

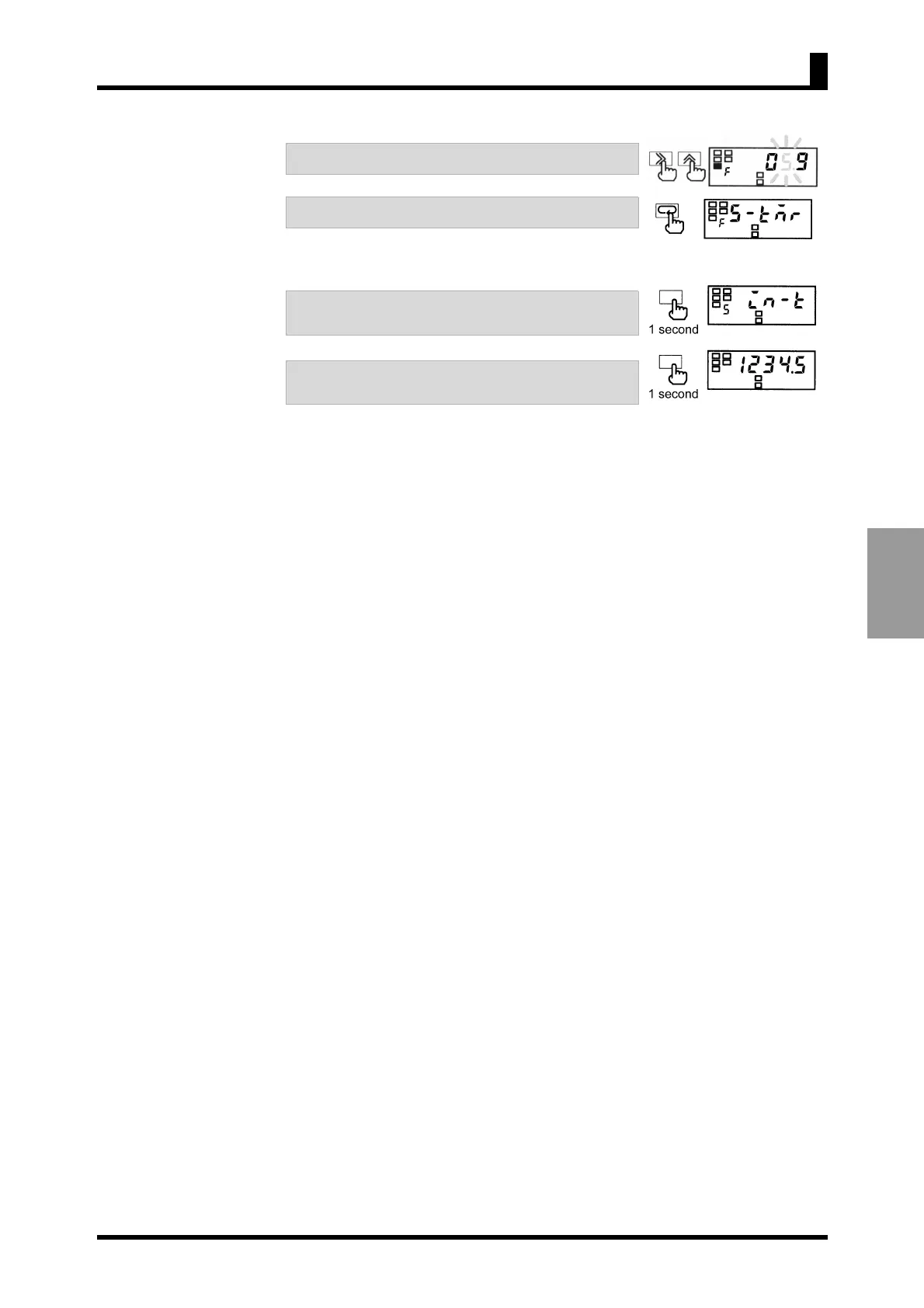

5-20 Specifying the Auto-
zero Time (K3MA-F)
F.
Use the
S
and
U
keys to change the set value.
G.
Press the
M
key to go to the next param
eter
.
•
The change is saved and the next parameter will
appear on the main indicator
.
H.
Press the
L
key and hold it down for at least
one second to return to the init
ial setting level.
I.
Press the
L
key and hold it down for at least
one second to return to the operation
level.
74
76
Table of Contents
Default Chapter
3
General Precautions
3
Preface
3
Safety Precautions
6
Notice
7
Alphabetic Characters for Setting Data
10
Table of Contents
11
Chapter 1 Introduction
13
Main Features of the K3MA
14
Model Number Legend
16
I/O Circuit
17
Parts Name and Function
19
Chapter 2 Installation and Connection
21
Installation
22
Installation Procedure
23
I/O Terminal Connections
24
Power Supply
25
Chapter 3 Application Examples
28
Monitoring the Liquid Level (K3MA-J)
28
Monitoring the Internal Pressure of a Tank (K3MA-J)
30
Monitoring the Temperature of an Industrial Furnace (K3MA-L)
32
Monitoring the Feed Speed of a Conveyer (K3MA-F)
34
Monitoring the Rotational Speed by Monitor Output of an Inverter (K3MA-F)
36
Chapter 4 Initial Setting
39
K3MA-J (Process Meter)
40
K3MA-L (Temperature Meter)
42
K3MA-F (Frequency/Rate Meter)
44
Chapter 5 Operation
47
Levels
48
Moving Among Levels
49
Parameters
51
Set Values
52
Viewing and Changing out Set Values
53
Setting/Releasing the Forced-Zero Operation (K3MA-J)
55
Displaying/Resetting the MAX/MIN Value
56
Specifying the Temperature Input Correction Value (K3MA-L)
57
Key Protect Setting
58
Selecting an Input Type (K3MA-J/K3MA-L)
60
Selecting an Input-Pulse Frequency (K3MA-F)
62
Specifying the Scaling Factor (K3MA-J)
63
Specifying the Scaling Factor (K3MA-F)
65
Specifying the Decimal Point Position (K3MA-J/K3MA-F)
68
Specifying the Temperature Unit (K3MA-L)
69
Selecting a Comparative Output
70
Clearing All Parameters
71
Specifying the Number of Measurements for Averaging
72
Specifying the Hysteresis
73
Specifying the Auto-Zero Time (K3MA-F)
74
Specifying the Start-Up Compensation Time (K3MA-F)
76
Specifying the Zero-Limit (K3MA-J)
77
Changing the Display Color
79
Changing the Display Auto-Return Time
80
Changing the Move-To-Protect-Level Time
81
Chapter 6 Function Description
84
Measurement (K3MA-J)
84
Measurement (K3MA-J)
85
Measurement (K3MA-L)
87
Measurement (K3MA-F)
88
Average Processing
92
Comparative Output
93
Hysteresis
94
Display Color Change
95
Chapter 7 Troubleshooting Guide
97
Indication of Error
98
Troubleshooting Table
99
Appendix
101
Specifications
102
Parameter List
105
