55
Refer to 6-1 Teaching Function.
Follow the steps described below to input the following.
Operating mode = F1
Prescaling bank = OFF
Prescaling value X (mantissa) of input A = 0.5000
Prescaling value Y (exponent) of input A = –1
Decimal point = jjjj.j (1st digit from the right)
Set Value LED Display Model Basic Model

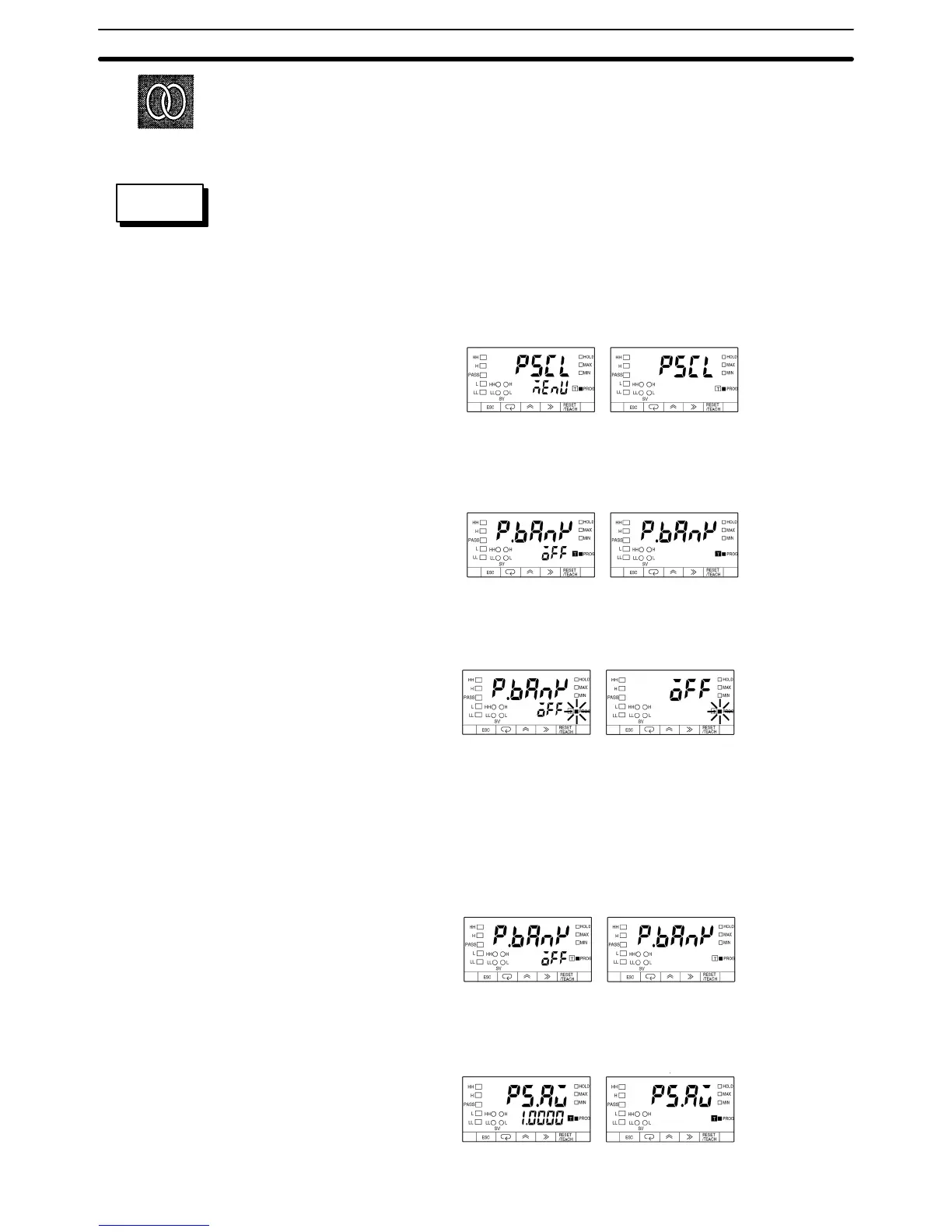

1, 2, 3... 1. Press the Mode Key for more than one second while the pscl prescaling
menu is displayed. The p.bank prescaling bank setting will be displayed.
Set Value LED Display Model Basic Model
2. Press the Shift Key to display off for changing. The PROG indicator will
flash.
Set Value LED Display Model Basic Model
3. Press the Up Key to change the prescaling bank setting. The input will be
validated automatically if no change is made for five seconds. The p.bank
prescaling bank setting will be displayed again.
Note Press the Mode Key to enter the set value immediately. The ps.ax
prescaling value X (mantissa) of input A setting will be displayed for
setting the next parameter.
Set Value LED Display Model Basic Model
4. Press the Mode Key to display the ps.ax prescaling value X (mantissa) of
input A setting.
Set Value LED Display Model Basic Model
REFERENCE
SETTING
EXAMPLE
Setting Mode
Section 4-2
To Next Page
